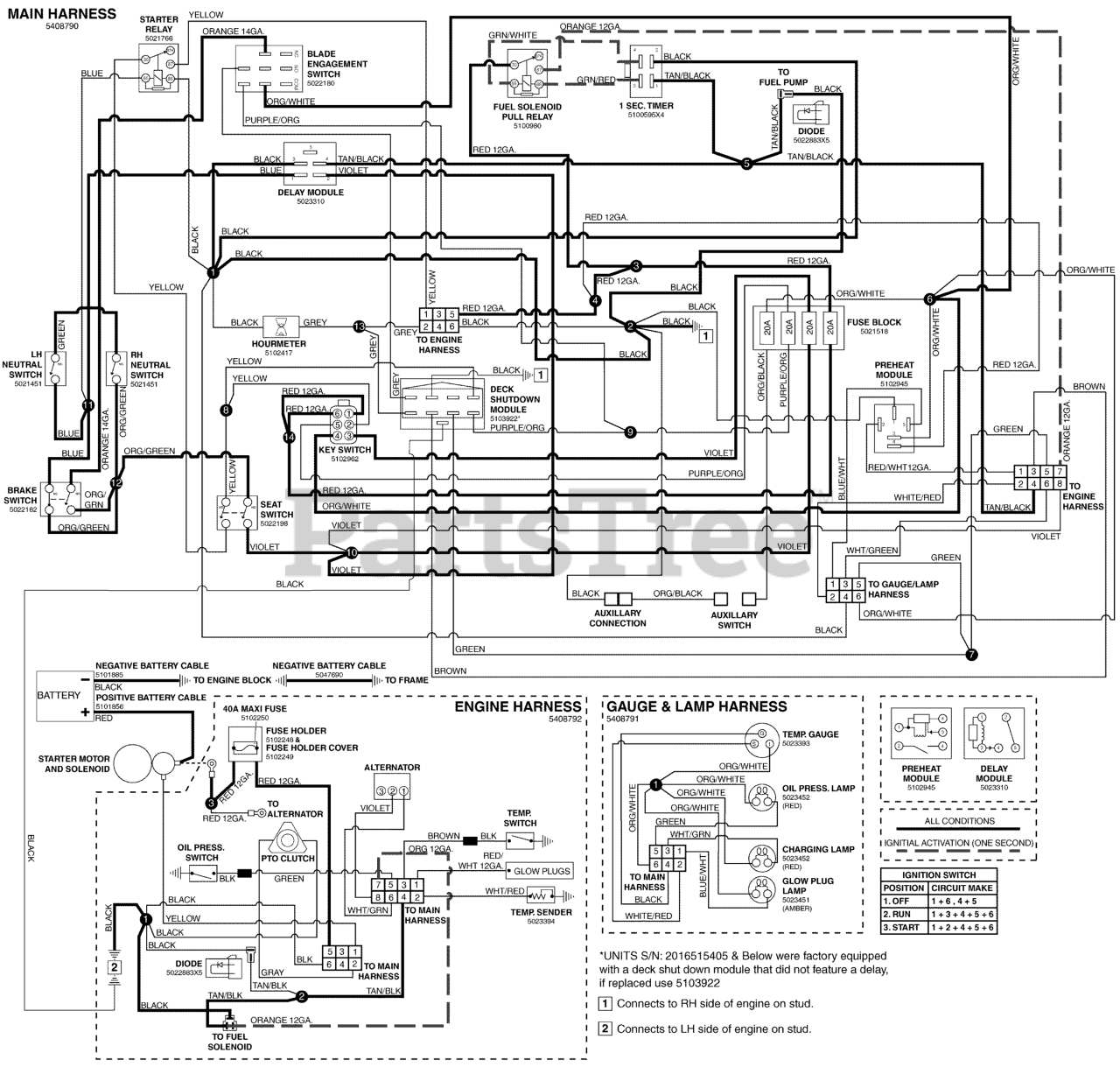

IS 2500Z (5901295) - Ferris IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge Electrical Schematic - Operator Pres./Safety Circuit Parts Diagram

IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

Electrical Schematic - Operator Pres./Safety Circuit Parts Diagram

  • Title
