IS 2500Z (5900993) - Ferris IS2500Z Series 52" Zero-Turn Mower, 24hp Yanmar, Side-Discharge 52" Mower Deck - Housing, Covers, Spindles & Blades (Side Discharge European Export) Parts Diagram

IS2500Z Series 52" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

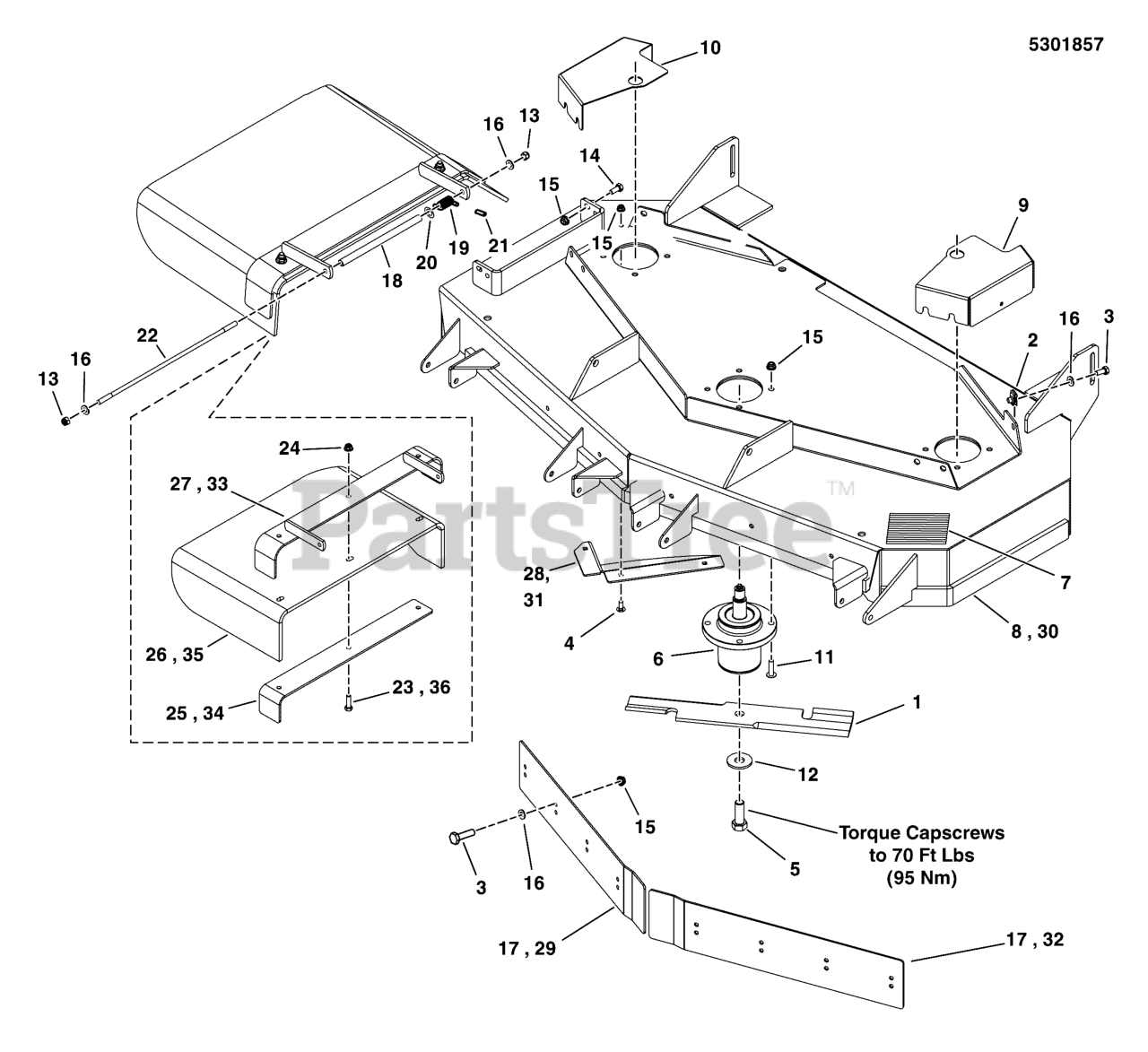

52" Mower Deck - Housing, Covers, Spindles & Blades (Side Discharge European Export) Parts Diagram

  • Title

1

Ferris 5021227S

BLADE, 18, SET OF 3

$80.99

$

Usually ships in 2-12 days

0

2

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

3

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

4

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

5

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer Sold Seperately)

$231.99

$

Usually ships in 2-12 days

0

7

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

In Stock, only 1 left!

0

8

Ferris 5600391

DECK SHELL W/ DECALS (5405562B)

Note: (Model 5900783 Only)

$2308.99

$

Usually ships in 2-12 days

0

9

Ferris 5401605B

GUARD, 52" DECK, IS2000 - LH - RED
(Superseded to 5401605BFS)

$27.99

$

In Stock, only 1 left!

0

10

Ferris 5401606B

GUARD, 52" DECK, IS2000 - RH - RED

$22.99

$

Usually ships in 2-12 days

0

11

Ferris 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

12

Ferris 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

13

Ferris 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

14

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

17

Ferris 5402476A

BAFFLES. FRONT DISCHARGE, 52 YAN - BLK

Note: (Model 5900783 Only)

$37.99

$

Usually ships in 2-12 days

0

18

Ferris 5050086X8

TUBE, 1/2 X 3/8 BLACK POLY, 8.00 LG
(Superseded to 5050086X8SM)

$8.99

$

Usually ships in 2-12 days

0

19

Ferris 5023385

SPRING, TORSION
(Superseded to 5023385SM)

$8.49

$

Usually ships in 2-12 days

0

20

Ferris 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

21

Ferris 5023489

CAP, PROTECTOR, .120 ID
(Superseded to 5023489SM)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 5042555

ROD, 5/16 X 13.75, TBE
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

23

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

Note: (S/N: 2017100600 & Below)

$3.99

$

Usually ships in 2-12 days

0

24

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

25

Ferris 5402362A

SUPPORT, DISCHARGE CHUTE, 44/48/52 - BLK
(Superseded to 5402362AFS)

Note: (S/N: 2017100600 & Below)

$35.99

$

Usually ships in 2-12 days

0

26

Ferris 5402404

CHUTE, DISCHARGE, RUBBER, 44/48/52
(Superseded to 5402404FS)

Note: (S/N: 2017100600 & Below)

$148.99

$

Usually ships in 2-12 days

0

27

Ferris 5413404A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413404AAFS)

Note: (S/N: 2017100600 & Below)

$50.99

$

In Stock, only 1 left!

0

28

Ferris 5403548A

PLATE, DEFLECTOR, 52"- BLK

Note: (Model 5900783 Only)

$19.99

$

Usually ships in 2-12 days

0

29

Ferris 5406205B

BAFFLE, FRONT DISCHARGE - RH

Note: (Model 5900993 Only)

$39.99

$

Usually ships in 2-12 days

0

30

Ferris 5600686

DECK SHELL W/DECALS, 52, SDCE (5407538B)

Note: (Model 5900993 Only)

$2308.99

$

Usually ships in 2-12 days

0

31

Ferris 5405557A

PLATE, DEFLECTOR, 52" - BLACK
(Superseded to 5405557AAFS)

Note: (Model 5900993 Only)

$19.99

$

Usually ships in 2-12 days

0

32

Ferris 5406204B

BAFFLE, FRONT DISCHARGE - LH

Note: (Model 5900993 Only)

$33.99

$

Usually ships in 2-12 days

0

33

Ferris 5413400A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413400AA)

Note: (S/N: 2017100601 & Above)

$66.99

$

Usually ships in 2-12 days

0

34

Ferris 5413398A

SUPPORT, DISCHARGE CHUTE - BLK

Note: (S/N: 2017100601 & Above)

$31.99

$

Usually ships in 2-12 days

0

35

Ferris 5413500

CHUTE, RUBBER DISCHARGE (5413500)

Note: (S/N: 2017100601 & Above)

$216.99

$

Usually ships in 2-12 days

0

36

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

Note: (S/N: 2017100601 & Above)

$3.99

$

Usually ships in 2-12 days

0
