IS 2500Z (5900932) - Ferris IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Rear-Discharge 61" Mower Deck - Housing, Covers, Spindles & Blades (Rear Discharge) Parts Diagram

IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Rear-Discharge

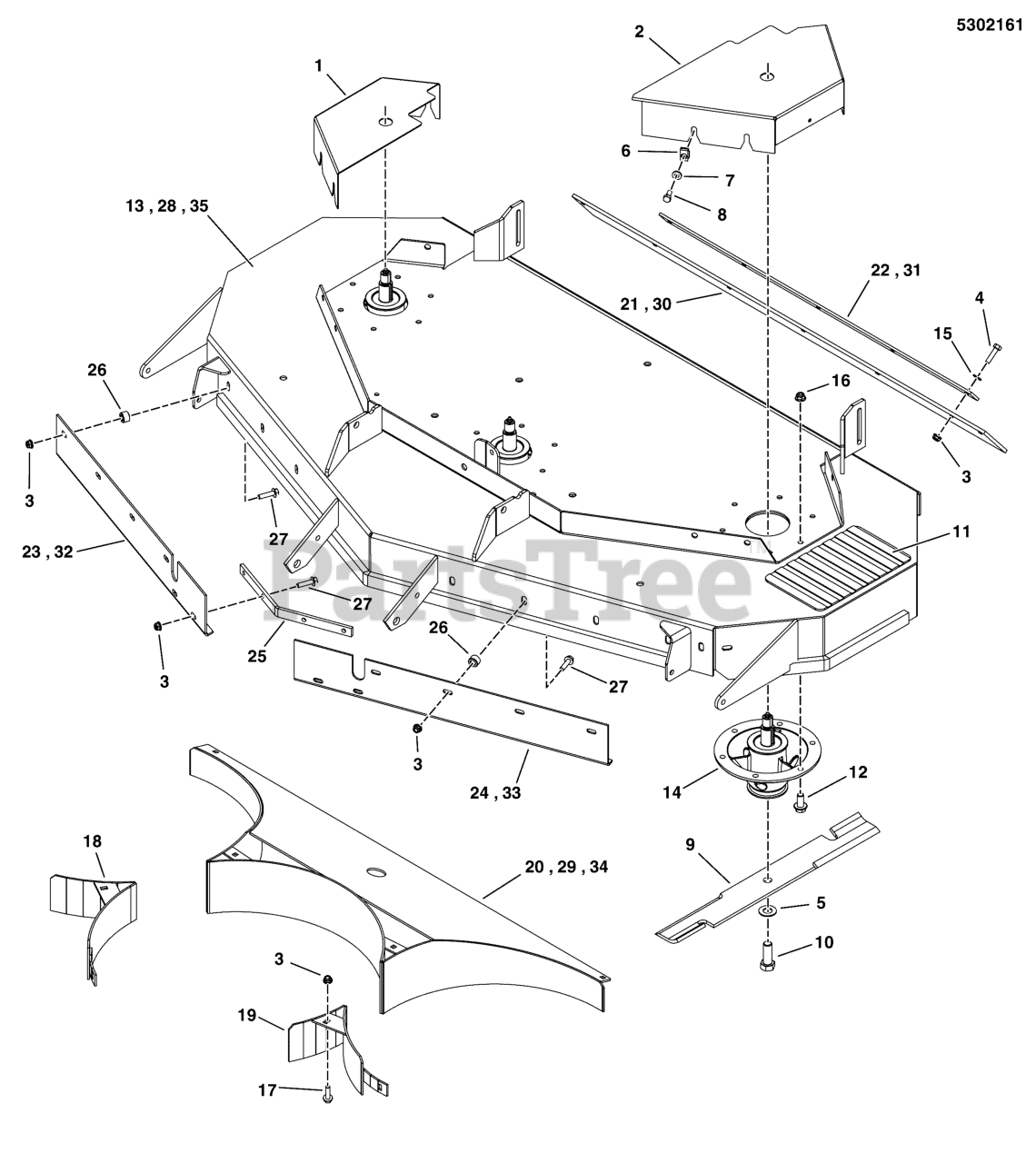

61" Mower Deck - Housing, Covers, Spindles & Blades (Rear Discharge) Parts Diagram

  • Title

1

Ferris 5400791B

GUARD, 61", RH - RED
(Superseded to 5400791BFS)

$39.99

$

Usually ships in 2-12 days

0

2

Ferris 5406907B

GUARD, 61 - LH - RED

$

$

Currently unavailable

3

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 11

0

6

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

7

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

9

Ferris 5020842

BLADE, 21
(Superseded to 5020842ASM)

$28.99

$

In Stock, only 1 left!

0

10

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

12

Ferris 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5600858

DECK SHELL W/DECALS, 2500-61RDCE (5413219B)

Note: (S/N: 2016903714 & ABOVE)

$2792.99

$

Usually ships in 2-12 days

0

14

Ferris 5100993

SPINDLE ASSM, CAST IRON 8.0-6 BOLT
(Superseded to 5100993SM)

$219.99

$

In Stock, Qty 15

0

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

17

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

18

Ferris 5406735A

WELD, FRONT BAFFLE, 61 RD, RH - BLK

Note: (S/N: 2014680517 & BELOW)

$91.99

$

Usually ships in 2-12 days

0

19

Ferris 5406751A

WELD, FRONT BAFFLE, 61 RD, LH - BLK

Note: (S/N: 2014680517 & BELOW)

$88.99

$

Usually ships in 2-12 days

0

20

Ferris 5413512A

WELD, REAR BAFFLE, 61 RD - BLK

Note: (S/N: 2016993007 & ABOVE)

$195.99

$

Usually ships in 2-12 days

0

21

Ferris 5102015

FLAP, STRIPER, RD
(Superseded to 5102015YP)

Note: (S/N: 2014680518 & ABOVE)

$62.99

$

Usually ships in 2-12 days

0

22

Ferris 5405238A

PLATE, SUPPORT - BLK
(Superseded to 5405238AYP)

Note: (S/N: 2014680518 & ABOVE)

$30.99

$

Usually ships in 2-12 days

0

23

Ferris 5406716B

BAFFLE, BLOWOUT, RH

Note: (S/N: 2014680518 & ABOVE)

$

$

Currently unavailable

24

Ferris 5406717B

BAFFLE, BLOWOUT, LH

Note: (S/N: 2014680518 & ABOVE)

$

$

Currently unavailable

25

Ferris 5061413A

BAFFLE, REINFORCEMENT - BLK

Note: (S/N: 2014680517 & BELOW)

$27.99

$

Usually ships in 2-12 days

0

26

Ferris 5047408

SPACER, .39 X .75 X .50, CZ

Note: (S/N: 2014680517 & BELOW)

$

$

Currently unavailable

27

Ferris 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

28

Ferris 5600503

DECK SHELL W/ DECALS, IS2500 61RD CE (5407877B)

Note: (S/N: 2014680518 - 2016903713)

$2792.99

$

Usually ships in 2-12 days

0

29

Ferris 5407884A

WELD, REAR BAFFLE, 61 RD - BLK

Note: (S/N: 2014680518 - 2016993006)

$195.99

$

Usually ships in 2-12 days

0

30

Ferris 5102640

FLAP, STRIPER, 61, RD

Note: (S/N: 2014680517 & BELOW)

$74.99

$

Usually ships in 2-12 days

0

31

Ferris 5406894B

PLATE, SUPPORT, 61 - RED
(Superseded to 5406894BFS)

Note: (S/N: 2014680517 & BELOW)

$31.99

$

Usually ships in 2-12 days

0

32

Ferris 5061411B

BAFFLE, BLOWOUT, RH

Note: (S/N: 2014680517 & BELOW)

$32.99

$

Usually ships in 2-12 days

0

33

Ferris 5061412B

BAFFLE, BLOWOUT, LH

Note: (S/N: 2014680517 & BELOW)

$32.99

$

Usually ships in 2-12 days

0

34

Ferris 5406749B

WELD, REAR BAFFLE, 61RD - RED

Note: (S/N: 2014680517 & BELOW)

$213.99

$

Usually ships in 2-12 days

0

35

Ferris 5600423

DECK SHELL W/ DECALS, IS2500 61RD CE (5406725B)

Note: (S/N: 2014680517 & BELOW)

$2792.99

$

Usually ships in 2-12 days

0
