IS 2500Z (5900931) - Ferris IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge Parking Brake Group Parts Diagram

IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

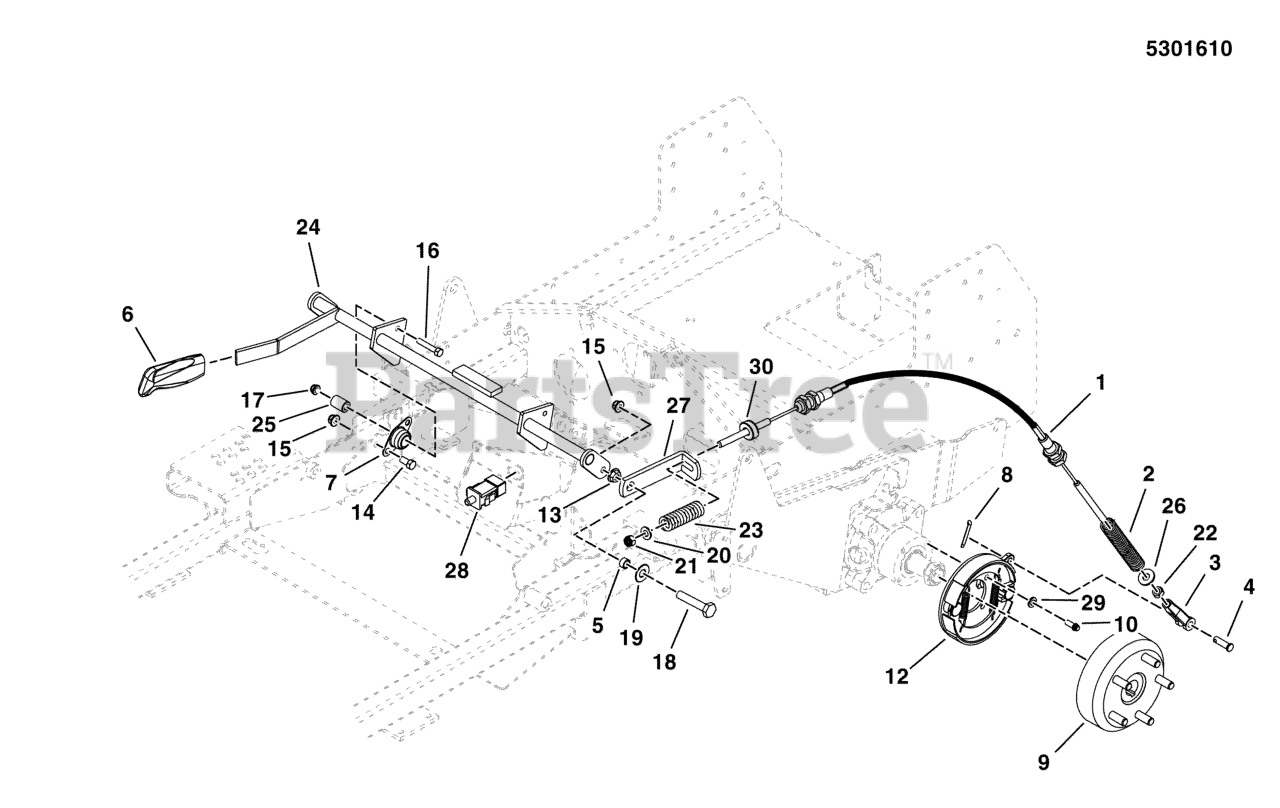

Parking Brake Group Parts Diagram

  • Title

1a

Ferris 5023324

CABLE, PARKING BRAKE
(Superseded to 5023324SM)

Note: (S/N: 2015710439 & Above)

$81.99

$

Usually ships in 2-12 days

0

1b

Ferris 5100087

CABLE, PARKING BRAKE
(Superseded to 5600932YP)

Note: (S/N: 2015710438 & Below)

$100.99

$

Usually ships in 2-12 days

0

2a

Ferris 5021494

SPRING, COMPRESSION
(Superseded to 5021494SM)

Note: (S/N: 2015710439 & Above)

$13.99

$

Usually ships in 2-12 days

0

2b

Ferris 5023320

SPRING, COMPRESSION
(Superseded to 5023320SM)

Note: (S/N: 2015710438 & Below)

$8.49

$

In Stock, only 1 left!

0

3

Ferris 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

4

Ferris 5025213X8

PIN-CLEVIS, 5/16 X 1 YZ
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

5

Ferris 5041930

SPACER, .38 X .50 X .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

6

Ferris 5100171

GRIP, BLACK FLEXIBLE
(Superseded to 5100171SM)

$13.99

$

In Stock, only 2 left!

0

7

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

8

Ferris 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

9a

Ferris 5102896

BRAKE DRUM, 6", 5 BOLT, KNOTT
(Superseded to 5102896YP)

Note: (S/N: 2015208612 & Above)

$225.99

$

Usually ships in 2-12 days

0

9b

Ferris 5023368

DRUM,1-1/4TAPER,5 BOLT
(Superseded to 5102896)

Note: (S/N: 2015208611 & Below)

$225.99

$

Usually ships in 2-12 days

0

10

Ferris 5023490

BOLT-5/16-18 X 3/4 12PT FLNG-PATCH
(Superseded to 5023490SM)

$3.99

$

Usually ships in 2-12 days

0

11a

Ferris 5102897

BRAKE SHOE ASM, LH, KNOTT
(Superseded to 5102897YP)

Note: (S/N: 2015208612 & Above)

$165.99

$

Usually ships in 2-12 days

0

11b

Ferris 5023500

BRAKE ASSEMBLY, LH
(Superseded to 5023500SM)

Note: (S/N: 2015208611 & Below)

$271.99

$

Usually ships in 2-12 days

0

12a

Ferris 5102898

BRAKE SHOE ASM, RH, KNOTT
(Superseded to 5102898YP)

Note: (Not Shown - S/N: 2015208612 & Above)

$171.99

$

Usually ships in 2-12 days

0

12b

Ferris 5023501

BRAKE ASSEMBLY, RH

Note: (Not Shown - S/N: 2015208611 & Below)

$253.99

$

Usually ships in 2-12 days

0

13

Ferris 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

In Stock, Qty 14

0

14

Ferris 5025013X6

BOLT, 3/8-16 X 3/4" GD5 CZ
(Superseded to 5025013X6SM)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

16

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

17

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

20

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

21

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

22

Ferris 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5021773

SPRING, BRAKE
(Superseded to 5021773FS)

$10.99

$

Usually ships in 2-12 days

0

24

Ferris 5404815A

WELD, SHAFT, PARKING BRAKE - BLK

$86.99

$

Usually ships in 2-12 days

0

25

Ferris 5042134

SPACER, .32 X .75 X 1.06
(Superseded to 5042134SM)

$6.49

$

In Stock, only 1 left!

0

26

Ferris 5025337

WASHER, 5/16 USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0

27

Ferris 5047084A

LINK, BRAKE LOCK - BLK

$

$

Currently unavailable

28

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

29

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

30

Ferris 5020047

COLLAR, 5/16 SET
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0
