IS 2500Z (5900931) - Ferris IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge 61" Mower Deck - Pulleys, Belt & Idler Arm (S/N: 2016903713 & Below) Parts Diagram

IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

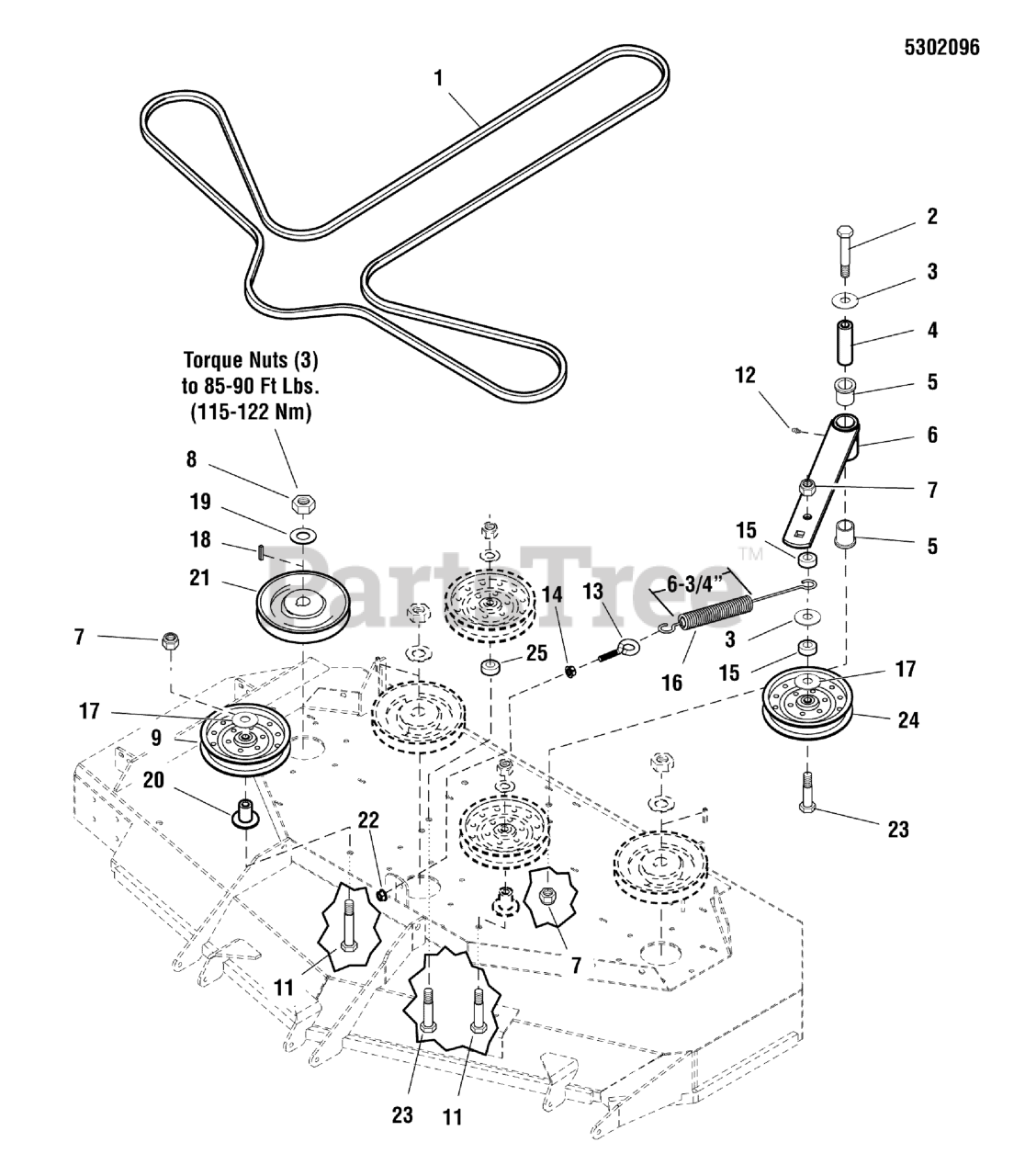

61" Mower Deck - Pulleys, Belt & Idler Arm (S/N: 2016903713 & Below) Parts Diagram

  • Title

1

Ferris 5104063

BELT, 5V, 182.00"EL, LRG ARAMID, WRP, RC
(Superseded to 5104063FS)

$142.99

$

Usually ships in 2-12 days

0

2

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5 YZ
(Superseded to 5025017X36SM)

$6.49

$

Usually ships in 2-12 days

0

3

Ferris 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5045022

SPACER, .52 X 1.00 X 3.5
(Superseded to 5045022SM)

$24.99

$

In Stock, only 2 left!

0

5

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 18

0

6

Ferris 5407039A

WELD, IDLER ARM - BLK
(Superseded to 5407039AYP)

$62.99

$

Usually ships in 2-12 days

0

7

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

8

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

9

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

10

Ferris 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

11

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

12

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

13

Ferris 5021812

EYE BOLT, 3/8-16 X 6, 3.0 THREAD
(Superseded to 5021812SM)

$5.99

$

In Stock, Qty 18

0

14

Ferris 5025084

NUT, 3/8-16 HEX JAM
(Superseded to 5025084SM)

$3.49

$

In Stock, Qty 13

0

15

Ferris 5045023

SPACER, .52 X 1.00 X .44, CZ
(Superseded to 5045023SM)

$6.49

$

In Stock, only 1 left!

0

16

Ferris 5023340

SPRING-EXTENSION, SWIVEL END
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

17

Ferris 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

18

Ferris 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 3 left!

0

19

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, Qty 17

0

21

Ferris 5100700

PULLEY, 6.93 EOD X 25MM, SPLIT
(Superseded to 5100700SM)

$74.99

$

Usually ships in 2-12 days

0

22

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

23

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

24

USE 5104716 PULLEY + 5105145 SHIELD

$

$

Not available

25

Ferris 5046916

SPACER, .51 X 1.75 X .75
(Superseded to 5046916FS)

$27.99

$

Usually ships in 2-12 days

0
