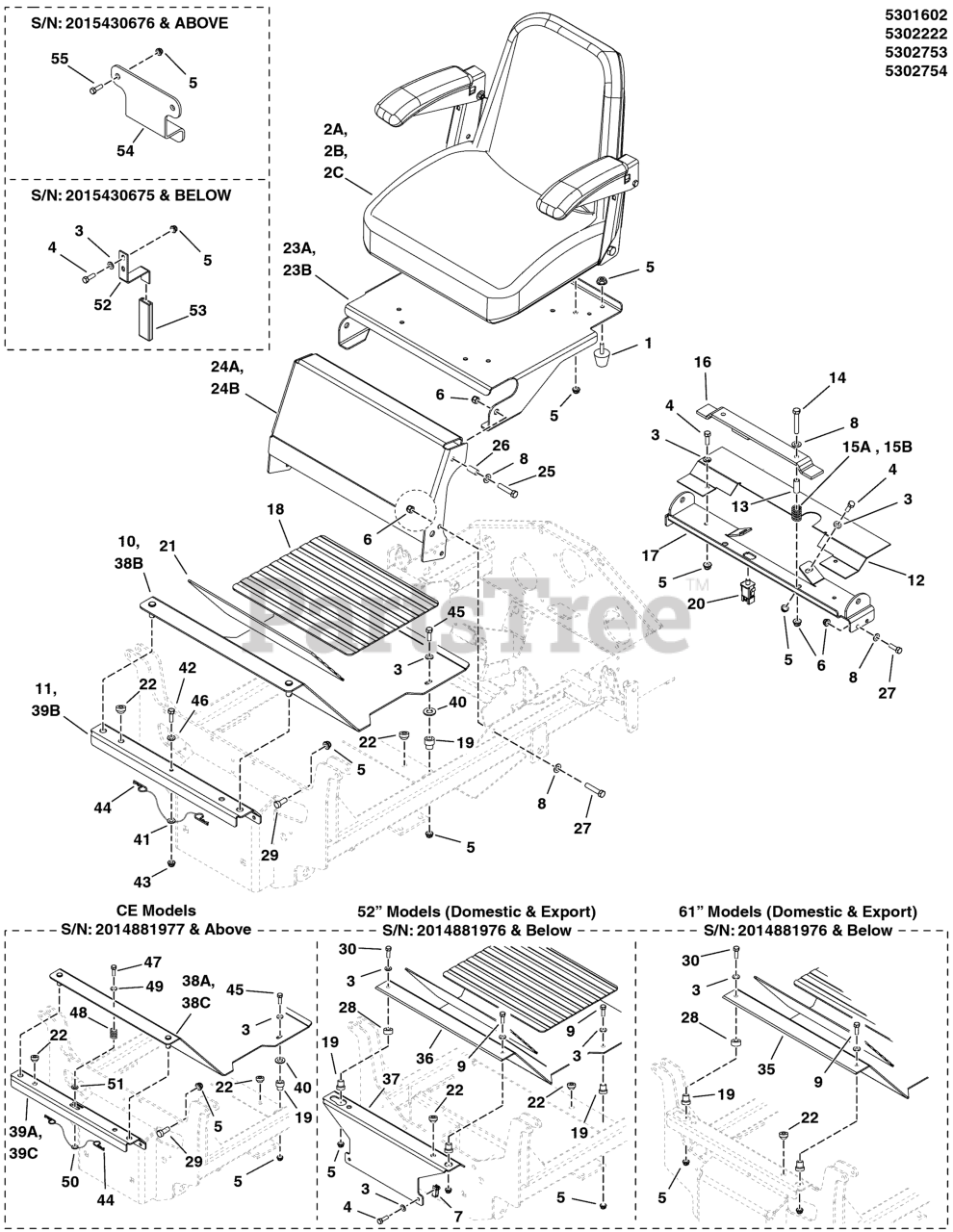

IS 2500Z (5900799) - Ferris IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge Seat & Kick Plate Group Parts Diagram

IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

Seat & Kick Plate Group Parts Diagram

  • Title

1

Ferris 5022612

BUMPER, RUBBER 5/16-18
(Superseded to 5022612SM)

$23.99

$

In Stock, only 2 left!

0

2a

Ferris 5103354

SEAT, 2012
(Superseded to 5104681YP)

Note: (S/N: 2015430676 & ABOVE)

$731.99

$

Usually ships in 2-12 days

0

2b

Ferris 5103004

SEAT, LOW COMPANION

Note: (S/N: 2014582799 - 2015430675)

$

$

Currently unavailable

2c

Ferris 5022031

SEAT, GRAY, NO LOGO, CMPT

Note: (S/N: 2014582798 & BELOW)

$

$

Currently unavailable

3

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

5

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Ferris 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2 GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

10

Ferris 5408289B

PLATE, FLOOR, IS2500

Note: (S/N: 2014881977 - 2015430675)

$233.99

$

Usually ships in 2-12 days

0

11

Ferris 5408271B

PLATE, FLOOR MOUNTING

Note: (S/N: 2014881977 - 2015430675)

$54.99

$

Usually ships in 2-12 days

0

12

Ferris 5404943B

GUARD, HYDRO BELT, IS2500 - RED

$29.99

$

Usually ships in 2-12 days

0

13

Ferris 5041931

SPACER, .38 X .50 X 1.25, CZ
(Superseded to 5041931SM)

$5.99

$

Usually ships in 2-12 days

0

14

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

15a

Ferris 5103070

SPRING COMP .76IDX1.3LGX.105WIRE BLACK
(Superseded to 5103070YP)

Note: (S/N: 2015430676 & ABOVE)

$9.99

$

Usually ships in 2-12 days

0

15b

Ferris 5101079

SPRING-COMP, .625 ID X 1.31 LG X .105 WR
(Superseded to 5101079FS)

Note: (S/N: 2015430675 & BELOW)

$5.49

$

Usually ships in 2-12 days

0

16

Ferris 5404894B

WELD, SEAT SWITCH, IS2500Z -RED
(Superseded to 5404894BFS)

$35.99

$

Usually ships in 2-12 days

0

17

Ferris 5405031B

WELD, SEAT SUPPORT - RED

$83.99

$

Usually ships in 2-12 days

0

18

Ferris 5101013

SAFETY WALK, 11.50 X 15.00
(Superseded to 5101013SM)

$30.99

$

Usually ships in 2-12 days

0

19

Ferris 5023257

BUSHING, .38 X .88 X .73
(Superseded to 5023257YP)

$11.99

$

Usually ships in 2-12 days

0

20

Ferris 5022198

SWITCH, PLUNGER, NO/NO SNAP-IN
(Superseded to 5022198SM)

$15.99

$

In Stock, Qty 7

0

21

Ferris 5101007

SAFETY WALK, FLOOR REST, 17.13 X 6.00
(Superseded to 5101007SM)

$32.99

$

Usually ships in 2-12 days

0

22

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

23a

Ferris 5407295B

PLATE, SEAT SUPPORT IS2500Z - RED

Note: (S/N: 2014645943 & ABOVE)

$

$

Currently unavailable

23b

Ferris 5405750B

PLATE, SEAT SUPPORT IS2500Z - RED

Note: (S/N: 2014645942 & BELOW)

$170.99

$

Usually ships in 2-12 days

0

24a

Ferris 5407296B

SEAT SUPPORT - RED
(Superseded to 5407296BFS)

Note: (S/N: 2014645943 & ABOVE)

$118.99

$

Usually ships in 2-12 days

0

24b

Ferris 5405749B

SEAT SUPPORT - RED

Note: (S/N: 2014645942 & BELOW)

$

$

Currently unavailable

25

Ferris 1960032

SCREW HEX HD 3/8-16X1.250 .141TH HD G5
(Superseded to 1960032SM)

$5.49

$

In Stock, only 1 left!

0

26

Ferris 5041930

SPACER, .38 X .50 X .27
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

27

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

28

Ferris 5101965

SPACER, .390 X 1.00 X .188, YZ
(Superseded to 5101965YP)

$6.49

$

In Stock, only 1 left!

0

29

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

30

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

31

Ferris 5102760X1

SEAT BACK COVER
(Superseded to 5102760X1YP)

Note: (Not Shown)

$145.99

$

Usually ships in 2-12 days

0

32

Ferris 5102760X2

SEAT CUSHION
(Superseded to 5102760X2YP)

Note: (Not Shown)

$281.99

$

Usually ships in 2-12 days

0

33

Ferris 5102760X3

ARM REST, COMPANION
(Superseded to 5102760X3YP)

Note: (Not Shown)

$257.99

$

Usually ships in 2-12 days

0

34

Ferris 5102760X4

SLIDE RAILS
(Superseded to 5102760X4YP)

Note: (Not Shown)

$183.99

$

Usually ships in 2-12 days

0

35

Ferris 5406840B

PLATE, FLOOR, IS2500 - RED - 61

Note: (S/N: 2014881976 & Below)

$

$

Currently unavailable

36

Ferris 5406810B

PLATE, FLOOR, IS2500 - RED - 52

Note: (S/N: 2014881976 & Below)

$

$

Currently unavailable

37

Ferris 5406379B

WELD, FRONT FLOOR - RED

$

$

Currently unavailable

38a

Ferris 5409273B

WELD, FLOOR PLATE, IS2500, CE
(Superseded to 5409273BFS)

Note: (CE - S/N: 2015430676 & ABOVE)

$207.99

$

Usually ships in 2-12 days

0

38b

Ferris 5409273B

WELD, FLOOR PLATE, IS2500
(Superseded to 5409273BFS)

Note: (DOMESTIC - S/N: 2015430676 & ABOVE)

$207.99

$

Usually ships in 2-12 days

0

38c

Ferris 5408289B

PLATE, FLOOR, IS2500 CE

Note: (S/N: 2014881976 - 2015430675)

$233.99

$

Usually ships in 2-12 days

0

39a

Ferris 5409264B

PLATE, FLOOR MOUNTING, CE

Note: (CE - S/N: 2015430676 & ABOVE)

$

$

Currently unavailable

39b

Ferris 5409266B

PLATE, FLOOR MOUNTING

Note: (DOMESTIC - S/N: 2015430676 & ABOVE)

$51.99

$

Usually ships in 2-12 days

0

39c

Ferris 5408103B

PLATE, FLOOR MOUNTING CE

Note: (S/N: 2014881976 - 2015430675)

$

$

Currently unavailable

40

Ferris 5025483

WASHER, .350 ID X .65 OD X .160 THK. YZ

$

$

Currently unavailable

41

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

42

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

43

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

44

Ferris 5103107

HAIRPIN COTTER LANYARD ASM, 8"

$

$

Currently unavailable

45

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

46

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

47

Ferris 5025572

DZUS, 1/4 TURN FASTENER, D8X29MM

$8.49

$

Usually ships in 2-12 days

0

48

Ferris 5025573

DZUS, EJECTOR SPRING
(Superseded to 5025573FS)

$2.99

$

Usually ships in 2-12 days

0

49

Ferris 5025574

DZUS, CUPPED WASHER
(Superseded to 5025574FS)

$3.99

$

Usually ships in 2-12 days

0

50

Ferris 5025576

DZUS, RECEPTACLE, CLIP-ON, D8
(Superseded to 5025576FS)

$6.99

$

Usually ships in 2-12 days

0

51

Ferris 5025577

DZUS, RETAINER, PUSH-ON, SS
(Superseded to 5025577FS)

$2.99

$

Usually ships in 2-12 days

0

52

Ferris 5406874B

RETAINER, BATTERY - RED

$

$

Currently unavailable

53

Ferris 5025510

GRIP, FOAM, 1/4 X 1 X 4.1
(Superseded to 5025510SM)

$6.49

$

In Stock, Qty 12

0

54

Ferris 5409265A

RETAINER, BATTERY - RED
(Superseded to 5409265AFS)

$16.99

$

Usually ships in 2-12 days

0

55

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

56

Ferris 5100810

PAD, RUBBER MOUNT
(Superseded to 5100810YP)

Note: (Mounts inside of battery box)

$8.99

$

Usually ships in 2-12 days

0
