IS 2500Z (5900799) - Ferris IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge Rear Suspension Group Parts Diagram

IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

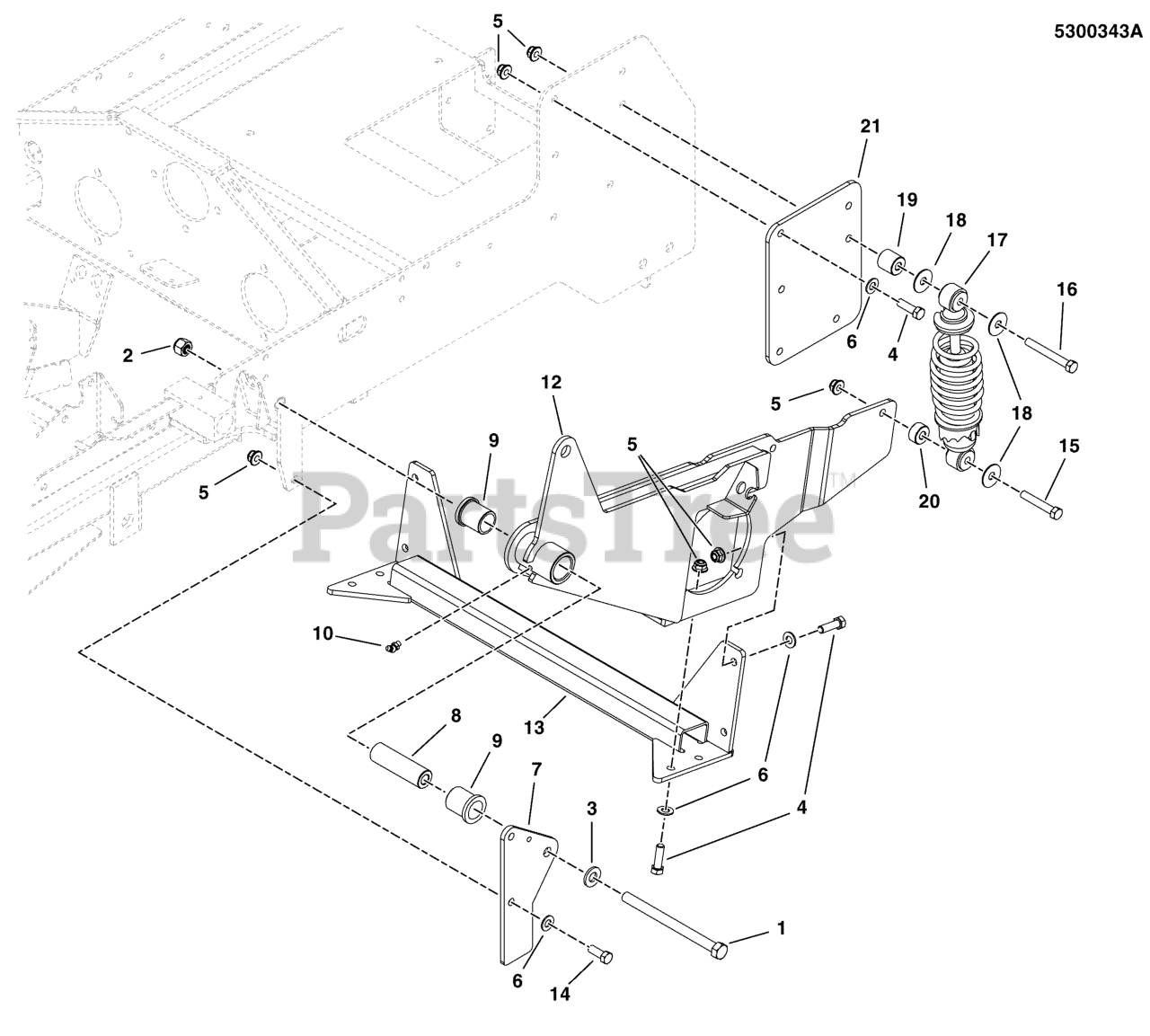

Rear Suspension Group Parts Diagram

  • Title

1

Ferris 5025488X52

BOLT, 1/2-13 X 6-1/2 GD8, YZ
(Superseded to 5025488X52YP)

$8.49

$

Usually ships in 2-12 days

0

2

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

3

Ferris 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

4

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

5

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

6

Ferris 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

7

Ferris 5408787A

SUPPORT, SWING ARM - BLK

$16.99

$

Usually ships in 2-12 days

0

8

Ferris 5061339

SPACER, .52 X 1.00 X 3.42
(Superseded to 5061339SM)

$13.99

$

Usually ships in 2-12 days

0

9

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

10

Ferris 5020020

GREASE FITTING, 45 DEGREE
(Superseded to 5020020SM)

$4.49

$

Usually ships in 2-12 days

0

11a

Ferris 5401745B

WELD, MOTOR MOUNT - RH - RED

Note: (52" MODELS)

$421.99

$

Usually ships in 2-12 days

0

11b

Ferris 5406576B

WELD, MOTOR MOUNT - RH - RED

Note: (61" MODELS)

$330.99

$

Usually ships in 2-12 days

0

12a

Ferris 5401744B

WELD, MOTOR MOUNT - LH - RED

Note: (52" MODELS)

$421.99

$

Usually ships in 2-12 days

0

12b

Ferris 5406575B

WELD, MOTOR MOUNT - LH - RED

Note: (61" MODELS)

$330.99

$

Usually ships in 2-12 days

0

13a

Ferris 5404056A

WELD, TIE BAR - BLK
(Superseded to 5600187)

Note: (52" MODELS)

$183.99

$

Usually ships in 2-12 days

0

13b

Ferris 5405866A

WELD, TIE BAR - 61 - BLK
(Superseded to 5405866AFS)

Note: (61" MODELS)

$165.99

$

Usually ships in 2-12 days

0

14

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

15

Ferris 5025058X18

BOLT, 3/8-16 X 2-1/4 GD5 TFL
(Superseded to 5025058X18YP)

$7.49

$

In Stock, only 1 left!

0

16

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

17

Ferris 5022842

COIL-OVER SHOCK ASSEMBLY
(Superseded to 5022842SM)

$216.99

$

In Stock, only 2 left!

0

18

Ferris 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

19

Ferris 5045943

SPACER, SHOULDER
(Superseded to 5045943SM)

$11.99

$

In Stock, only 1 left!

0

20

Ferris 5046860

SPACER, .39 X 1.00 X .50
(Superseded to 5046860SM)

$6.49

$

In Stock, only 1 left!

0

21

Ferris 5061751B

PLATE, FRAME SUPPORT, LH - RED
(Superseded to 5061751BFS)

$39.99

$

Usually ships in 2-12 days

0
