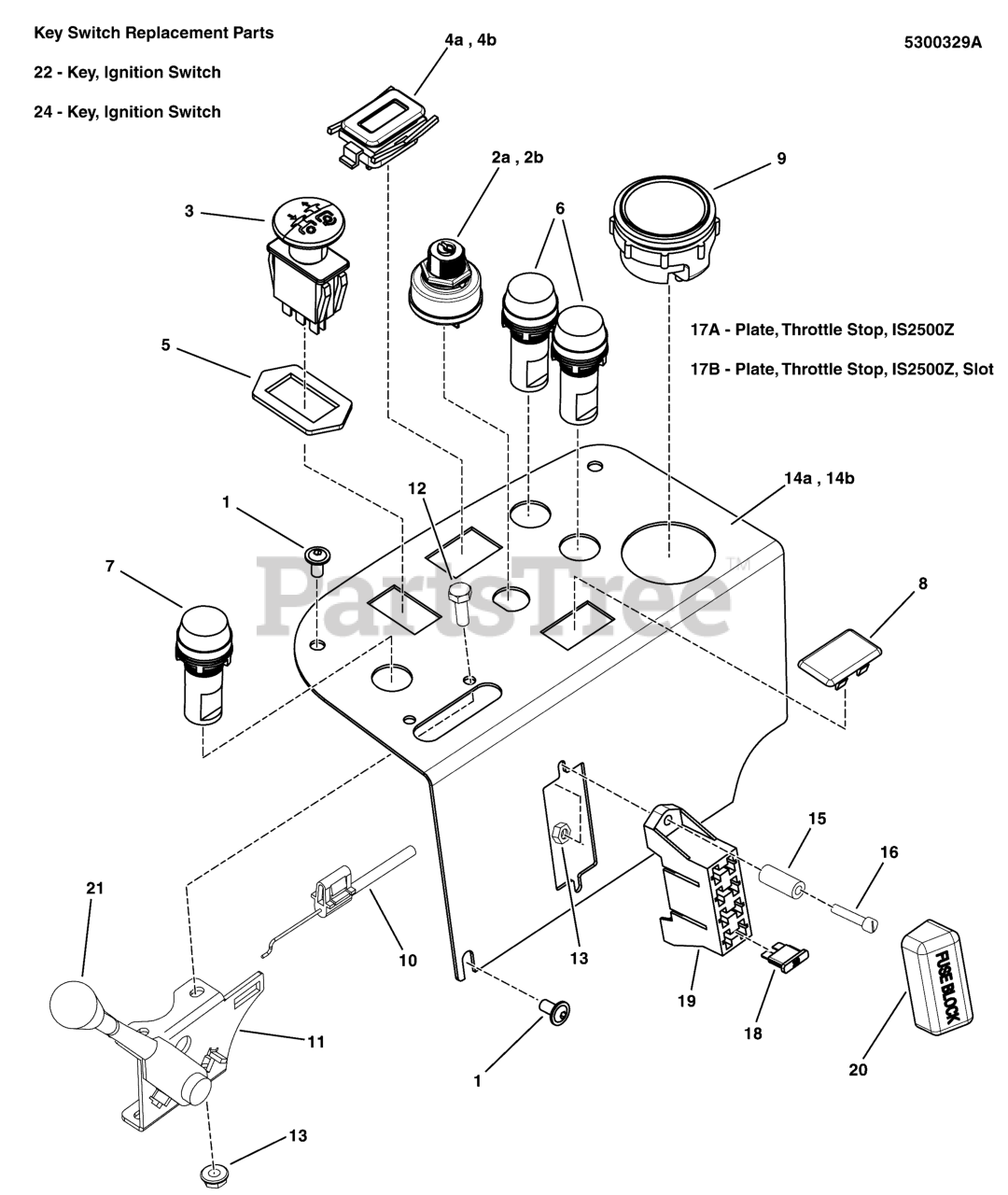

IS 2500Z (5900799) - Ferris IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge Instrument & Control Panel Group Parts Diagram

IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

Instrument & Control Panel Group Parts Diagram

  • Title

1

Ferris 5025299X4

SCREW, 1/4-20 X 1/2 ALLEN BH
(Superseded to 5106469)

$2.49

$

In Stock, Qty 15

0

2a

Ferris 5102962

IGNITION SWITCH, SEALED, 3 POS
(Superseded to 5102962FS)

Note: (S/N: 2015276815 & ABOVE)

$101.99

$

Usually ships in 2-12 days

0

2b

Ferris 5100582

SWITCH, IGNITION, YANMAR, 4 POS

Note: (S/N: 2015276814 & BELOW)

$80.99

$

Usually ships in 2-12 days

0

3

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

4a

HOUR METER, ASSEMBLE

Note: (S/N: 2015551938 & ABOVE)(Refer to Note: *)

$

$

Not available

4b

Ferris 5102417

HOUR METER

Note: (S/N: 2015551937 & BELOW)

$64.99

$

Usually ships in 2-12 days

0

5

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

6

Ferris 5023452

LIGHT, WARNING, 22MM RED
(Superseded to 5023452FS)

$48.99

$

Usually ships in 2-12 days

0

7

Ferris 5023451

LIGHT, GLOW PLUG, 22MM AMBER
(Superseded to 5023451FS)

$48.99

$

Usually ships in 2-12 days

0

8

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

9

Ferris 5023393

GAUGE, WATER TEMPERATURE
(Superseded to 5023393YP)

$72.99

$

Usually ships in 2-12 days

0

10

Ferris 5101072

CABLE, THROTTLE, 52"
(Superseded to 5101072FS)

$27.99

$

In Stock, only 1 left!

0

11

Ferris 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

$48.99

$

In Stock, only 1 left!

0

12

Ferris 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

14a

Ferris 5408738A

PANEL, CONTROL, IS2500Z - BLK
(Superseded to 5408738AFS)

Note: (S/N: 2015276815 & ABOVE)

$40.99

$

Usually ships in 2-12 days

0

14b

Ferris 5403507A

PANEL, CONTROL, IS2000Z YANMAR - BLK

Note: (S/N: 2015276814 & BELOW)

$32.99

$

Usually ships in 2-12 days

0

15

Ferris 5102275

SPACER, .20 X .38 X 1.75, YZ

$7.49

$

Usually ships in 2-12 days

0

16

Ferris 5025270X20

SCREW, 10-24 X 2-1/2, RD HD PHILLIPS, CZ

$

$

Currently unavailable

17A

PLATE, THROTTLE STOP - BLK

Note: (20HP DOMESTIC - S/N: ALL; 24HP EXPORT - S/N: 2016811910 & BELOW)

$

$

Not available

17B

PLATE, THROTTLE STOP, IS2500, SLOT

Note: (24HP EXPORT - S/N: 2016811911 & ABOVE)

$

$

Not available

18

Ferris 5021603

FUSE, ATO, 20 AMP
(Superseded to 5021603SM)

$4.99

$

In Stock, only 2 left!

0

19

Ferris 5021518

FUSE BLOCK
(Superseded to 5021518SM)

$11.99

$

In Stock, only 1 left!

0

20

Ferris 5022805

COVER, VINYL FUSEBLOCK
(Superseded to 5022805SM)

$6.49

$

Usually ships in 2-12 days

0

21

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

$10.99

$

In Stock, only 1 left!

0

22

Ferris 5102962X1

KEY SET, Ignition Switch, 3 position (SV)

Note: (S/N: 2015276815 & ABOVE)

$36.99

$

Usually ships in 2-12 days

0

23

Ferris 5102400

BEZEL NUT & SEAL (SV)

Note: (NOT SHOWN - S/N: 2015276814 & BELOW)

$31.99

$

Usually ships in 2-12 days

0

24

Ferris 5100582X2

KEY SET, INDAK IGNITION SWITCH, 4 POS (SV)

Note: (S/N: 2015276814 & BELOW)

$8.99

$

Usually ships in 2-12 days

0
