IS 2500Z (5900799) - Ferris IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge Hood & Shield Group Parts Diagram

IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

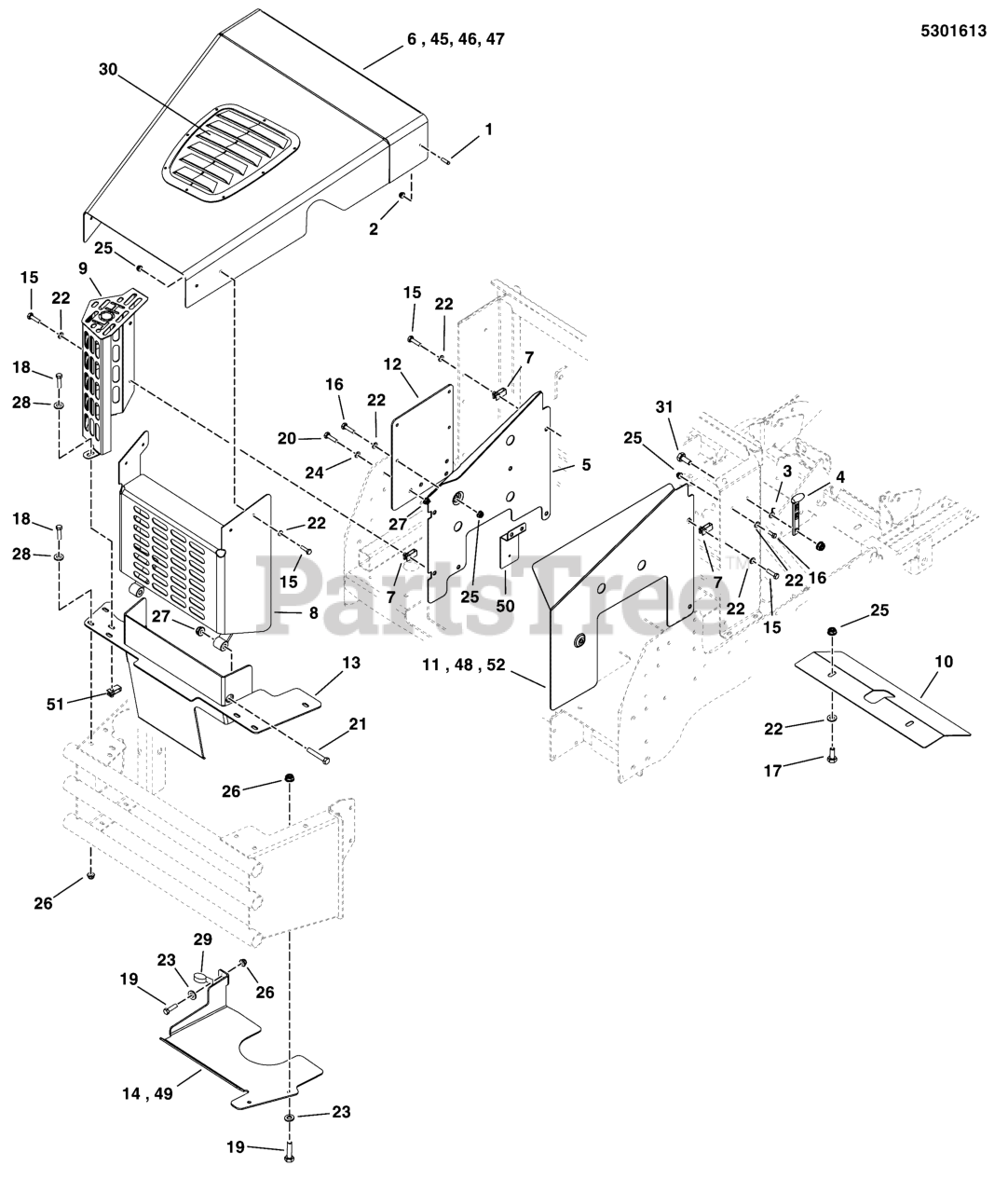

Hood & Shield Group Parts Diagram

  • Title

1

Ferris 1726044

BINDING POST #8-32X.500 INT THR BLK
(Superseded to 1726044SM)

$3.99

$

Usually ships in 2-12 days

0

2

Ferris 2860707

SCREW-HEX SERR FLNG LK # 8-32X0.375 YEL
(Superseded to 2860707SM)

$3.49

$

In Stock, only 2 left!

0

3

Ferris 1723168

HOOK-.125DIA WIRE GR CAT STRAP YELLOW
(Superseded to 1723168SM)

$9.99

$

Usually ships in 2-12 days

0

4

Ferris 2171600

STRAP,HOOD,BLACK RUBBER
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0

5

Ferris 5404649B

SIDE PANEL, LH - RED
(Superseded to 5404649BFS)

$78.99

$

Usually ships in 2-12 days

0

6

Ferris 5404953B

WELD, HOOD, IS2500 - RED

Note: (52" DOM MODELS)

$262.99

$

Usually ships in 2-12 days

0

7

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5404961B

WELD, REAR COVER - RED
(Superseded to 5404961BFS)

$210.99

$

Usually ships in 2-12 days

0

9

Ferris 5405002B

WELD, MUFFLER GUARD, 2500 - RED
(Superseded to 5405002BFS)

$130.99

$

Usually ships in 2-12 days

0

10

Ferris 5404935B

PLATE, SHIELD, HYDRAULIC PUMPS - RED
(Superseded to 5404935BFS)

$33.99

$

Usually ships in 2-12 days

0

11

Ferris 5406739B

COVER, SIDE, RH - RED

Note: (61" MODELS - S/N: 2016680389 & Below; 52" MODELS - 2016585093 - 2016680389)

$63.99

$

Usually ships in 2-12 days

0

12

Ferris 5401954B

PLATE, HYDRAULIC TANK MOUNT - RED
(Superseded to 5401954BFS)

$22.99

$

Usually ships in 2-12 days

0

13

Ferris 5404958B

WELD, GUARD, PTO BELT - RED

$

$

Currently unavailable

14

Ferris 5405020B

GUARD, DECK BELT, IS2500Z

Note: (52" MODELS - S/N: 2014887976 & BELOW)

$58.99

$

Usually ships in 2-12 days

0

15

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

16

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

17

Ferris 5025010X10

BOLT, 1/4-20 X 1-1/4, GD5
(Superseded to 5025010X10SM)

$3.99

$

In Stock, only 4 left!

0

18

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

19

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

20

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

21

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 1 left!

0

22

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

23

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

24

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

26

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

27

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

28

Ferris 5025292

WASHER, 5/16 GD.9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

29

Ferris 5023173

CLAMP, HOSE, 1.000 DIA.
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

30

Ferris 5101768

SCOOP, HOOD, OUTFRONT MOWER
(Superseded to 5101768YP)

$142.99

$

Usually ships in 2-12 days

0

31

Ferris 80003518

BOLT,1/4-20X0.750,GR5,STD NECK,SQ,ZC/CL
(Superseded to 703575)

$3.99

$

In Stock, only 1 left!

0

32

Ferris 5407957B

PLATE, MOUNT, HOOD FASTENER - RED

Note: (EXPORT MODELS) (NOT SHOWN)

$

$

Currently unavailable

33

Ferris 5025572

DZUS, 1/4 TURN FASTENER, D8X29MM

Note: (EXPORT MODELS) (NOT SHOWN)

$8.49

$

Usually ships in 2-12 days

0

34

Ferris 5025573

DZUS, EJECTOR SPRING
(Superseded to 5025573FS)

Note: (EXPORT MODELS) (NOT SHOWN)

$2.99

$

Usually ships in 2-12 days

0

35

Ferris 5025574

DZUS, CUPPED WASHER
(Superseded to 5025574FS)

Note: (EXPORT MODELS) (NOT SHOWN)

$3.99

$

Usually ships in 2-12 days

0

36

Ferris 5025576

DZUS, RECEPTACLE, CLIP-ON, D8
(Superseded to 5025576FS)

Note: (EXPORT MODELS) (NOT SHOWN)

$6.99

$

Usually ships in 2-12 days

0

37

Ferris 5025577

DZUS, RETAINER, PUSH-ON, SS
(Superseded to 5025577FS)

Note: (EXPORT MODELS) (NOT SHOWN)

$2.99

$

Usually ships in 2-12 days

0

38

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

Note: (EXPORT MODELS) (NOT SHOWN)

$3.99

$

Usually ships in 2-12 days

0

39

Ferris 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

Note: (EXPORT MODELS) (NOT SHOWN)

$3.99

$

Usually ships in 2-12 days

0

40

Ferris 5023499

WASHER, #10 SAE
(Superseded to 5023499SM)

Note: (EXPORT MODELS) (NOT SHOWN)

$3.49

$

Usually ships in 2-12 days

0

41

Ferris 5050853X12

BLACK BODY MOLDING, 12.00
(Superseded to 5050853X12FS)

Note: (NOT SHOWN)

$7.49

$

In Stock, only 2 left!

0

42

Ferris 5050853X3P75

BLACK BODY MOLDING, 3.75

Note: (NOT SHOWN)

$3.99

$

Usually ships in 2-12 days

0

43

Ferris 5050853X7P5

BLACK BODY MOLDING, 7.50

Note: (NOT SHOWN)

$5.99

$

Usually ships in 2-12 days

0

44

Ferris 1675044

RIVET-POP.188 .429L AL,AL STEM.37HD DIA
(Superseded to 1675044SM)

Note: (NOT SHOWN)

$3.99

$

In Stock, only 1 left!

0

45

Ferris 5406738B

WELD, HOOD, IS2500 - RED
(Superseded to 5406738BFS)

Note: (61" DOM MODELS)

$290.99

$

Usually ships in 2-12 days

0

46

Ferris 5407961B

WELD, HOOD, IS2500 - RED

Note: (61" CE MODELS)

$270.99

$

Usually ships in 2-12 days

0

47

Ferris 5407959B

WELD, HOOD, IS2500 - RED

Note: (52" CE MODELS)

$279.99

$

Usually ships in 2-12 days

0

48

Ferris 5406143B

COVER, SIDE, RH - RED

Note: (52" MODELS - S/N: 2016585092 & Below)

$62.99

$

Usually ships in 2-12 days

0

49

Ferris 5406737B

GUARD, DECK BELT
(Superseded to 5406737BFS)

Note: (ALL 61" Models / 52" S/N: 2014887977 & ABOVE)

$53.99

$

Usually ships in 2-12 days

0

50

Ferris 5408836A

MOUNT, MAXI FUSE

$

$

Currently unavailable

51

Ferris 5025452

BODY CLIP, 5/16-18, 1/4 MATERIAL
(Superseded to 5025452YP)

$5.49

$

In Stock, only 3 left!

0

52

Ferris 5412199B

COVER, SIDE, RH
(Superseded to 5412199BFS)

Note: (52" & 61" Models - S/N: 2016680390 & Above)

$69.99

$

Usually ships in 2-12 days

0
