IS 2500Z (5900799) - Ferris IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge Deck Lift Group Parts Diagram

IS2500Z Series 61" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

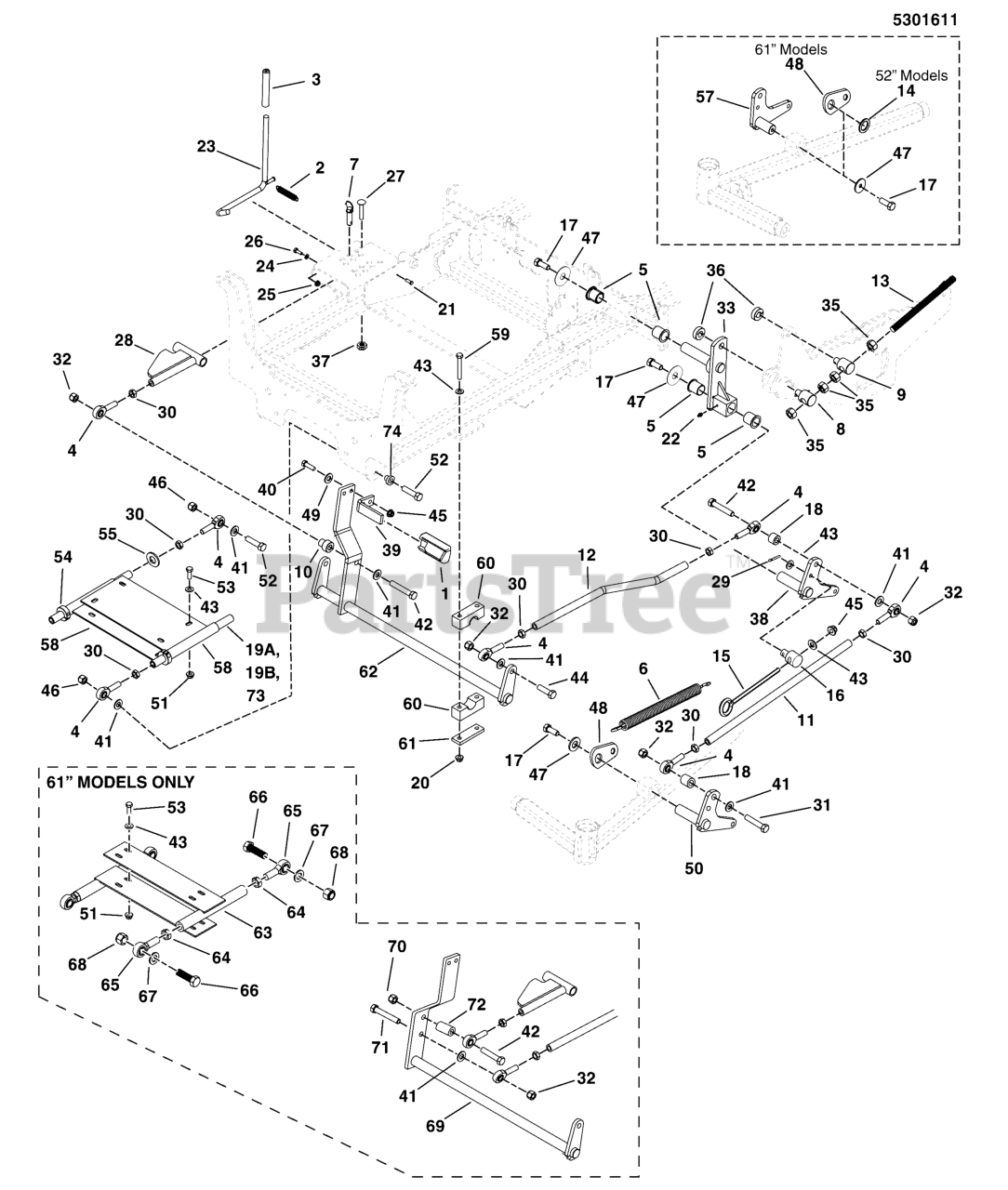

Deck Lift Group Parts Diagram

  • Title

1

Ferris 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

Usually ships in 2-12 days

0

2

Ferris 5020639

SPRING-EXT, .500 OD X 3.50 LG X .058 WR
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

3

Ferris 5021880

GRIP, FOAM, .475 X 4.35 X .095
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

4

Ferris 5022434

BALL JOINT, 1/2-20, MALE
(Superseded to 5022434SM)

$42.99

$

In Stock, only 2 left!

0

5

Ferris 5023343

BUSHING, 1.00 X 1.13 X 1.38, Plastic
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

6

Ferris 5023355

SPRING-EXT, 1.00 ODX13.25LGX.177WR, BLK
(Superseded to 5023355SM)

Note: (61" MODELS USE QTY. 2)

$49.99

$

Usually ships in 2-12 days

0

7

Ferris 5023498

PIN, HITCH, 1/2 X 2.00 OAL, YP
(Superseded to 5023498SM)

$8.99

$

In Stock, only 2 left!

0

8

Ferris 5045447

SPRING ROD PIVOT (52" Models Only)
(Superseded to 5045447SM)

$25.99

$

Usually ships in 2-12 days

0

9

Ferris 5045856

PIVOT, SPRING ROD

$

$

Currently unavailable

10

Ferris 5047103

ADAPTER, CASTER AXLE, CZ
(Superseded to 5047103SM)

Note: (52" MODELS)(2 per tire)

$10.99

$

In Stock, Qty 20+

0

11

Ferris 5100148

ROD, DECK LIFT OUTER, YZ

$

$

Currently unavailable

12

Ferris 5100149

ROD, DECK LIFT BENT

$

$

Currently unavailable

13

Ferris 5100247

ROD, 5/8-11 X 9.00
(Superseded to 5100247SM)

$14.99

$

Usually ships in 2-12 days

0

14

Ferris 5020929

SHIM, 1.0 X 1.5 X 0.125
(Superseded to 84005968)

Note: (52" MODELS ONLY)

$2.99

$

In Stock, Qty 9

0

15

Ferris 5021811

EYE BOLT, 3/8-16 X 8, 3THRD, 1EYE, CZ
(Superseded to 5021811SM)

Note: (61" MODELS USE QTY. 2)

$8.49

$

In Stock, Qty 12

0

16

Ferris 5100380

* ADJUSTER, DECK HANGER
(Superseded to 5100380SM)

Note: (61" MODELS USE QTY. 2)

$20.99

$

In Stock, only 1 left!

0

17

Ferris 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5045178

SPACER, .52 X 1.00 X .75, CZ
(Superseded to 5045178SM)

$7.49

$

In Stock, Qty 6

0

19a

Ferris 5102591

SHAFT, DECK STABILIZER
(Superseded to 5102591FS)

Note: (20/52" DOMESTIC & 24/52" EXPORT - S/N: 2014837785 & BELOW)

$34.99

$

Usually ships in 2-12 days

0

19b

Ferris 5100155

SHAFT, DECK STABILIZER
(Superseded to 5100155SM)

Note: (20/52" EXPORT - S/N: 2014837785 & BELOW

$40.99

$

Usually ships in 2-12 days

0

20

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

21

Ferris 5025212X7

PIN, CLEVIS, 1/4 X 7/8, PLATED
(Superseded to 5025212X7SM)

$4.99

$

Usually ships in 2-12 days

0

22

Ferris 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

23

Ferris 5400719A

WELD, ROD DECK LIFT - BLK

$

$

Currently unavailable

24

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

25

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

26

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

27

Ferris 5025146X16

BOLT, 3/8-16 X 2, CARRIAGE, GD5, CZ
(Superseded to 5025146X16SM)

$4.49

$

Usually ships in 2-12 days

0

28

Ferris 5400769B

WELD, DECK ADJUST LINK - RED MODEL

$45.99

$

Usually ships in 2-12 days

0

29

Ferris 5025203X6

* PIN, COTTER, 1/8" X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 3 left!

0

30

Ferris 5025089

NUT, 1/2-20 Hex Jam
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 18

0

31

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

32

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

33

Ferris 5401664A

WELD, REAR LIFT - LH - BLK
(Superseded to 5105172)

$84.99

$

Usually ships in 2-12 days

0

34

Ferris 5401665A

WELD, REAR LIFT - RH - BLK
(Superseded to 5105173)

$77.99

$

Usually ships in 2-12 days

0

35

Ferris 5025040

NUT, Hex, 5/8-11
(Superseded to 5025040SM)

$3.49

$

In Stock, Qty 6

0

36

Ferris 5020441

COLLAR, 5/8" Split
(Superseded to 5020441SM)

$14.99

$

In Stock, Qty 20+

0

37

Ferris 5025100

NUT, Hex, Side Lock, 3/8-16
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

38

Ferris 5401671A

WELD, DECK LIFT LEVER, LH - BLK
(Superseded to 5401671AYP)

$61.99

$

Usually ships in 2-12 days

0

39

Ferris 5406016A

PEDAL, FOOT - BLK

$

$

Currently unavailable

40

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

41

Ferris 5025440

WASHER, 1/2" GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

42

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 2 left!

0

43

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

44

Ferris 5025017X14

BOLT, 1/2-13 X 1-3/4 GD5 CZ
(Superseded to 5025017X14YP)

$3.49

$

In Stock, only 4 left!

0

45

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

46

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

47

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

48

Ferris 5401645B

MOUNT, SPRING, DECK LIFT - RED MODEL
(Superseded to 5401645BFS)

Note: (61" MODELS USE QTY. 2)

$7.49

$

Usually ships in 2-12 days

0

49

Ferris 5025293

WASHER, 3/8" GR. 9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

50

Ferris 5401661B

WELD, DECK LIFT LEVER, LH - RED MODEL
(Superseded to 5401661BFS)

$60.99

$

Usually ships in 2-12 days

0

51

Ferris 5025128

NUT, 3/8-16 Hex Large Serrated Flange
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

52

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

In Stock, only 2 left!

0

53

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

54

Ferris 5010114

COLLAR, 3/4" Split
(Superseded to 5010114SM)

Note: (52" MODELS)

$19.99

$

Usually ships in 2-12 days

0

55

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

56

Ferris 5401672A

WELD, DECK LIFT LEVER, RH - BLK
(Superseded to 5401672AYP)

Note: (NOT SHOWN)

$67.99

$

Usually ships in 2-12 days

0

57

Ferris 5401662B

WELD, DECK LIFT LEVER, RH - RED MODEL
(Superseded to 5401662BFS)

$60.99

$

Usually ships in 2-12 days

0

58

Ferris 5404706A

WELD, DECK STABILIZER 2500 - BLK
(Superseded to 5404706AFS)

Note: (52" MODELS)

$75.99

$

Usually ships in 2-12 days

0

59

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 5

0

60

Ferris 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

61

Ferris 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

Usually ships in 2-12 days

0

62

Ferris 5404307B

WELD, DECK LIFT SHAFT - RED

Note: (52" MODELS)

$

$

Not available

63

Ferris 5406832A

WELD, DECK STABILIZER, IS2500Z-246 - BLK
(Superseded to 5406832AA)

Note: (61" MODELS)

$160.99

$

In Stock, only 1 left!

0

64

Ferris 5025093

NUT, Hex, Jam, 3/4-16
(Superseded to 5025093SM)

Note: (61" MODELS)

$4.49

$

In Stock, only 1 left!

0

65

Ferris 5022039

BALL JOINT, 3/4-16, MALE
(Superseded to 5022039SM)

Note: (61" MODELS)

$37.99

$

In Stock, Qty 13

0

66

Ferris 5025265X20

BOLT, 3/4-16 X 2-1/2" YZ GD5
(Superseded to 5025265X20YP)

Note: (61" MODELS)

$10.99

$

Usually ships in 2-12 days

0

67

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

Note: (61" MODELS)

$3.99

$

In Stock, Qty 5

0

68

Ferris 5025284

NUT, Hex, Nylon Lock, 3/4-16
(Superseded to 5025284SM)

Note: (61" MODELS)

$3.49

$

In Stock, only 3 left!

0

69

Ferris 5406837B

WELD, DECK LIFT SHAFT - RED

Note: (20/52" DOMESTIC & 24/52" EXPORT)

$136.99

$

Usually ships in 2-12 days

0

70

Ferris 5025332

NUT, 1/2-13 Hex Side Lock
(Superseded to 5025332SM)

Note: (61" MODELS)

$3.49

$

In Stock, Qty 11

0

71

Ferris 5025018X16

Bolt, 112-20 x 2-114" GD.5

Note: (61" MODELS)

$2.49

$

Usually ships in 2-12 days

0

72

Ferris 5045176

SPACER, .52 x 1.00 x 1.75

Note: (61" MODELS)

$

$

Currently unavailable

73

Ferris 5100155

SHAFT, DECK STABILIZER
(Superseded to 5100155SM)

Note: (ALL 52" MODELS - S/N: 2014837786 & ABOVE)

$40.99

$

Usually ships in 2-12 days

0

74

Ferris 5048258

BUSHING, DECK SUPPORT
(Superseded to 5048258SM)

Note: (52" MODELS)

$11.99

$

In Stock, only 2 left!

0
