IS 2500Z (5900500) - Ferris IS2500Z Series 52" Zero-Turn Mower, 24hp Yanmar, Side-Discharge Electrical Schematic - Glow Plug Heat Circuit S/N: 2015276815 & Above Parts Diagram

IS2500Z Series 52" Zero-Turn Mower, 24hp Yanmar, Side-Discharge

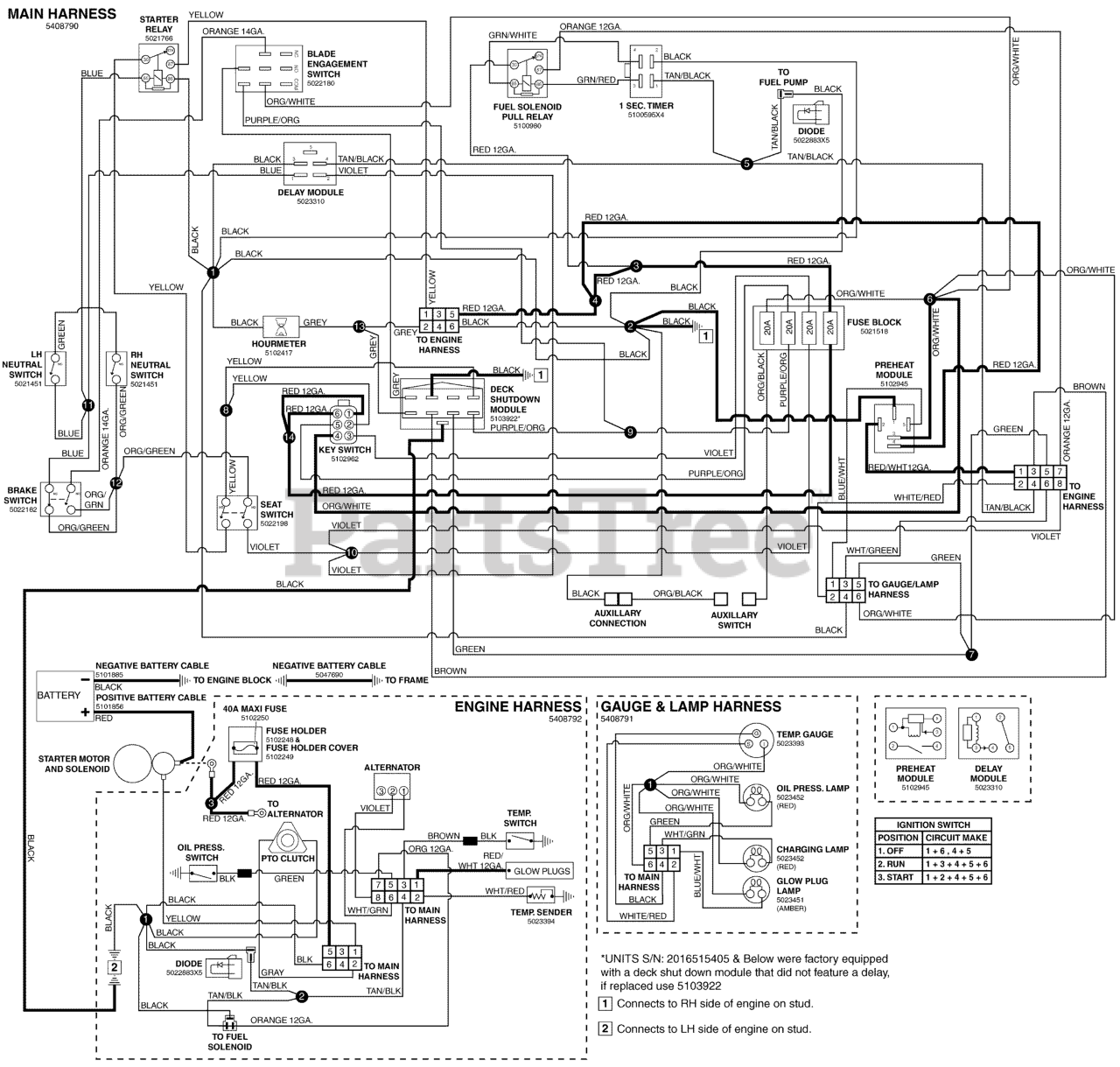

Electrical Schematic - Glow Plug Heat Circuit S/N: 2015276815 & Above Parts Diagram
