IS 2100Z (5901975) - Ferris IS2100Z Series 52" Zero-Turn Mower, 26hp Kawasaki 52" Mower Deck Group - Housing, Covers, Spindles & Blades S/N: 2017954956 & Above Parts Diagram

IS2100Z Series 52" Zero-Turn Mower, 26hp Kawasaki

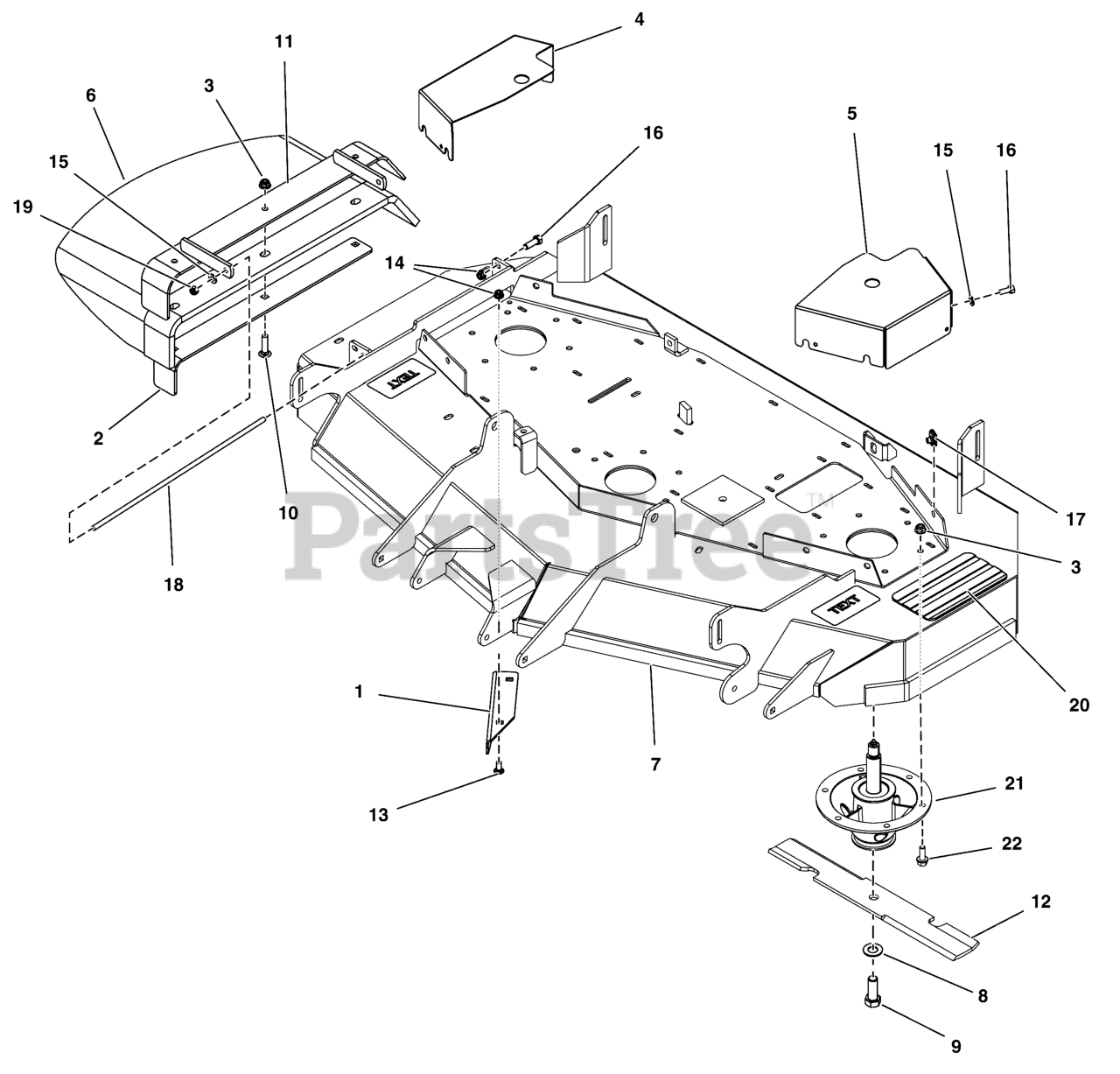

52" Mower Deck Group - Housing, Covers, Spindles & Blades S/N: 2017954956 & Above Parts Diagram

  • Title

1

Ferris 84003127

DEFLECTOR

$29.99

$

Usually ships in 2-12 days

0

2

Ferris 5413398A

SUPPORT, DISCHARGE CHUTE - BLK

$31.99

$

Usually ships in 2-12 days

0

3

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

4

Ferris 5418311B

GUARD, 52 DECK, RH - RED
(Superseded to 5418311BFS)

$32.99

$

Usually ships in 2-12 days

0

5

Ferris 5418310B

GUARD, 52 DECK, LH - RED
(Superseded to 5418310BFS)

$34.99

$

Usually ships in 2-12 days

0

6

Ferris 5413500

CHUTE, RUBBER DISCHARGE (5104442)

$216.99

$

Usually ships in 2-12 days

0

7

Ferris 5601113

DECK SHELL W/ DECALS, 2100-52 (5422057B)

Note: (USA Models)(Refer to Note: *)

$2308.99

$

Usually ships in 2-12 days

0

7

Ferris 5601120

DECK SHELL W/DECALS, 2100-52E (5422057B)

Note: (Export Models)(Refer to Note: *)

$

$

Currently unavailable

8

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 11

0

9

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolts to 120 ft-lbs (163 Nm)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

11

Ferris 5413400A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413400AA)

$66.99

$

Usually ships in 2-12 days

0

12

Ferris 5101756S

BLADE, 18 X .25 X 2.5, 1 X 3.5 (SET OF THREE)

$

$

Currently unavailable

13

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

14

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

17

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

18

Ferris 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

19

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

20

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

Usually ships in 2-12 days

0

21

Ferris 5104744

SPINDLE ASSM, CAST IRON 8.0-6 BOLT, LS
(Superseded to 5104744YP)

$198.99

$

In Stock, only 4 left!

0

22

Ferris 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

Note: (Torque spindle mounting bolts to 30 ft-lbs (41 Nm)

$3.49

$

Usually ships in 2-12 days

0
