IS 2100Z (5901840) - Ferris IS2100Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton Transaxle Drive Group Parts Diagram

IS2100Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

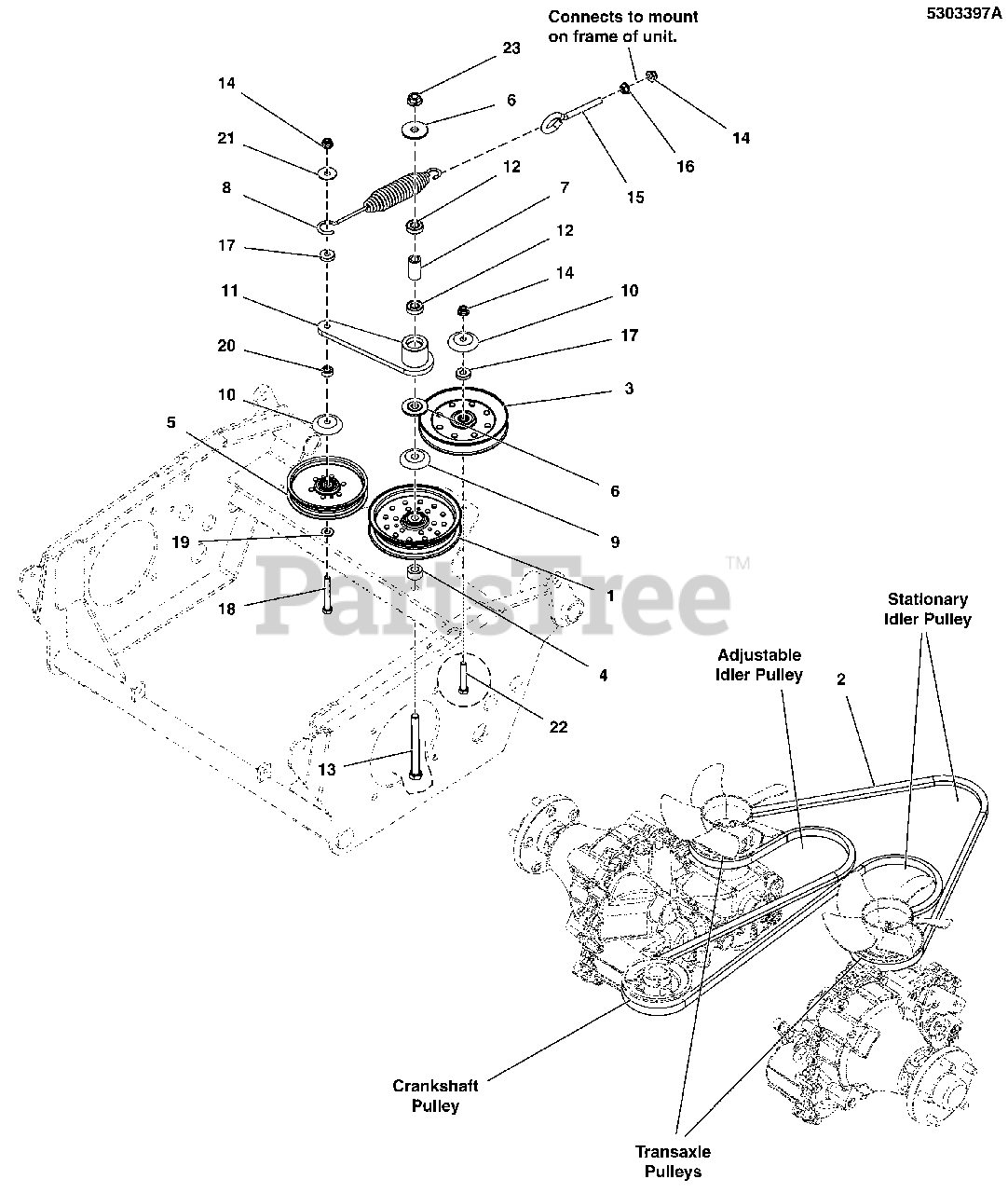

Transaxle Drive Group Parts Diagram

  • Title

1

Ferris 5101794

PULLEY, IDLER, 5" OD, 1"FACE, 5.75 FL
(Superseded to 5101794YP)

$57.99

$

In Stock, only 1 left!

0

2

Ferris 5103907

BELT, B-SEC, 123"EL, TRANSAXLE DRIVE, ARAMID, WRPD
(Superseded to 5103907YP)

$100.99

$

In Stock, only 1 left!

0

3

Ferris 5102093

PULLEY-IDLER-V, 5.83OB, .38ID, .94W, STL
(Superseded to 5102093YP)

$52.99

$

In Stock, Qty 5

0

4

Ferris 5101162

SPACER, .52 X 1.00 X .56, CZ
(Superseded to 5101162YP)

$7.49

$

In Stock, Qty 8

0

5

Ferris 5103789

PULLEY, C-SEC, V-IDLER, 6.25"ODX3/8ID
(Superseded to 5103789YP)

$85.99

$

In Stock, Qty 6

0

6

Ferris 5103262

SPACER, IDLER ARM, 1/2, PM
(Superseded to 5103262YP)

$7.99

$

In Stock, Qty 15

0

7

Ferris 5103812

SPACER, .52 X .84 X 1.53, PM
(Superseded to 5103812YP)

$7.99

$

In Stock, Qty 7

0

8

Ferris 5100632

SPRING-EXT, 1.25OD X 9.3LG X .142WR, BLK
(Superseded to 5100632YP)

Note: (Coil-to-coil measurement: 6-3/4")

$38.99

$

Usually ships in 2-12 days

0

9

Ferris 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

10

Ferris 5103787

SHIELD, BEARING PULLEY, 3/8ID, CZ
(Superseded to 5103787YP)

$7.49

$

In Stock, only 1 left!

0

11

Ferris 5412787A

WELD, IDLER ARM, PUMP DRIVE, 6.38 - BLK
(Superseded to 5412787AYP)

$79.99

$

Usually ships in 2-12 days

0

12

Ferris 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 18

0

13

Ferris 5025017X40

BOLT-1/2-13 X 5 GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 1 left!

0

14

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

15

Ferris 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

16

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

17

Ferris 5044960

SPACER, .39 X 1.00 X .25
(Superseded to 5044960SM)

$5.49

$

In Stock, Qty 7

0

18

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

19

Ferris 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

20

Ferris 5046860

SPACER, .39 X 1.00 X .50, CZ
(Superseded to 5046860SM)

$6.49

$

In Stock, only 1 left!

0

21

Ferris 5025165

WASHER-3/8 FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

22

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

Usually ships in 2-12 days

0

23

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0
