IS 2100Z (5901830) - Ferris IS2100Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton 61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

IS2100Z Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

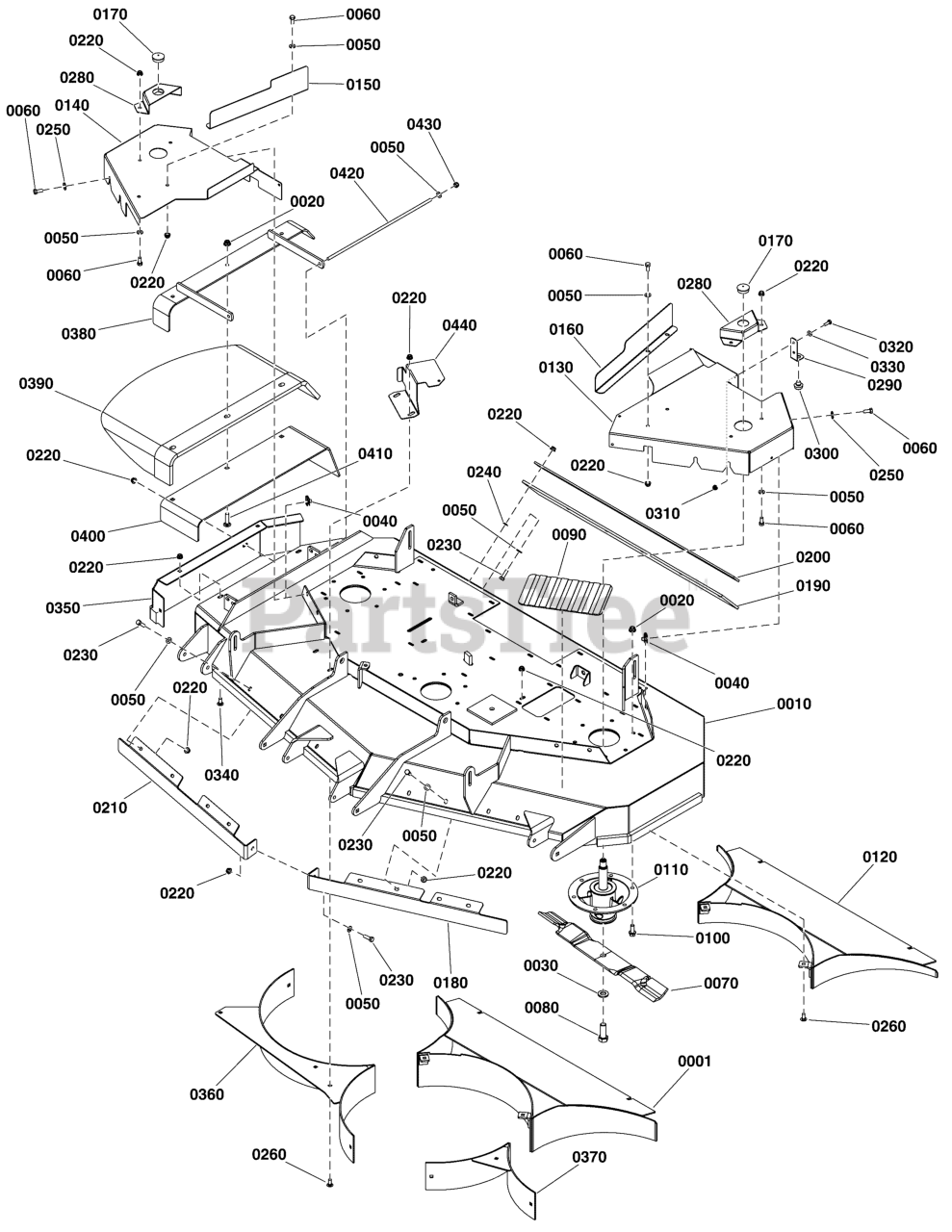

61" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

0001

Ferris 5414938A

WELD, REAR BAFFLE, 61RD TALL - BLK

$

$

Currently unavailable

0010

Ferris 5601222

DECK SHELL W/ DECALS, IS2100 61 3IN1

$2792.99

$

Usually ships in 2-12 days

0

0020

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

0030

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 11

0

0040

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

0050

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0060

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

0070

Ferris 5103305S

BLADE, SET, MULCH, 61 DECK

Note: (Set of 3 blades)

$84.99

$

Usually ships in 2-12 days

0

0080

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolt to: 120 ft-lbs (163 Nm))

$3.49

$

Usually ships in 2-12 days

0

0090

Ferris 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

0100

Ferris 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

Note: (Torque spindle mounting bolt to: 30 ft-lbs (41 Nm))

$3.49

$

Usually ships in 2-12 days

0

0110

Ferris 5104744

SPINDLE ASSM, CAST IRON 8.0-6 BOLT, LS
(Superseded to 5104744YP)

$198.99

$

In Stock, only 4 left!

0

0120

Ferris 5414787A

WELD, REAR BAFFLE, 61RD, SHRT - BLK

$234.99

$

Usually ships in 2-12 days

0

0130

Ferris 5416399B

GUARD, SPINDLE, LH, 61" CE - RED
(Superseded to 5416399BFS)

$67.99

$

Usually ships in 2-12 days

0

0140

Ferris 5416398B

GUARD, SPINDLE, RH, 61" CE - RED
(Superseded to 5416398BFS)

$64.99

$

Usually ships in 2-12 days

0

0150

Ferris 5414962B

PLATE, DECK GUARD, SHIELD, 61, RH - RED
(Superseded to 5414962BFS)

$17.99

$

Usually ships in 2-12 days

0

0160

Ferris 5414963B

PLATE, DECK GUARD, SHIELD, 61, LH - RED
(Superseded to 5414963BFS)

$18.99

$

Usually ships in 2-12 days

0

0170

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, Qty 20+

0

0180

Ferris 5414791B

BAFFLE, BLOWOUT, 61 iCD, LH - RED
(Superseded to 5414791BFS)

$32.99

$

Usually ships in 2-12 days

0

0190

Ferris 5102015

FLAP, STRIPER, 61" DECK, IS3100, S200X
(Superseded to 5102015YP)

$62.99

$

Usually ships in 2-12 days

0

0200

Ferris 5405238A

PLATE, SUPPORT - BLKV
(Superseded to 5405238AYP)

$30.99

$

Usually ships in 2-12 days

0

0210

Ferris 5414758B

BAFFLE, BLOWOUT, 61 ICD, RH - RED
(Superseded to 5414758BFS)

$34.99

$

Usually ships in 2-12 days

0

0220

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0230

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

0240

Ferris 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

0250

Ferris 5025292

WASHER, 5/16 GRADE 9, FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

0260

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

0280

Ferris 5416400B

GUARD, GREASE FITTING, CE - RED
(Superseded to 5416400BFS)

$23.99

$

Usually ships in 2-12 days

0

0290

Ferris 5419137B

BRACKET, SPNDL GUARD, 61 3IN1 - RED

$

$

Currently unavailable

0300

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

0310

Ferris 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

0320

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0330

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0340

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE, GD5, CZ
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

0350

Ferris 80075638B

WELD, BLOCKOFF PLATE, 61" TRIPLE - RED

$

$

Currently unavailable

0360

Ferris 80075627B

WELD, RH BAFFLE, MULCH, 61" TRIPLE - RED

$

$

Currently unavailable

0370

Ferris 80075624B

WELD, LH BAFFLE, MULCH, 61" TRIPLE - RED

$

$

Currently unavailable

0380

Ferris 84008047

FRAME, Chute

$91.99

$

Usually ships in 2-12 days

0

0390

Ferris 5413499

CHUTE, RUBBER DISCHARGE (5104442)

$160.99

$

Usually ships in 2-12 days

0

0400

Ferris 84008077

PLATE, Support

$129.99

$

Usually ships in 2-12 days

0

0410

Ferris 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$3.99

$

Usually ships in 2-12 days

0

0420

Ferris 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

0430

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

0440

Ferris 5419362B

GUARD, FRONT CUTTER DECK, 61" CE - RED

$

$

Currently unavailable
