IS 2100Z (5901714) - Ferris IS2100Z Series 61" Zero-Turn Mower, 30hp Kawasaki Engine & PTO Group - Kawasaki FX850V EFI Parts Diagram

IS2100Z Series 61" Zero-Turn Mower, 30hp Kawasaki

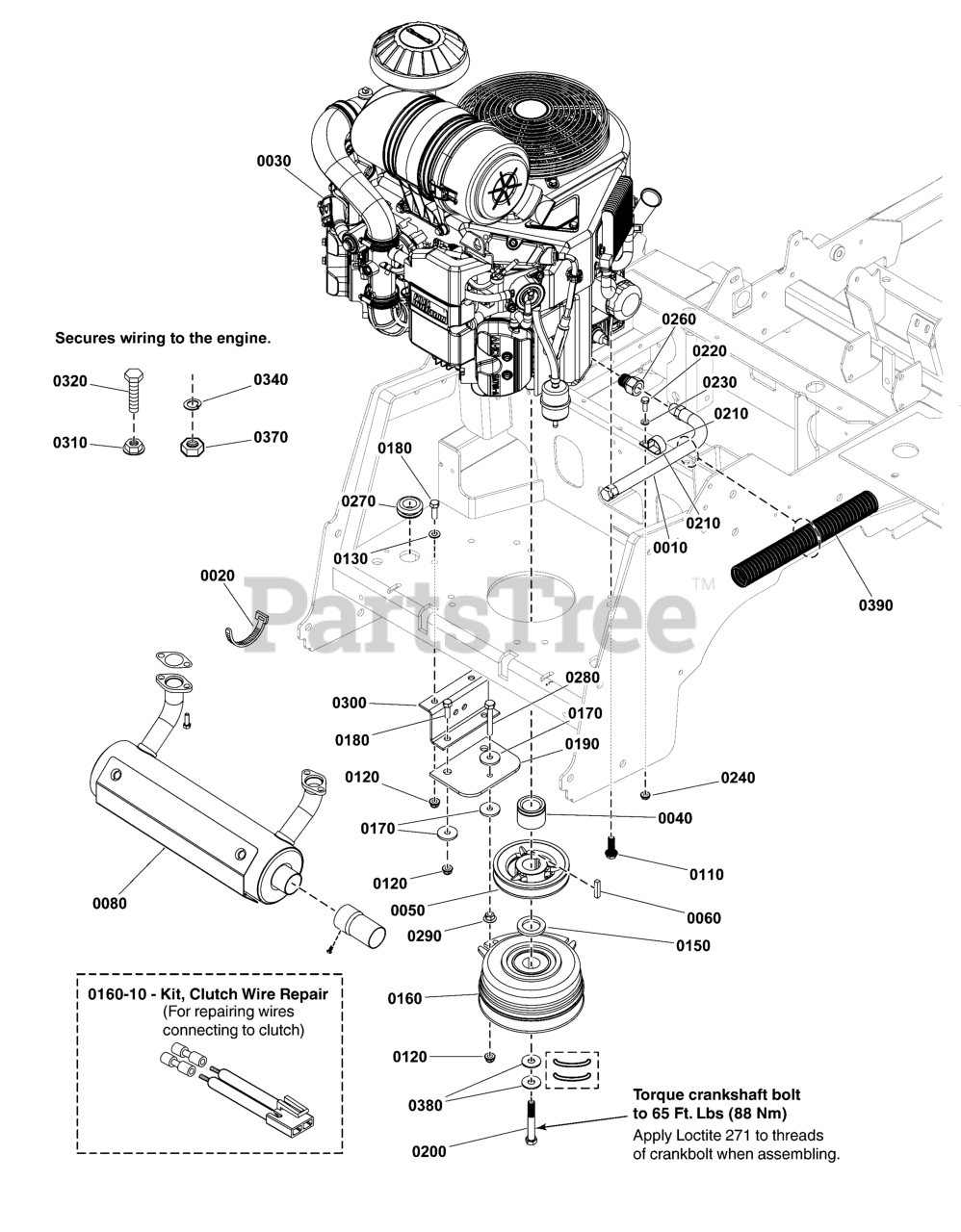

Engine & PTO Group - Kawasaki FX850V EFI Parts Diagram

  • Title

0010

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

0020

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

$3.49

$

Usually ships in 2-12 days

0

0030

ENGINE, KAWASAKI, EFI (FX850 -AS42-S)

Note: (Refer to Note: *)

$

$

Not available

0040

Ferris 5100926

SPACER, 1.13 X 1.75 X 1.35, CZ
(Superseded to 5100926YP)

$27.99

$

In Stock, only 1 left!

0

0050

Ferris 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$48.99

$

Usually ships in 2-12 days

0

0060

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

0080

Ferris 5105069

MUFFLER, 27HP KAWASAKI, 5" CAN
(Superseded to 5105069YP)

$287.99

$

Usually ships in 2-12 days

0

0110

Ferris 5025532

BOLT, HEX FLG, SER, GD5 3/8-16 X 1-1/4" PACH CZ
(Superseded to 84003591)

Note: (Torque engine mounting bolts to 17 ft-lbs (23 Nm)

$3.49

$

In Stock, only 4 left!

0

0120

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0130

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

0150

Ferris 5046904

SPACER, 1.13 x 1.75 x .25
(Superseded to 5046904YP)

$17.99

$

In Stock, only 1 left!

0

0160

Ferris 5105090

CLUTCH WARNER 200 FT-LB 1.13 X 6.323
(Superseded to 5105090YP)

$456.99

$

In Stock, only 3 left!

0

0170

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

0180

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

0190

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

0200

Ferris 5102866

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8
(Superseded to 5102866YP)

Note: (Torque crankshaft bolt to 65 ft. lbs. (88 Nm)

$5.49

$

In Stock, only 1 left!

0

0210

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

0220

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

0230

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0240

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

0260

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

0270

Ferris 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

$2.99

$

Usually ships in 2-12 days

0

0280

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

0290

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

0300

Ferris 5410367A

ANCHOR, CLUTCH, IS600-IS700 - BLK
(Superseded to 5410367AYP)

$17.99

$

In Stock, only 1 left!

0

0310

Ferris 5025355

NUT, M8-1.25 Hex Serrated Flange
(Superseded to 5025355SM)

$3.49

$

Usually ships in 2-12 days

0

0320

Ferris 5025494

BOLT, M8-1.25 X 16MM GD8.8
(Superseded to 703987)

$3.99

$

Usually ships in 2-12 days

0

0340

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

0370

Ferris 5025536

NUT, HEX, M8-1.25, CZ, GD 8.8
(Superseded to 5025536YP)

$3.49

$

Usually ships in 2-12 days

0

0380

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

$4.49

$

In Stock, only 4 left!

0

0390

Ferris 5050927X16

WIRE LOOM, 3/8 ID X 16 IN
(Superseded to 5050927X16YP)

$4.99

$

Usually ships in 2-12 days

0
