IS 2100Z (5901596) - Ferris IS2100Z Series 52" Zero-Turn Mower, 28hp Briggs & Stratton, Rear-Discharge 52" Mower Deck Group - Housing, Covers, Spindles & Blades S/N: 2017954955 & Below Parts Diagram

IS2100Z Series 52" Zero-Turn Mower, 28hp Briggs & Stratton, Rear-Discharge

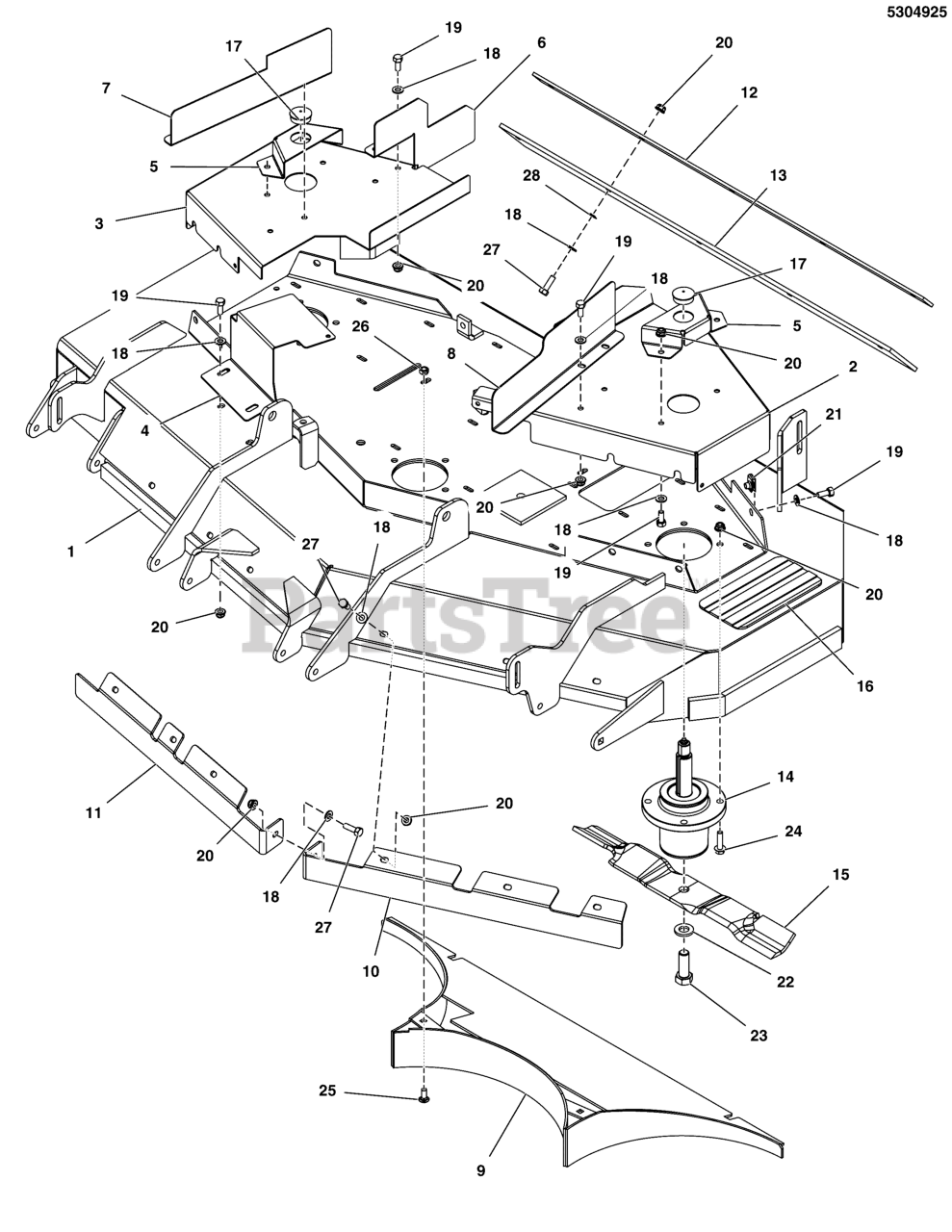

52" Mower Deck Group - Housing, Covers, Spindles & Blades S/N: 2017954955 & Below Parts Diagram

  • Title

1

Ferris 5601016

DECK SHELL W/DECALS, 2100 52RDCE (5416061B)

$2308.99

$

Usually ships in 2-12 days

0

2

Ferris 5416421B

PLATE, DECK GUARD, LH 52" CE - RED
(Superseded to 5416421BFS)

$56.99

$

Usually ships in 2-12 days

0

3

Ferris 5416420B

PLATE, DECK GUARD, RH 52" CE - RED
(Superseded to 5416420BFS)

$52.99

$

Usually ships in 2-12 days

0

4

Ferris 5416407B

GUARD, FRONT CUTTER DECK, 52" CE - RED
(Superseded to 5416407BFS)

$22.99

$

Usually ships in 2-12 days

0

5

Ferris 5416400B

GUARD, GREASE FITTING, CE - RED
(Superseded to 5416400BFS)

$23.99

$

Usually ships in 2-12 days

0

6

Ferris 5414959B

PLATE, DECK SHIELD, REAR, 52, RH - RED
(Superseded to 5414959BFS)

$13.99

$

Usually ships in 2-12 days

0

7

Ferris 5414958B

PLATE, DECK SHIELD, FRONT, 52, RH - RED
(Superseded to 5414958BFS)

$17.99

$

Usually ships in 2-12 days

0

8

Ferris 5414956B

PLATE, DECK SHIELD, FRONT, 52, LH - RED
(Superseded to 5414956BFS)

$17.99

$

Usually ships in 2-12 days

0

9

Ferris 5414603A

WELD, REAR BAFFLE, SHRT - BLK

$195.99

$

Usually ships in 2-12 days

0

10

Ferris 5414591B

BAFFLE, FRONT DISCHARGE LH - RED
(Superseded to 5414591BFS)

$30.99

$

Usually ships in 2-12 days

0

11

Ferris 5414590B

BAFFLE, FRONT DISCHARGE RH - RED
(Superseded to 5414590BFS)

$30.99

$

Usually ships in 2-12 days

0

12

Ferris 5402475A

PLATE, FLAP RETAINER, 2000 RD - BLK

$25.99

$

Usually ships in 2-12 days

0

13

Ferris 5402474

FLAP, 2000 REAR DISCHARGE
(Superseded to 5402474FS)

$85.99

$

Usually ships in 2-12 days

0

14

Ferris 5061096

SPINDLE ASSM, ALUMINUM, LONG SHAFT
(Superseded to 5061096SM)

$243.99

$

Usually ships in 2-12 days

0

15

Ferris 5103304S

BLADE SET, MULCH, 52 DECK (SET OF 3)

Note: (SET OF THREE BLADES)

$85.99

$

Usually ships in 2-12 days

0

16

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

In Stock, only 1 left!

0

17

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, Qty 20+

0

18

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

19

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

20

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

22

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 11

0

23

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolts to 120 ft-lbs (163 Nm)

$3.49

$

Usually ships in 2-12 days

0

24

Ferris 5023156

BOLT, Flange Head, 5/16-18 x 1-1/4
(Superseded to 5023156SM)

Note: (Torque spindle mounting bolts to 17 ft-lbs (23 Nm)

$3.99

$

In Stock, only 1 left!

0

25

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

26

Ferris 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

27

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

28

Ferris 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0
