IS 2100Z (5901587) - Ferris IS2100Z Series 61" Zero-Turn Mower, 26hp Briggs & Stratton Instrument Control Panel Group Parts Diagram

IS2100Z Series 61" Zero-Turn Mower, 26hp Briggs & Stratton

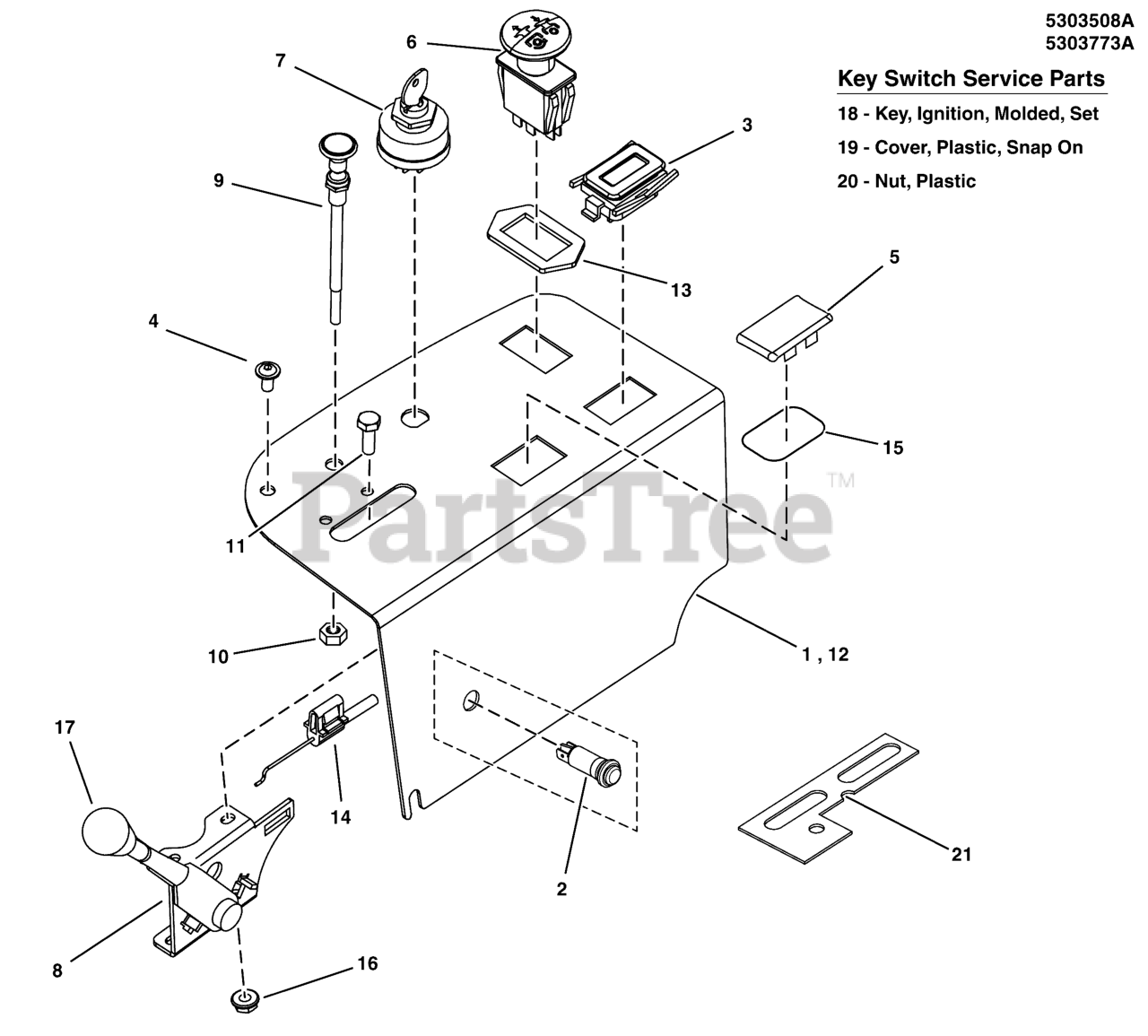

Instrument Control Panel Group Parts Diagram

  • Title

1

Ferris 5412044A

PANEL, CONTROL, IS2100Z - BLK

Note: (EFI models only)

$

$

Not available

2

Ferris 5103809

LIGHT, INDICATOR, PANEL, LED, RED
(Superseded to 5103809YP)

Note: (EFI models only)

$29.99

$

Usually ships in 2-12 days

0

3

* HOUR METER, ASSEMBLY

Note: (Refer to Note: *)

$

$

Not available

4

Ferris 5025299X4

SCREW,ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.49

$

In Stock, Qty 18

0

5

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

6

Ferris 1722887

SWITCH-PTO PUSH
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

7

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, Qty 7

0

8

Ferris 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

$48.99

$

Usually ships in 2-12 days

0

9

Ferris 5046501

CABLE, CHOKE CONTROL, 47
(Superseded to 5046501SM)

Note: (Carbuerated models only)

$55.99

$

In Stock, only 1 left!

0

10

Ferris 5025035

NUT, 3/8-24 HEX
(Superseded to 5025035SM)

Note: (Carbuerated models only)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

12

Ferris 5411933A

PANEL, Control - Black
(Superseded to 5411933AAFS)

Note: (Carbuerated models only)

$32.99

$

Usually ships in 2-12 days

0

13

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

14

Ferris 5101073

CABLE, THROTTLE, 42"
(Superseded to 5101073SM)

$33.99

$

In Stock, only 2 left!

0

15

Ferris 5022269

O-RING, 7/8 ID X 1/16 W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

17

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

$10.99

$

In Stock, only 1 left!

0

18

Ferris 5022789

KEY, IGNITION MOLDED SET

$

$

Currently unavailable

19

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

20

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

21

PLATE, THROTTLE STOP (5412643)

Note: (CE Models Only)

$

$

Not available
