IS 2100Z (5901528) - Ferris IS2100Z Series 52" Zero-Turn Mower, 28hp Briggs & Stratton, Rear-Discharge 52" Mower Deck - Housing, Covers, Spindles & Blades (Rear Discharge) Parts Diagram

IS2100Z Series 52" Zero-Turn Mower, 28hp Briggs & Stratton, Rear-Discharge

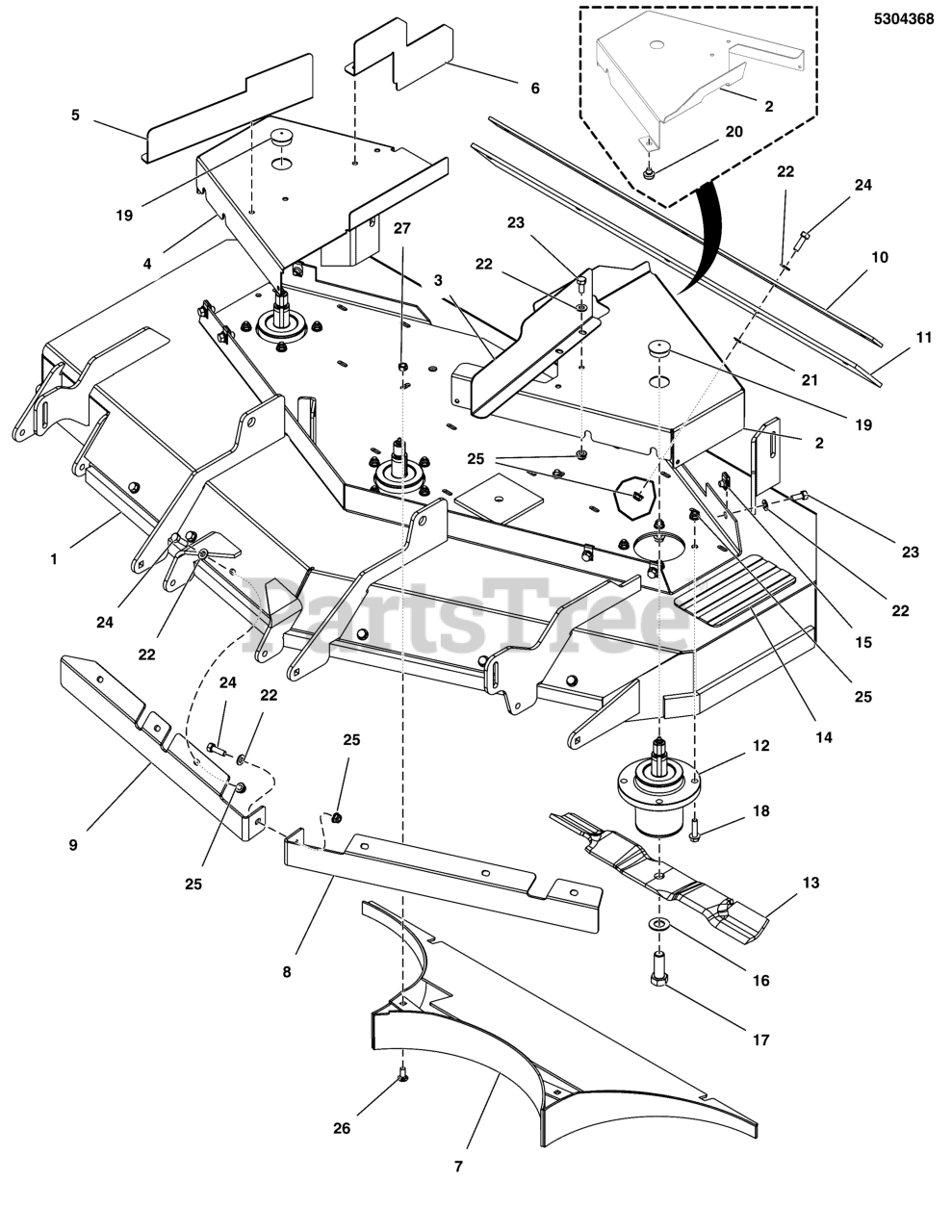

52" Mower Deck - Housing, Covers, Spindles & Blades (Rear Discharge) Parts Diagram

  • Title

1

Ferris 5600942

DECK SHELL W/DECALS,52RDCE,2100,5414779B

$2308.99

$

Usually ships in 2-12 days

0

2

Ferris 5414955B

PLATE, DECK GUARD, 52, LH - RED

$

$

Currently unavailable

3

Ferris 5414956B

PLATE, DECK SHIELD, FRONT, 52, LH - RED
(Superseded to 5414956BFS)

$17.99

$

Usually ships in 2-12 days

0

4

Ferris 5414957B

PLATE, DECK GUARD, 52, RH - RED

$

$

Currently unavailable

5

Ferris 5414958B

PLATE, DECK SHIELD, FRONT, 52, RH - RED
(Superseded to 5414958BFS)

$17.99

$

Usually ships in 2-12 days

0

6

Ferris 5414959B

PLATE, DECK SHIELD, REAR, 52, RH - RED
(Superseded to 5414959BFS)

$13.99

$

Usually ships in 2-12 days

0

7

Ferris 5414603A

WELD, REAR BAFFLE, SHRT - BLK

$195.99

$

Usually ships in 2-12 days

0

8

Ferris 5414591B

BAFFLE, FRONT DISCHARGE LH - RED
(Superseded to 5414591BFS)

$30.99

$

Usually ships in 2-12 days

0

9

Ferris 5414590B

BAFFLE, FRONT DISCHARGE RH - RED
(Superseded to 5414590BFS)

$30.99

$

Usually ships in 2-12 days

0

10

Ferris 5402475A

PLATE, FLAP RETAINER, 2000 RD - BLK

$25.99

$

Usually ships in 2-12 days

0

11

Ferris 5402474

FLAP, 2000 REAR DISCHARGE
(Superseded to 5402474FS)

$85.99

$

Usually ships in 2-12 days

0

12

Ferris 5061095

SPINDLE, ASSM, ALUMINUM - 5.25
(Superseded to 5061095FS)

$231.99

$

Usually ships in 2-12 days

0

13

Ferris 5103304S

BLADE SET, MULCH, 52 DECK

Note: (Set of 3 blades)

$85.99

$

Usually ships in 2-12 days

0

14

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

In Stock, only 1 left!

0

15

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

16

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

17

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

19

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, Qty 20+

0

20

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

21

Ferris 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

22

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

24

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

25

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

26

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

27

Ferris 80003675

NUT, 5/16-18, HEX, CNTR LK,ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0
