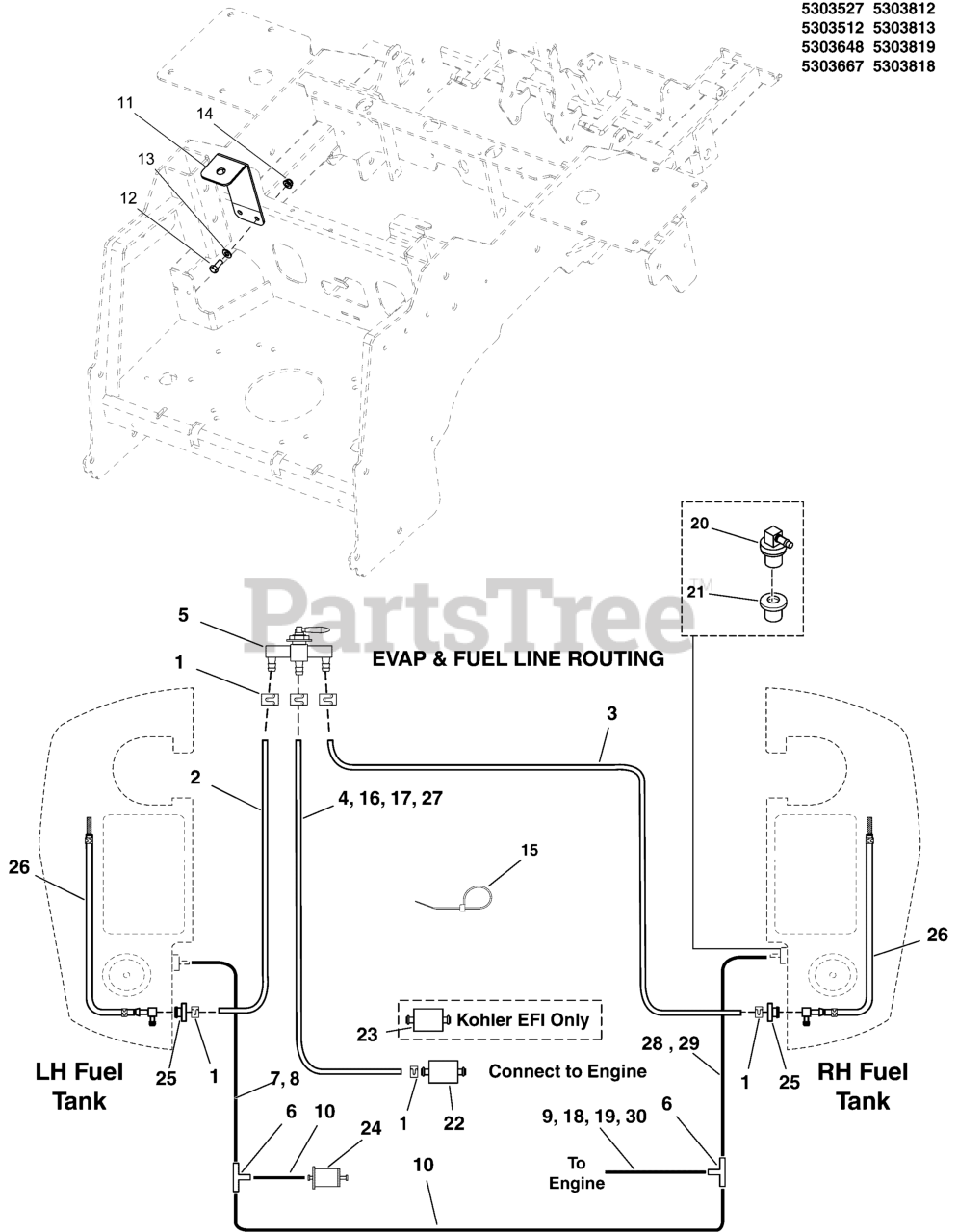

IS 2100Z (5901349) - Ferris IS2100Z Series 52" Zero-Turn Mower, 28hp Briggs & Stratton Fuel Supply Hose, Tank Replacement Parts, and EVAP Group Parts Diagram

IS2100Z Series 52" Zero-Turn Mower, 28hp Briggs & Stratton

Fuel Supply Hose, Tank Replacement Parts, and EVAP Group Parts Diagram

  • Title

1

Ferris 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

2

Ferris 5050831X11

1/4" Fuel Line, 11" Long
(Superseded to 5050831X11FS)

$6.49

$

Usually ships in 2-12 days

0

3

Ferris 5050831X27

HOSE, 1/4" FUEL, 27.00"

$

$

Not available

4

Ferris 5050831X19P5

HOSE, 1/4" FUEL, 19.50"
(Superseded to 5050831X19P5FS)

Note: (Briggs & Stratton 49R977)

$9.99

$

Usually ships in 2-12 days

0

5

Ferris 5023358

VALVE, FUEL STRAIGHT, OUTLET
(Superseded to 5023358SM)

$48.99

$

In Stock, Qty 9

0

6

Ferris 5103062

FITTING, 3/16" TEE, BARB TYPE, HDPE
(Superseded to 5103062YP)

$10.99

$

In Stock, only 2 left!

0

7

Ferris 7700552X15P5

HOSE, VAPOR, 5MM ID, 15.50 LG
(Superseded to 7700552X15P5FS)

Note: (Kawasaki & Briggs & Stratton 543777)

$5.49

$

Usually ships in 2-12 days

0

8

Ferris 7700552X23

HOSE, VAPOR, 5MM ID, 23.00 LG
(Superseded to 7700552X23FS)

Note: (Kohler EFI & Briggs & Stratton 49R977)

$7.99

$

Usually ships in 2-12 days

0

9

Ferris 7700552X32

HOSE, VAPOR, 5MM ID, 32.00 LG
(Superseded to 7700552X32YP)

Note: (Kawasaki)

$9.99

$

In Stock, only 1 left!

0

10

Ferris 7700552X6YP

HOSE-VAPOR

$3.99

$

In Stock, only 2 left!

0

11

Ferris 5412704A

BRACKET, FUEL VALVE, IS2100 - BLK
(Superseded to 5412704AYP)

$17.99

$

Usually ships in 2-12 days

0

12

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

13

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

16

Ferris 5050831X24

HOSE, FUEL, 1/4 IN, LW PRMTN, 24" LONG
(Superseded to 5050831X24YP)

Note: (Kohler EFI)

$8.99

$

Usually ships in 2-12 days

0

17

Ferris 5050831X12

1/4" Fuel Line, 12" Long
(Superseded to 5050831X12SM)

Note: (Kawasaki)

$5.99

$

Usually ships in 2-12 days

0

18

Ferris 7700552X16

HOSE, VAPOR, 5MM ID, 16.00 LG
(Superseded to 7700552X22YP)

Note: (Briggs & Stratton 543777)

$8.99

$

Usually ships in 2-12 days

0

19

Ferris 7700552X13P5

HOSE, VAPOR, 5MM ID, 13.50 LG
(Superseded to 7700552X13P5FS)

Note: (Briggs & Stratton 49R977)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 770046

REMOTE VENT ASSEMBLY

$16.99

$

In Stock, only 1 left!

0

21

Ferris 209043

GROMMET (SV)
(Superseded to 799624)

$8.99

$

In Stock, Qty 18

0

22

Ferris 5021178X3

FUEL FILTER (SV)
(Superseded to 5021178X3FS)

$12.99

$

In Stock, Qty 14

0

23

Ferris 5103790X5

FUEL FILTER, 29HP KOH, EFI, 25 050 42 (SV)

$

$

Currently unavailable

24

Ferris 80025019

FILTER, FUEL
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0

25

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

26

Ferris 5101144

PICKUP TUBE ASSEMBLY, FUEL LINE (SV)

$33.99

$

Usually ships in 2-12 days

0

27

Ferris 5050831X10

1/4" Fuel Line, 10" Long

Note: (Briggs & Stratton 543777)

$

$

Currently unavailable

28

Ferris 7700552X15P5

HOSE, VAPOR, 5MM ID, 15.50 LG
(Superseded to 7700552X15P5FS)

Note: (Kohler EFI & Briggs & Stratton 49R977)

$5.49

$

Usually ships in 2-12 days

0

29

Ferris 7700552X23

HOSE, VAPOR, 5MM ID, 23.00 LG
(Superseded to 7700552X23FS)

Note: (Kawasaki & Briggs & Stratton 543777)

$7.99

$

Usually ships in 2-12 days

0

30

Ferris 7700552X23

HOSE, VAPOR, 5MM ID, 23.00 LG
(Superseded to 7700552X23FS)

Note: (Kohler EFI)

$7.99

$

Usually ships in 2-12 days

0
