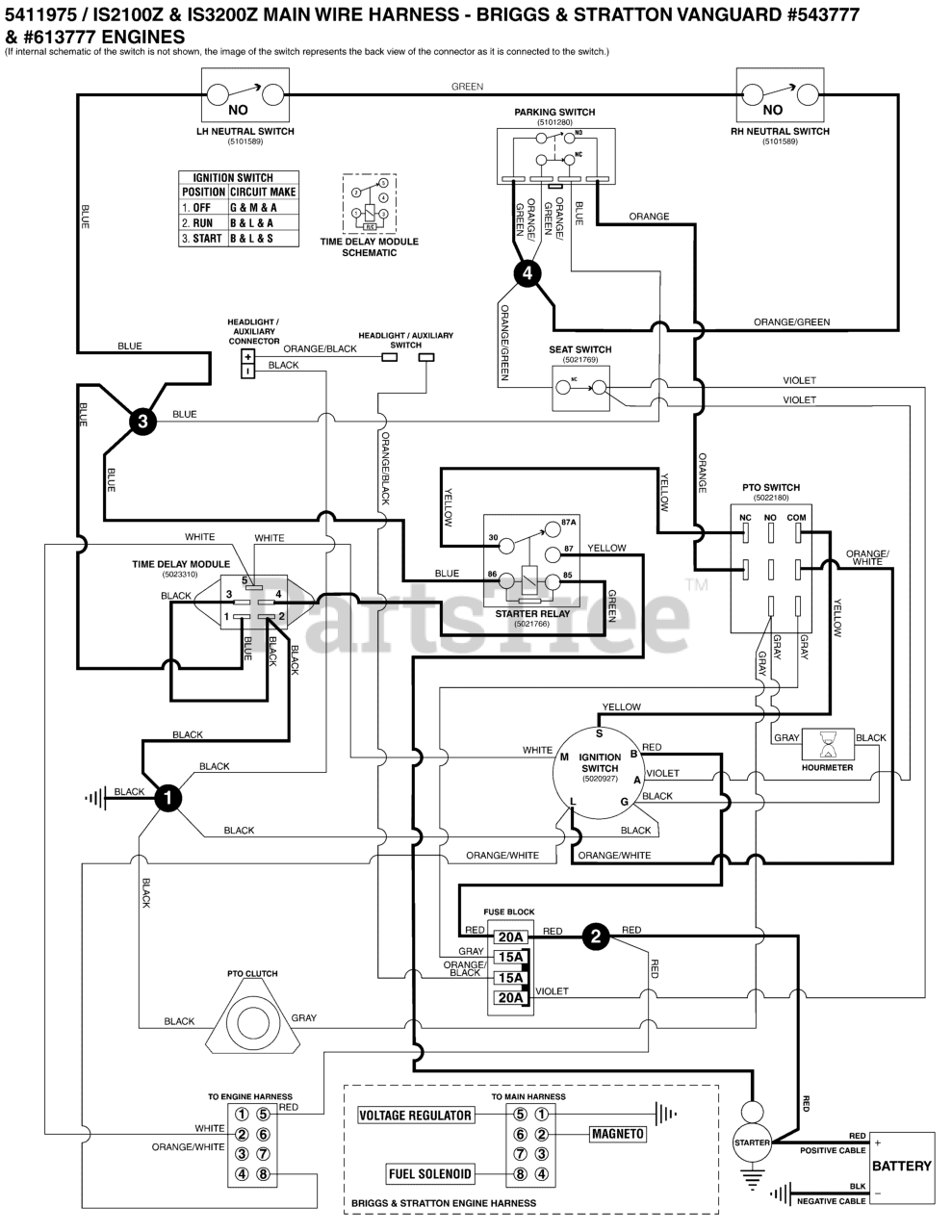

IS 2100Z (5901328) - Ferris IS2100Z Series 61" Zero-Turn Mower, 32hp Briggs & Stratton Electrical Schematic - Cranking Circuit - B&S 543777/613777 S/N: 2017360078 & Below Parts Diagram

IS2100Z Series 61" Zero-Turn Mower, 32hp Briggs & Stratton

Electrical Schematic - Cranking Circuit - B&S 543777/613777 S/N: 2017360078 & Below Parts Diagram
