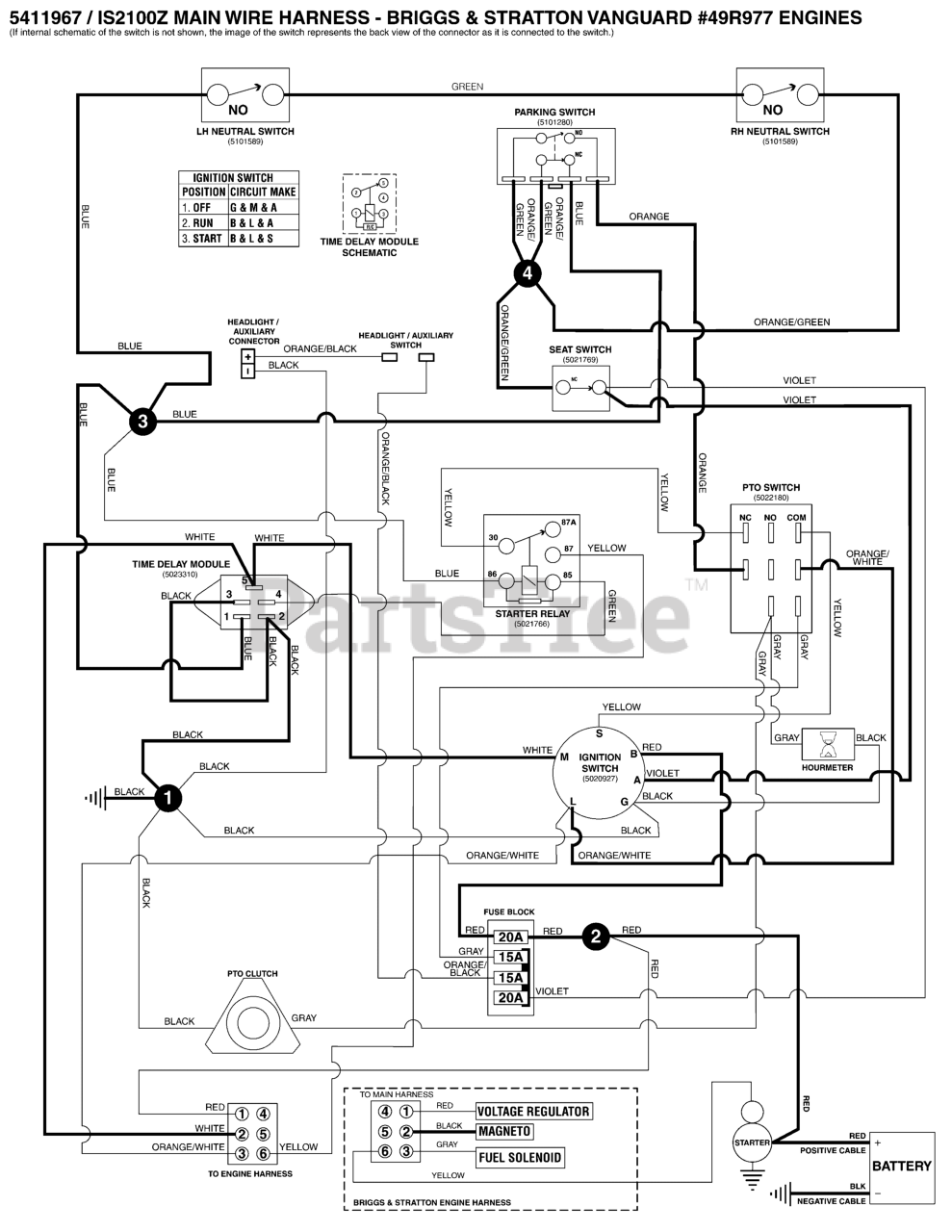

IS 2100Z (5901327) - Ferris IS2100Z Series 52" Zero-Turn Mower, 26hp Briggs & Stratton Electrical Schematic - Ign. Ground Circuit / Op Pres. - B&S 49R977 S/N: 2017360078 & Below Parts Diagram

IS2100Z Series 52" Zero-Turn Mower, 26hp Briggs & Stratton
