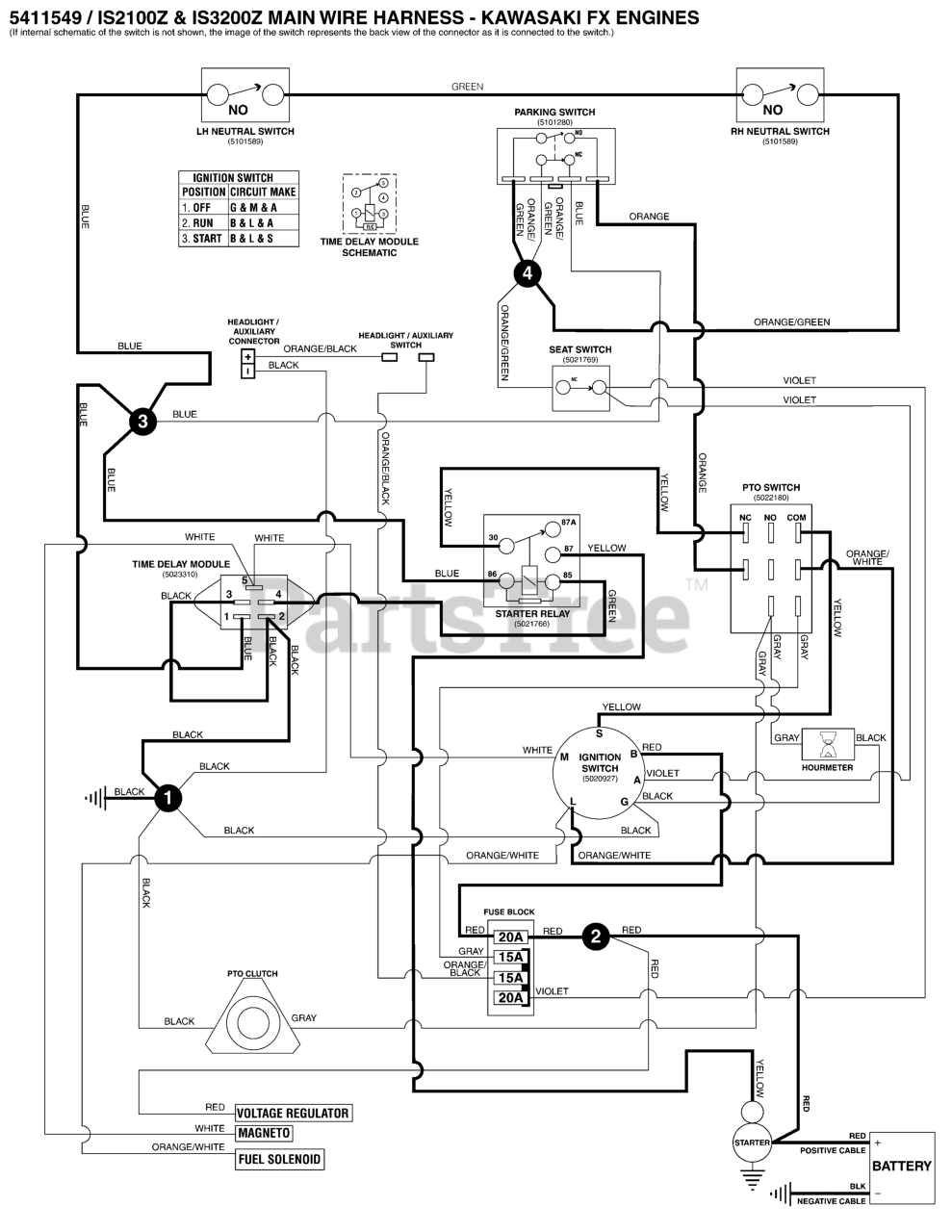

IS 2100Z (5901307) - Ferris IS2100Z Series 61" Zero-Turn Mower, 26hp Kawasaki Electrical Schematic - Cranking Circuit - Kawasaki FX S/N: 2017360078 & Below Parts Diagram

IS2100Z Series 61" Zero-Turn Mower, 26hp Kawasaki

Electrical Schematic - Cranking Circuit - Kawasaki FX S/N: 2017360078 & Below Parts Diagram
