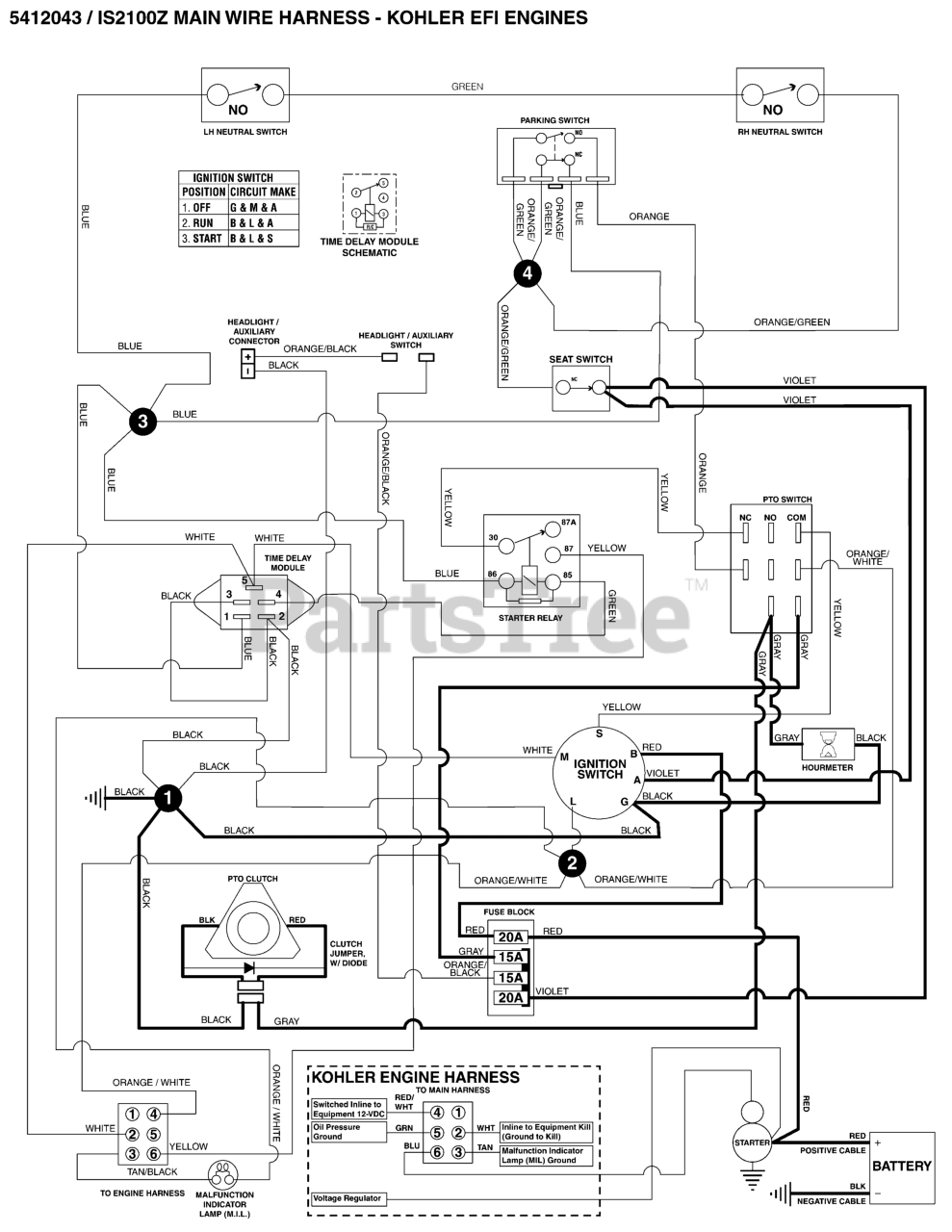

IS 2100Z (5901304) - Ferris IS2100Z Series 61" Zero-Turn Mower, 27hp KohlerElectrical Schematic - PTO Clutch Circuit - Units with Time Delay ModulesParts Diagram
IS2100Z Series 61" Zero-Turn Mower, 27hp Kohler
Electrical Schematic - PTO Clutch Circuit - Units with Time Delay ModulesParts Diagram
