IS 2000Z (5901311) - Ferris IS2000Z Series 61" Zero-Turn Mower, 32hp Briggs & Stratton Deck Lift Group - Rods & Pedals (52" & 61" S/N: 2016364870 & Above) Parts Diagram

IS2000Z Series 61" Zero-Turn Mower, 32hp Briggs & Stratton

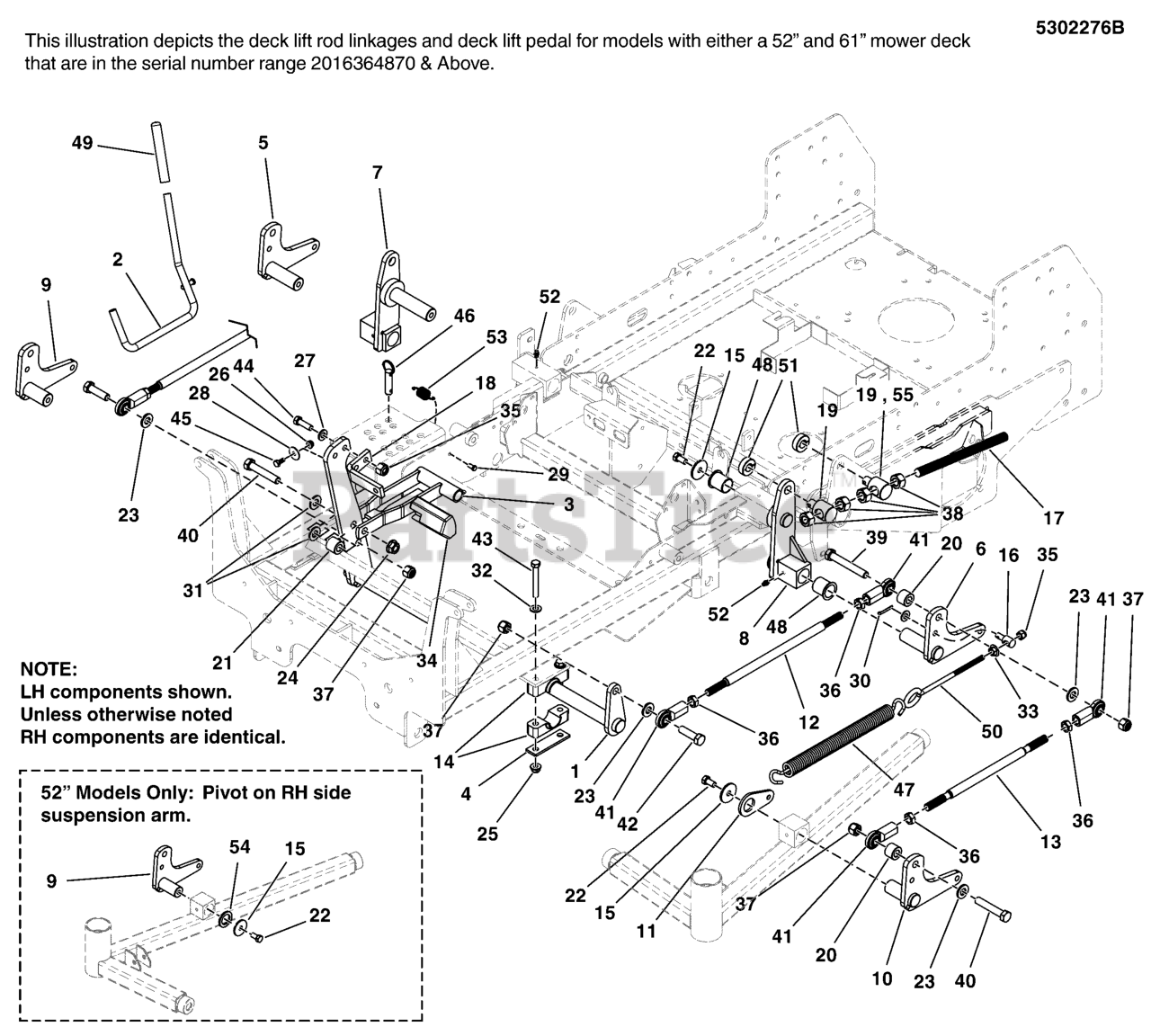

Deck Lift Group - Rods & Pedals (52" & 61" S/N: 2016364870 & Above) Parts Diagram

  • Title

1

Ferris 5410897B

WELD, DECK LIFT SHAFT - RED
(Superseded to 5410897BFS)

$186.99

$

Usually ships in 2-12 days

0

2

Ferris 5410317A

WELD, Rod, Deck Lift - BLK
(Superseded to 5410317AAFS)

$32.99

$

Usually ships in 2-12 days

0

3

Ferris 5410315A

USE 5104133 - WELD,DECK HEIGHT LNK,IS700
(Superseded to 5104133YP)

$35.99

$

Usually ships in 2-12 days

0

4

Ferris 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5401672A

WELD, DECK LIFT LEVER, RH - BLK
(Superseded to 5401672AYP)

$67.99

$

Usually ships in 2-12 days

0

6

Ferris 5401671A

WELD, DECK LIFT LEVER, LH - BLK
(Superseded to 5401671AYP)

$61.99

$

Usually ships in 2-12 days

0

7

Ferris 5401665A

WELD, REAR LIFT - RH - BLK
(Superseded to 5105173)

$77.99

$

Usually ships in 2-12 days

0

8

Ferris 5401664A

WELD, REAR LIFT - LH - BLK
(Superseded to 5105172)

$84.99

$

Usually ships in 2-12 days

0

9

Ferris 5401662B

WELD, DECK LIFT LEVER, RH - RED
(Superseded to 5401662BFS)

$60.99

$

Usually ships in 2-12 days

0

10

Ferris 5401661B

WELD, DECK LIFT LEVER, LH - RED
(Superseded to 5401661BFS)

$60.99

$

Usually ships in 2-12 days

0

11

Ferris 5401645B

MOUNT, SPRING, DECK LIFT - RED
(Superseded to 5401645BFS)

Note: (52" Models Use Qty: 1)

$7.49

$

Usually ships in 2-12 days

0

12

Ferris 5103758

ROD, DECK LIFT, 19.25, CZ
(Superseded to 5103758YP)

$37.99

$

Usually ships in 2-12 days

0

13

Ferris 5103340

ROD, 1/2-20 X 20.50", CZ
(Superseded to 5103340YP)

$29.99

$

Usually ships in 2-12 days

0

14

Ferris 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

15

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

16

Ferris 5100380

ADJUSTER, DECK HANGER
(Superseded to 5100380SM)

Note: (52" Models Use Qty: 1)

$20.99

$

In Stock, only 1 left!

0

17

Ferris 5100247

ROD, 5/8-11 X 9.00
(Superseded to 5100247SM)

$14.99

$

Usually ships in 2-12 days

0

18

Ferris 5061569A

PEDAL, FOOT - BLK
(Superseded to 5061569AA)

$40.99

$

Usually ships in 2-12 days

0

19

Ferris 5045447

PIVOT, SPRING ROD
(Superseded to 5045447SM)

Note: (52" Models Use Qty: 2)

$25.99

$

Usually ships in 2-12 days

0

20

Ferris 5045178

SPACER, .52 X 1.00 X .75, CZ
(Superseded to 5045178SM)

$7.49

$

In Stock, Qty 6

0

21

Ferris 5044673

SPACER, .52 X 1.00 X .88, CZ
(Superseded to 5044673SM)

$8.99

$

In Stock, only 1 left!

0

22

Ferris 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

24

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

25

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

26

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

27

Ferris 5025293

WASHER, 3/8 GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

28

Ferris 5025288

WASHER, 1/4 FENDER
(Superseded to 5025288YP)

$3.99

$

In Stock, only 4 left!

0

29

Ferris 5025212X4

CLEVIS PIN, 1/4 X 1/2, CZ
(Superseded to 5025212X4SM)

$3.99

$

Usually ships in 2-12 days

0

30

Ferris 5025203X6

PIN, COTTER, 1/8 X 3/4
(Superseded to 5025203X6SM)

Note: (52" Models Use Qty: 1)

$3.99

$

In Stock, only 3 left!

0

31

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

32

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

33

Ferris 5025128

NUT, 3/8-16 HEX LG. SERR FLG
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

34

Ferris 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

Usually ships in 2-12 days

0

35

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: (52" Models Use Qty: 3)

$3.49

$

In Stock, Qty 20+

0

36

Ferris 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 18

0

37

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

38

Ferris 5025040

NUT, 5/8-11 HEX
(Superseded to 5025040SM)

$3.49

$

In Stock, Qty 6

0

39

Ferris 5025017X26

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X26SM)

$5.49

$

In Stock, only 2 left!

0

40

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

41

Ferris 1702779

JOINT-BALL .500-20 THD .500ID, CLR ZINC
(Superseded to 1702779SM)

$28.99

$

In Stock, Qty 12

0

42

Ferris 5025017X14

BOLT, 1/2-13 X 1-3/4 GD5 CZ
(Superseded to 5025017X14YP)

$3.49

$

In Stock, only 4 left!

0

43

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, Qty 5

0

44

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

45

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

46

Ferris 5023498

PIN, HITCH, 1/2 X 2.00 OAL, YP
(Superseded to 5023498SM)

$8.99

$

In Stock, only 2 left!

0

47

Ferris 5023355

SPRING-EXT, 1.00 ODX13.25LGX.177WR, BLK
(Superseded to 5023355SM)

Note: (52" Models Use Qty: 1)

$49.99

$

Usually ships in 2-12 days

0

48

Ferris 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

49

Ferris 5021880

GRIP, FOAM, .475 X 4.35 X .095
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

50

Ferris 5021811

EYE BOLT, 3/8-16 X 8, 3THRD, 1EYE, CZ
(Superseded to 5021811SM)

Note: (52" Models Use Qty: 1)

$8.49

$

In Stock, Qty 12

0

51

Ferris 5020441

COLLAR, 5/8 SPLIT
(Superseded to 5020441SM)

$14.99

$

In Stock, Qty 20+

0

52

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

53

Ferris 5010213

SPRING-EXT, .740 ODX2.025LGX.072WR, BLK
(Superseded to 5010213YP)

$14.99

$

Usually ships in 2-12 days

0

54

Ferris 5020929

SHIM, 1.0 X 1.5 X 0.125
(Superseded to 84005968)

Note: (52" Models Only)

$2.99

$

In Stock, Qty 9

0

55

Ferris 5045856

PIVOT, SPRING ROD

Note: (52" Models Only)

$

$

Currently unavailable
