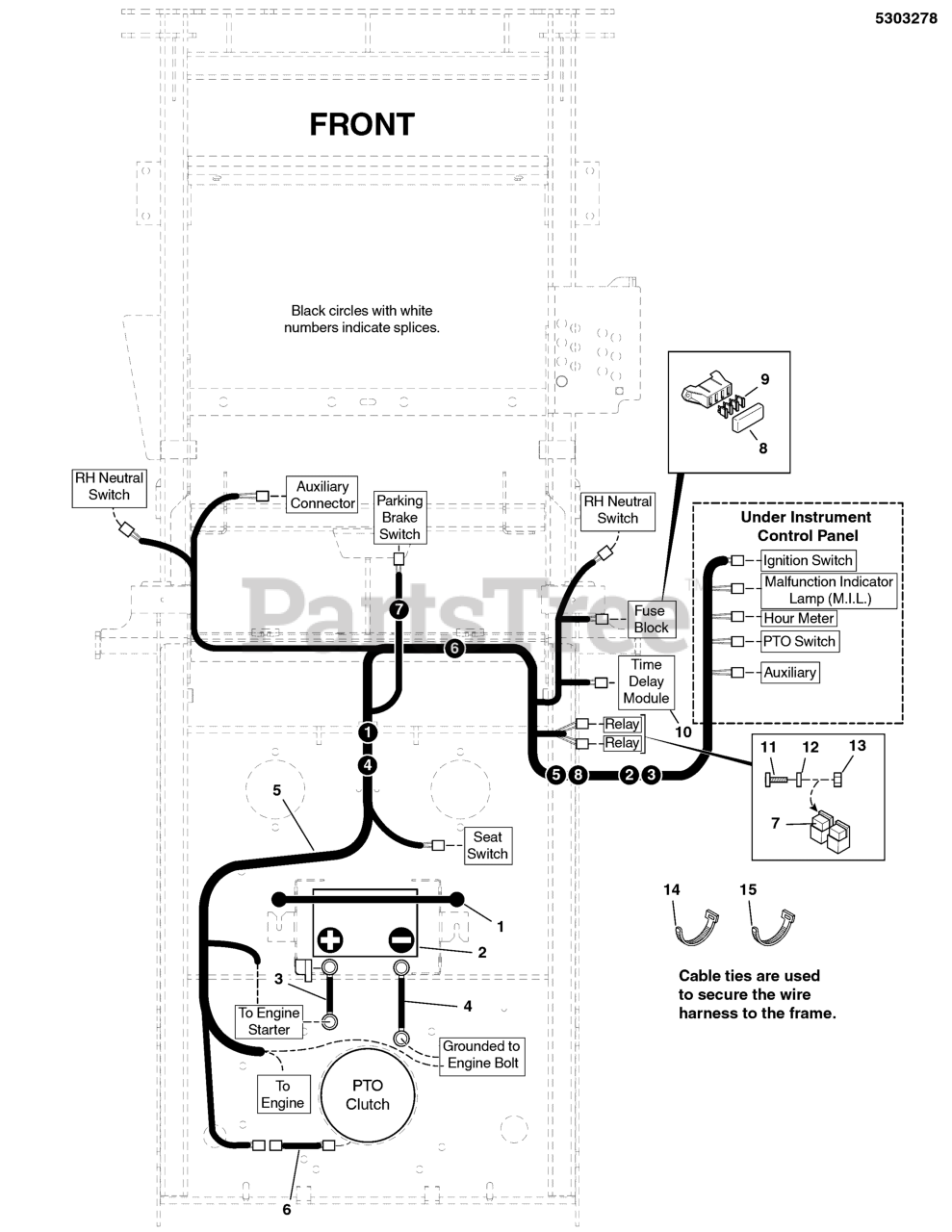

IS 2000Z (5901234) - Ferris IS2000Z Series 61" Zero-Turn Mower, 29hp Kohler Electrical Group - Kohler EFI Parts Diagram

IS2000Z Series 61" Zero-Turn Mower, 29hp Kohler

Electrical Group - Kohler EFI Parts Diagram

  • Title

1

Ferris 1722009

STRAP-BLACK RUBB
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

2

BATTERY, WET ( BCIU1, 350 CCA)

$

$

Not available

3

Ferris 5021405

BATTERY CABLE, POSITIVE, 22
(Superseded to 5021405SM)

$18.99

$

Usually ships in 2-12 days

0

4

Ferris 5044014

BATTERY CABLE, NEGATIVE, 10
(Superseded to 5044014SM)

$14.99

$

Usually ships in 2-12 days

0

5

Ferris 5410625

WIRE HARNESS, MAIN, KOHLER EFI, 2000

$539.99

$

Usually ships in 2-12 days

0

6

Ferris 5103811

CLUTCH JUMPER W/DIODE, WARNER

$34.99

$

Usually ships in 2-12 days

0

7

Ferris 5021766

RELAY, 12V, 40A
(Superseded to 5021766SM)

$24.99

$

Usually ships in 2-12 days

0

8

COVER, VINYL FUSEBLOCK

Note: (See Instrument Control Panel Group)

$

$

Not available

9

FUSE, ATO, 20 AMP

Note: (See Instrument Control Panel Group)

$

$

Not available

10

Ferris 5023310

MODULE, TIME DELAY
(Superseded to 5023310SM)

$114.99

$

Usually ships in 2-12 days

0

11

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

13

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

14

Ferris 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

15

Ferris 5021030

TIE,SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0
