IS 2000Z (5901190) - Ferris IS2000Z Series 52" Zero-Turn Mower, 20hp Yanmar, Rear-Discharge Wheel & Tire Group Parts Diagram

IS2000Z Series 52" Zero-Turn Mower, 20hp Yanmar, Rear-Discharge

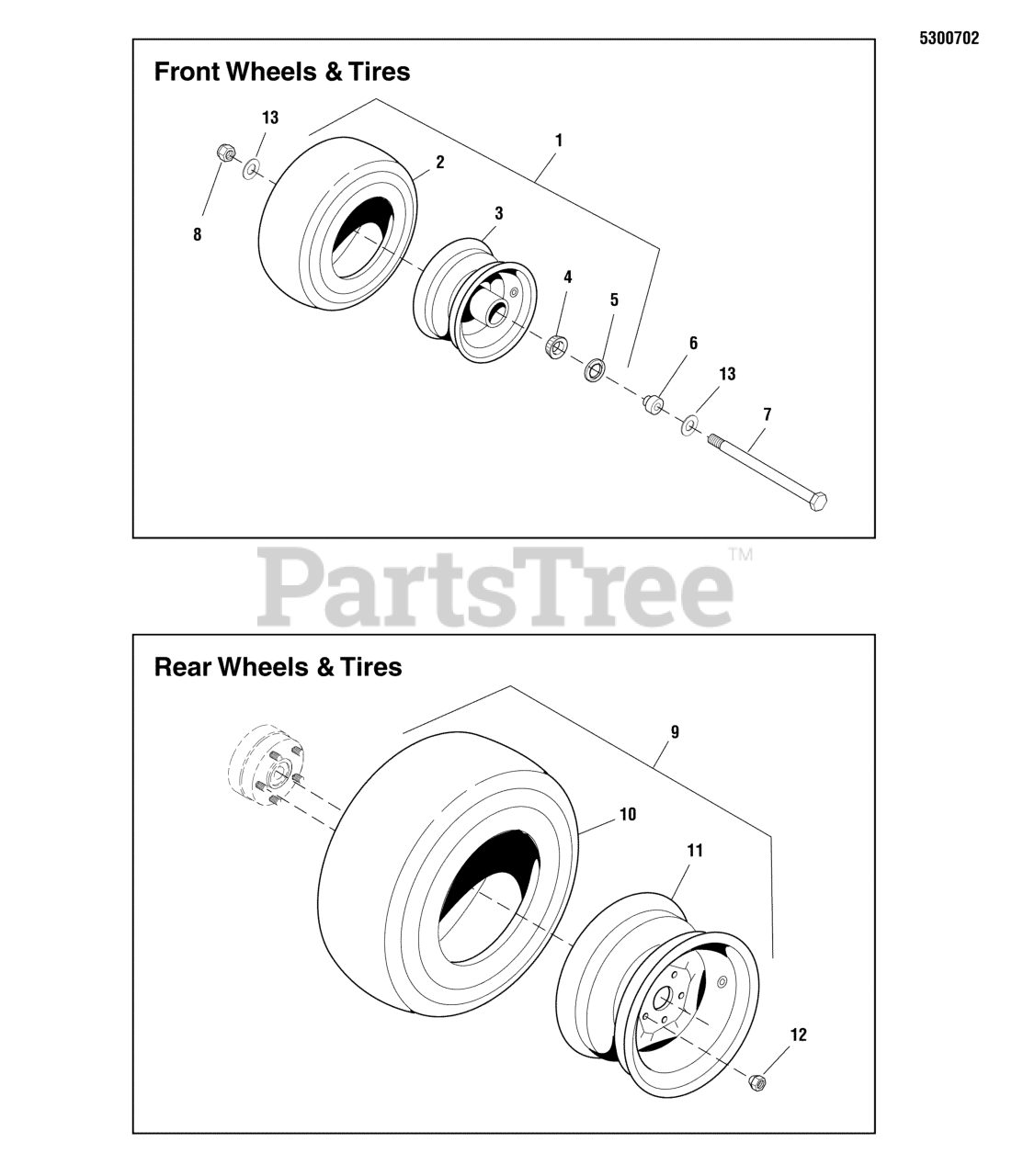

Wheel & Tire Group Parts Diagram

  • Title

1

Ferris 5022631S

TIRE, CASTER, 13 X 5.00-6
(Superseded to 5022631SSM)

Note: (Includes Ref No. 2 - 7 & 14)

$168.99

$

Usually ships in 2-12 days

0

1

Ferris 5023280

* FLAT-FREE TIRE ASSEMBLY, 13 x 5.0 - 6
(Superseded to 5023280SM)

Note: (Includes Ref No. 4 & 5, see foot note.)

$217.99

$

In Stock, only 2 left!

0

2

Ferris 5022029X1

TIRE, 13 x 5.0 - 6

$112.99

$

Usually ships in 2-12 days

0

3

Ferris 5022631SX1

WHEEL ASSEMBLY, for 13 x 5.0 - 6 Tire, Complete
(Superseded to 5022631SX1SM)

Note: (Includes Ref No. 4 & 5)

$102.99

$

Usually ships in 2-12 days

0

4

Ferris 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

Note: (2 per tire)

$12.99

$

In Stock, Qty 20+

0

5

Ferris 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

Note: (2 per tire)

$9.99

$

In Stock, Qty 20+

0

6

Ferris 5047103

ADAPTER, CASTER AXLE, CZ
(Superseded to 5047103SM)

Note: (2 per tire)

$10.99

$

In Stock, Qty 20+

0

7

Ferris 5025017X64

BOLT, 1/2-13 X 8" GD5 YZ
(Superseded to 5025017X64SM)

$10.99

$

In Stock, only 1 left!

0

8

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

9

Ferris 5100006

TIRE ASSM, 22 X 10.00-10

Note: (Includes Ref. Nos 10 and 11.)

$337.99

$

Usually ships in 2-12 days

0

10

Ferris 5100006X1

TIRE, 22 X 10.0 -10
(Superseded to 5100006X1FS)

$192.99

$

Usually ships in 2-12 days

0

11

Ferris 5023369X1

RIM-10X7-5-4.5 SOLID
(Superseded to 5023369X1SM)

$192.99

$

Usually ships in 2-12 days

0

12

Ferris 5020601

NUT, 1/2-20, FOR WHEEL BOLT SILVER
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

13

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

14

Ferris 5022631SX4

BEARING, RACE
(Superseded to 5022631SX4SM)

Note: (Not Shown)

$10.99

$

In Stock, Qty 20+

0
