IS 2000Z (5901187) - Ferris IS2000Z Series 48" Zero-Turn Mower, 20hp Yanmar, Side-Discharge Hood & Radiator Accessories Group Parts Diagram

IS2000Z Series 48" Zero-Turn Mower, 20hp Yanmar, Side-Discharge

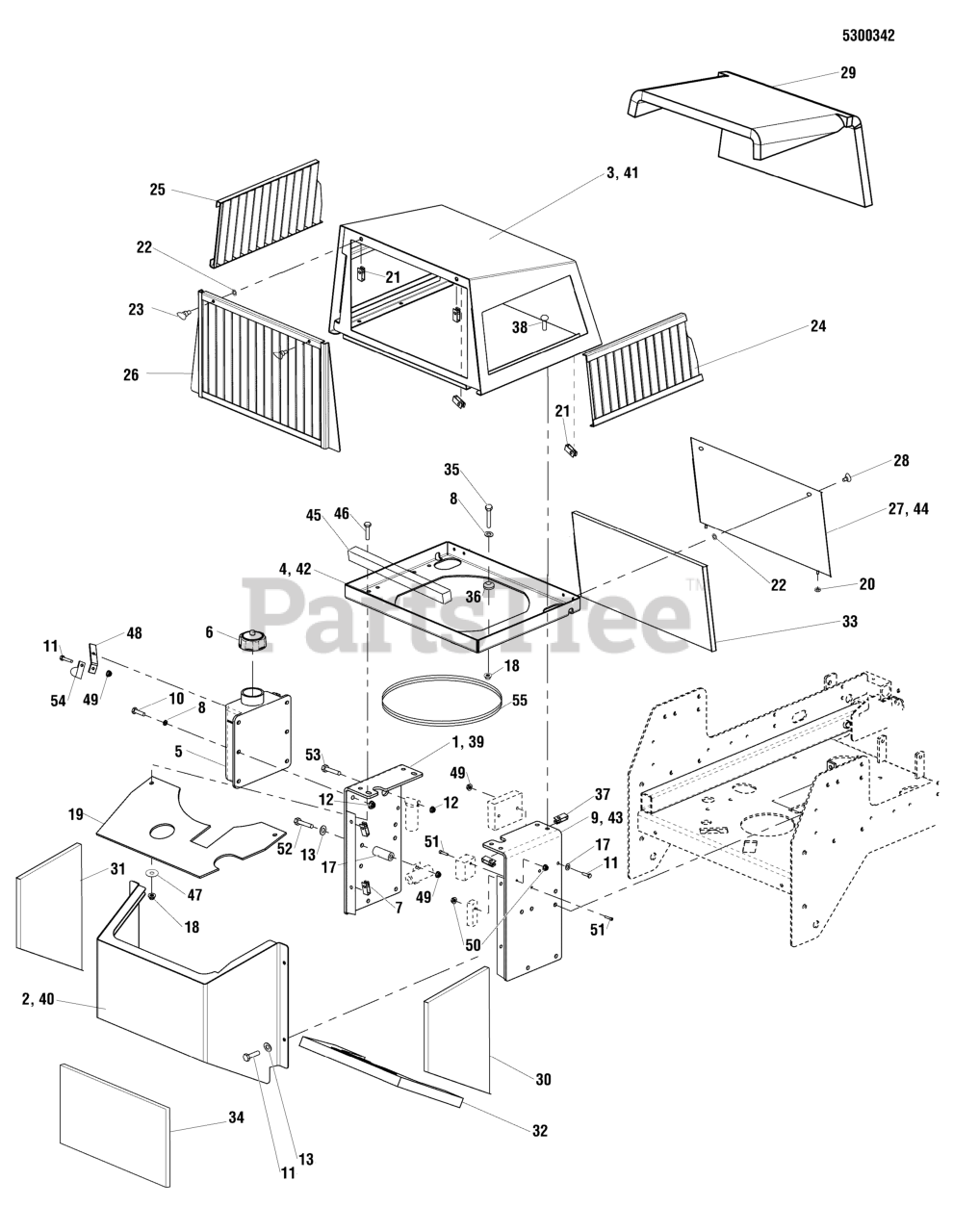

Hood & Radiator Accessories Group Parts Diagram

  • Title

1

Ferris 5401897B

WELD, RADIATOR MT, LH - RED MODEL

$159.99

$

Usually ships in 2-12 days

0

2

Ferris 5402428B

WELD, FRAME, HOOD, REAR - RED MODEL

$

$

Currently unavailable

3

Ferris 5402424B

WELD, FRAME, HOOD, YANMAR - RED MODEL

$391.99

$

Usually ships in 2-12 days

0

4

Ferris 5401929B

WELD, MOUNT, RADIATOR - RED MODEL

$83.99

$

Usually ships in 2-12 days

0

5

Ferris 5061712

TANK, HYDRAULIC, ASSEMBLY
(Superseded to 5061712SM)

$154.99

$

In Stock, Qty 5

0

6

Ferris 5100017

CAP, HYDRAULIC
(Superseded to 5100017SM)

$23.99

$

In Stock, only 1 left!

0

7

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2"
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

9

Ferris 5402482B

WELD, MOUNT, RADIATOR, RH - RED MODEL

$

$

Currently unavailable

10

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

11

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

12

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

14

Ferris 5100568

HOSE, COOLANT - YANMAR DIESEL

Note: (Right Side Radiator Hose)

$54.99

$

Usually ships in 2-12 days

0

15

Ferris 5100569

HOSE, COOLANT - Z - YANMAR DIESEL

Note: (Left Side Radiator Hose)

$75.99

$

Usually ships in 2-12 days

0

16

Ferris 5023447

CLAMP, SS HOSE, 1-3/4"
(Superseded to 5023447FS)

Note: (For Radiator Hoses)

$4.99

$

Usually ships in 2-12 days

0

17

Ferris 5044959

SPACER, .20 X .38 X 1.25
(Superseded to 5044959FS)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

19

Ferris 5402432

FLAP, RUBBER, YANMAR

$63.99

$

Usually ships in 2-12 days

0

20

Ferris 5100895

GROMMET, 3/8"

$2.99

$

Usually ships in 2-12 days

0

21

Ferris 5025465

RECEPTACLE, #12 WING HEAD SCREW

$2.49

$

Usually ships in 2-12 days

0

22

Ferris 5025466

RETAINER, #12 WING HEAD SCREW

$

$

Currently unavailable

23

Ferris 5025467

SCREW, WING HEAD

$

$

Currently unavailable

24

Ferris 5100917

SCREEN, HOOD, TOP, RH

$242.99

$

Usually ships in 2-12 days

0

25

Ferris 5100916

SCREEN, HOOD, TOP, LH

$256.99

$

Usually ships in 2-12 days

0

26

Ferris 5100601

PRESCREEN RADIATOR, YANMAR DIESEL ENGINE

$262.99

$

Usually ships in 2-12 days

0

27

Ferris 5402422B

WELD, HOOD, FRONT - RED MODEL

$

$

Currently unavailable

28

Ferris 5025464

SCREW, WING HEAD

$

$

Currently unavailable

29

Ferris 5402417

FOAM, SOUND BAFFLE, TOP, YANMAR

$142.99

$

Usually ships in 2-12 days

0

30

Ferris 5402433

FOAM, SOUND BAFFLE, REAR, YANMAR

$28.99

$

Usually ships in 2-12 days

0

31

Ferris 5402435

FOAM, SOUND BAFFLE, REAR, YANMAR

$28.99

$

Usually ships in 2-12 days

0

32

Ferris 5402436

FOAM, SOUND BAFFLE, REAR, YANMAR

$39.99

$

Usually ships in 2-12 days

0

33

Ferris 5402418

FOAM, SOUND BAFFLE, YANMAR

$47.99

$

Usually ships in 2-12 days

0

34

Ferris 5402434

FOAM, SOUND BAFFLE,

$37.99

$

Usually ships in 2-12 days

0

35

Ferris 5025011X34

BOLT, 5/16-18 X 4.25" GD5 YZ

$3.99

$

Usually ships in 2-12 days

0

36

Ferris 5100586

ISO MOUNT, YANMAR DIESEL, RADIATOR

$16.99

$

Usually ships in 2-12 days

0

37

Ferris 5025452

U-NUT, MULTI-THREADED, 5/16-18
(Superseded to 5025452YP)

$5.49

$

Usually ships in 2-12 days

0

38

Ferris 5025307

SCREW, 5/16-18 X 1-1/4" GD5

$

$

Currently unavailable

39

Ferris 5401897C

WELD, RADIATOR MT, LH - ORANGE MODEL

$

$

Currently unavailable

40

Ferris 5402428C

WELD, FRAME, HOOD, REAR - ORANGE MODEL

$260.99

$

Usually ships in 2-12 days

0

41

Ferris 5402424C

WELD, FRAME, HOOD, YANMAR - ORANGE MODEL

$391.99

$

Usually ships in 2-12 days

0

42

Ferris 5401929C

WELD, MOUNT, RADIATOR - ORANGE MODEL

$118.99

$

Usually ships in 2-12 days

0

43

Ferris 5402482C

WELD, MOUNT, RADIATOR, RH - ORANGE MODEL

$

$

Currently unavailable

44

Ferris 5402422C

WELD, HOOD, FRONT - ORANGE MODEL

$64.99

$

Usually ships in 2-12 days

0

45

Ferris 5050913X12P25

FOAM ,3/4" THICK X 1" WIDE - 12.25"

$9.99

$

Usually ships in 2-12 days

0

46

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

47

Ferris 5025165

WASHER, 3/8" FENDER
(Superseded to 5025165SM)

$3.99

$

In Stock, only 2 left!

0

48

Ferris 5401736A

BRACKET, HOSE - BLK
(Superseded to 5401736AYP)

$7.99

$

Usually ships in 2-12 days

0

49

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

50

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

51

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

52

Ferris 5025010X16

BOLT, 1/4-20 X 2", GD5
(Superseded to 5025010X16FS)

$2.99

$

Usually ships in 2-12 days

0

53

Ferris 5025011X22

BOLT, 5/16-18 X 2-3/4, GD 5, YZ
(Superseded to 5025011X22YP)

$3.49

$

Usually ships in 2-12 days

0

54

Ferris 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

55

Ferris 5050926X43P50

SEAL, WIPER, CLIP ON 43.50

$55.99

$

Usually ships in 2-12 days

0
