IS 2000Z (5900839) - Ferris IS2000Z Series 52" Zero-Turn Mower, 25hp Kawasaki 52" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

IS2000Z Series 52" Zero-Turn Mower, 25hp Kawasaki

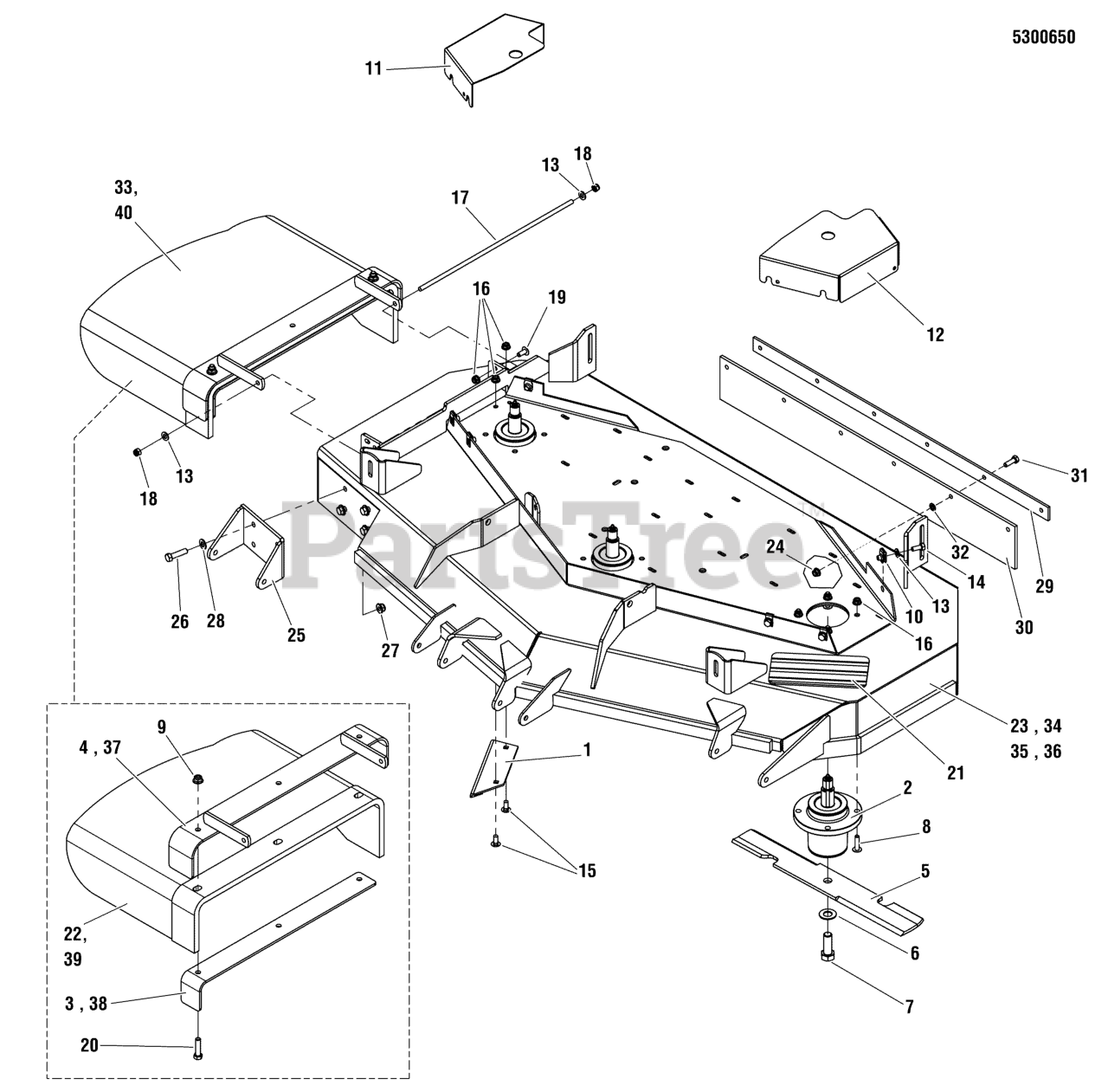

52" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title
1

Ferris 5405557A

PLATE, DEFLECTOR, 52" - BLK
(Superseded to 5405557AAFS)

$19.99

$

Usually ships in 2-12 days

0

2

Ferris 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer Sold Seperately)

$231.99

$

Usually ships in 2-12 days

0

3

Ferris 5402360A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5402360AYP)

Note: (S/N: 2016592729 & Below)

$43.99

$

Usually ships in 2-12 days

0

4

Ferris 5061293B

WELD, FRAME, CHUTE, 61 - RED

Note: (S/N: 2016592729 & Below)

$34.99

$

Usually ships in 2-12 days

0

5

Ferris 5101756S

BLADE, 18 X .25 X 2.5, 1 X 3.5 (SET OF THREE)

$

$

Currently unavailable

6

Ferris 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 11

0

7

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

9

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

10

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

11

Ferris 5405604B

GUARD, 52" DECK, IS2000, RH - RED
(Superseded to 5405604BFS)

$28.99

$

In Stock, only 2 left!

0

12

Ferris 5401605B

GUARD, 52" DECK, IS2000 - LH - RED
(Superseded to 5401605BFS)

$27.99

$

In Stock, only 1 left!

0

13

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

15

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

16

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

17

Ferris 5061300

ROD MOUNT, CHUTE 61"
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

18

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

19

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

20

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

Usually ships in 2-12 days

0

22

Ferris 5402403

CHUTE, DISCHARGE, RUBBER, 61/72, BENT
(Superseded to 5402403SM)

Note: (S/N: 2016592729 & Below)

$186.99

$

Usually ships in 2-12 days

0

23

Ferris 5600335

DECK SHELL W/ DECALS,200052SD,DOM716&DWN

Note: (Domestic Models - S/N: 2016395716 & Below)

$2308.99

$

Usually ships in 2-12 days

0

24

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5408810B

PLATE, BRACKET, ANTI SCALP - RED
(Superseded to 5408810BFS)

$46.99

$

Usually ships in 2-12 days

0

26

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

27

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

28

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

29

Ferris 5405238A

PLATE, SUPPORT - BLK
(Superseded to 5405238AYP)

$30.99

$

Usually ships in 2-12 days

0

30

Ferris 5102015

FLAP, STRIPER, 52 DECK
(Superseded to 5102015YP)

$62.99

$

Usually ships in 2-12 days

0

31

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

32

Ferris 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

33

PURCHASE INDIVIDUAL REPLACEMENT PARTS

Note: (S/N: 2016592729 & Below)

$

$

Not available

34

Ferris 5600672

DECK SHELL W/DECALS,200052SD,EXP716&DWN

Note: (Export Models - S/N: 2016395716 & Below)

$

$

Currently unavailable

35

Ferris 5600673

DECK SHELL W/DECALS,200052SD,DOM717&UP

Note: (Domestic Models - S/N: 2016395717 & Above)

$1880.99

$

Usually ships in 2-12 days

0

36

Ferris 5600674

DECK SHELL W/DECALS,200052SD,EXP717&UP

Note: (Export Models - S/N: 2016395717 & Above)

$

$

Currently unavailable

37

Ferris 5410498A

WELD, FRAME, CHUTE, 52 - BLK
(Superseded to 5410498AYP)

Note: (S/N: 2016592730 & Above)

$69.99

$

Usually ships in 2-12 days

0

38

Ferris 5410404A

SUPPORT, DISCHARGE CHUTE, 52 - BLK
(Superseded to 5410404AYP)

Note: (S/N: 2016592730 & Above)

$24.99

$

Usually ships in 2-12 days

0

39

Ferris 5410575YP

CHUTE, Discharge

Note: (S/N: 2016592730 & Above)

$204.99

$

In Stock, only 1 left!

0

40

Ferris 5600658

KIT, DISCHARGE CHUTE, 52" - RED

Note: (S/N: 2016592730 & Above)

$

$

Currently unavailable
