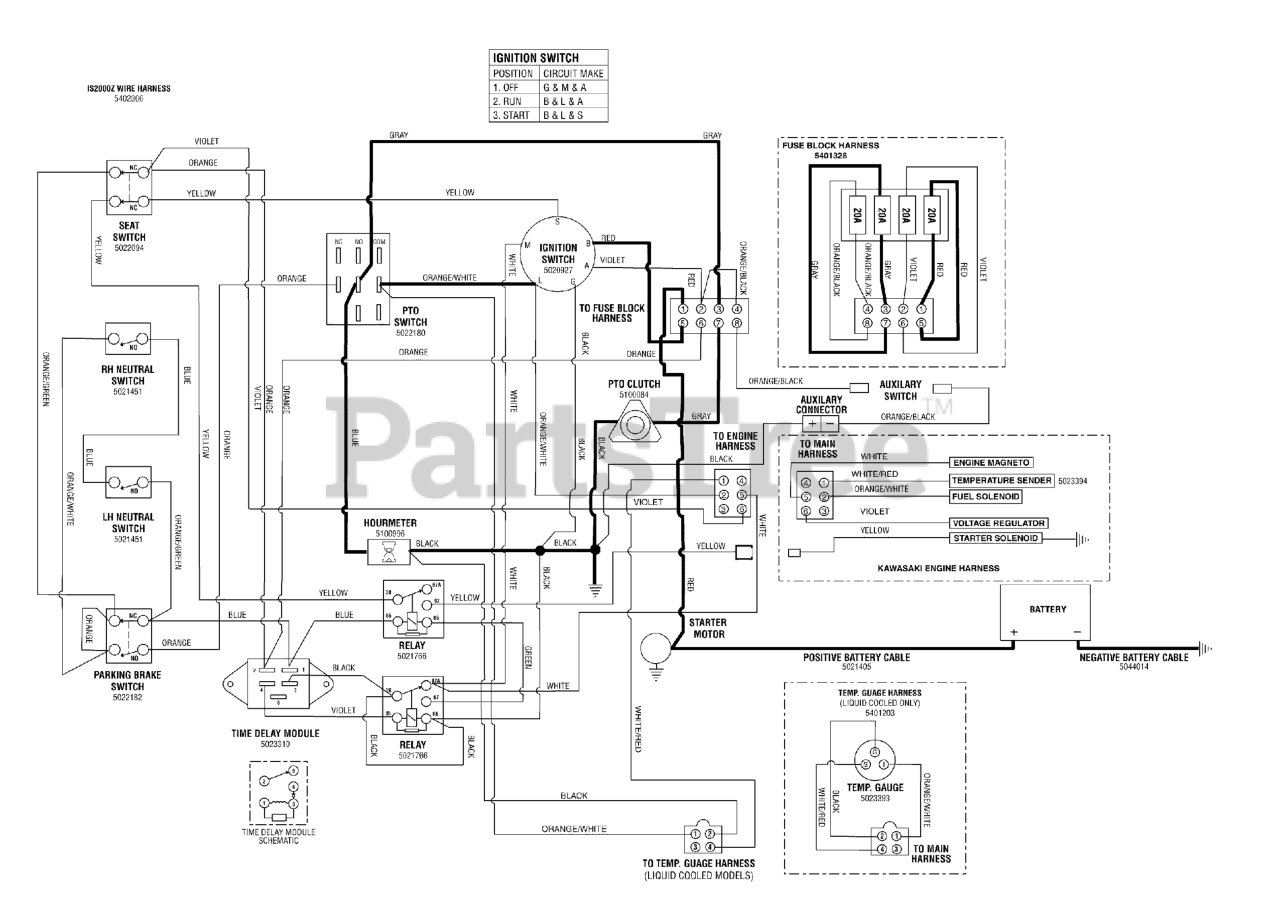

IS 2000Z (5900810) - Ferris IS2000Z Series 61" Zero-Turn Mower, 26hp Kawasaki Electrical Schematic - PTO Clutch Circuit - Kawasaki Liquid Cooled Models Parts Diagram

IS2000Z Series 61" Zero-Turn Mower, 26hp Kawasaki

Electrical Schematic - PTO Clutch Circuit - Kawasaki Liquid Cooled Models Parts Diagram
