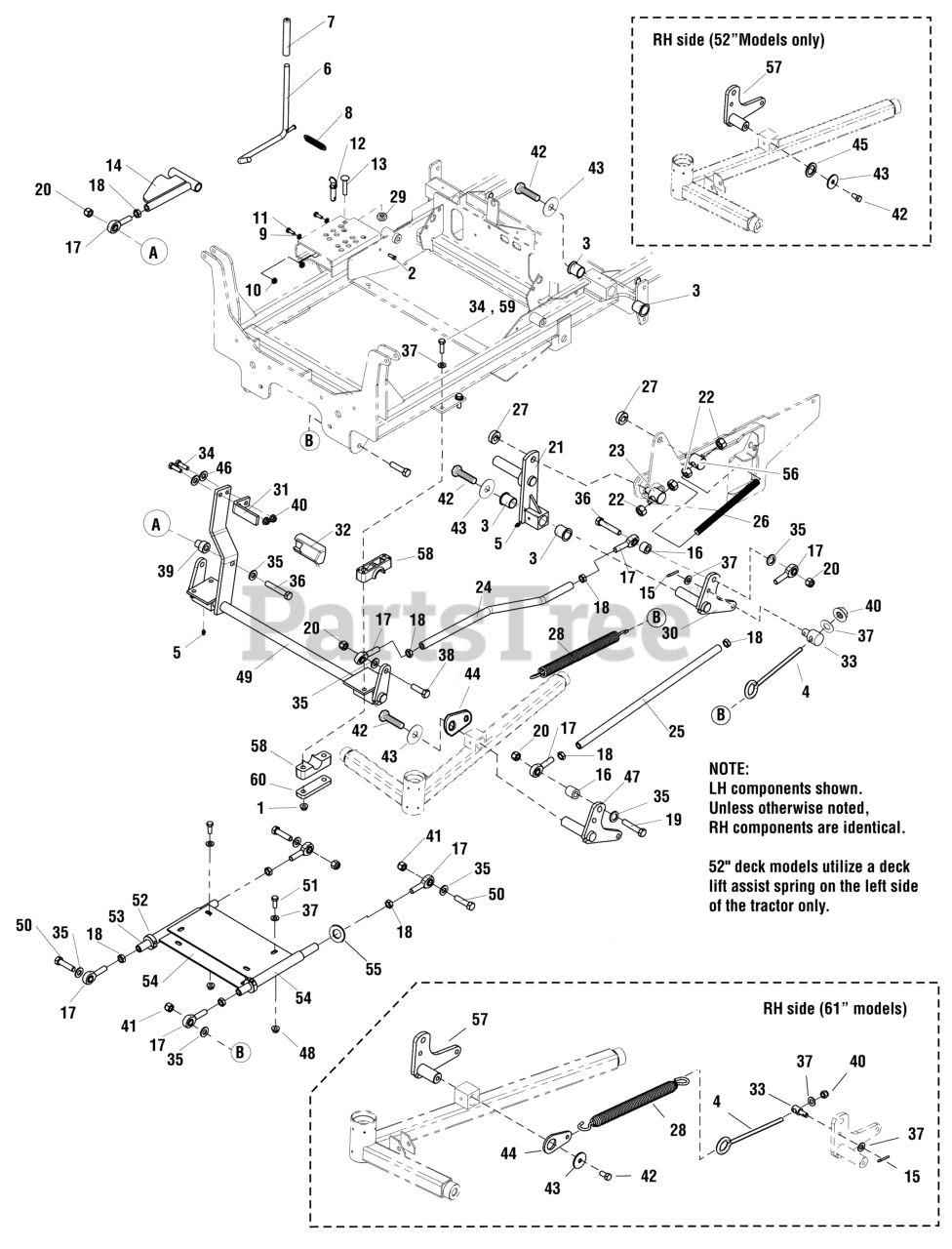

IS 2000Z (5900715) - Ferris IS2000Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton Deck Lift Group (S/N: 2013203287 & Above) Parts Diagram

IS2000Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton

Deck Lift Group (S/N: 2013203287 & Above) Parts Diagram

  • Title

1

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

2

Ferris 5025212X7

PIN, CLEVIS, 1/4 X 7/8, PLATED
(Superseded to 5025212X7SM)

$4.99

$

Usually ships in 2-12 days

0

3

Ferris 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

4

Ferris 5021811

* EYEBOLT, 3/2-16 X 8", 1" EYE
(Superseded to 5021811SM)

$8.49

$

In Stock, Qty 12

0

5

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

6

Ferris 5400719A

WELD, ROD DECK LIFT - BLK

$

$

Currently unavailable

7

Ferris 5021880

GRIP, FOAM
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

8

Ferris 5020639

SPRING, EXTENSION
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

9

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

10

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

11

Ferris 5025010X6

BOLT, 1/4-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5023498

PIN, HITCH, 1/2 X 2.00 OAL, YP
(Superseded to 5023498SM)

$8.99

$

In Stock, only 2 left!

0

13

Ferris 5025146X16

BOLT, 3/8-16 X 2", CARRIAGE
(Superseded to 5025146X16SM)

$4.49

$

In Stock, only 1 left!

0

14

Ferris 5400769B

WELD, DECK ADJUST LINK - RED

$45.99

$

Usually ships in 2-12 days

0

15

Ferris 5025203X6

* PIN, COTTER, 1/8" X 3/4
(Superseded to 5025203X6SM)

$3.99

$

Usually ships in 2-12 days

0

16

Ferris 5045178

SPACER, .52 X 1.00 X .75
(Superseded to 5045178SM)

$7.49

$

In Stock, Qty 6

0

17

Ferris 5022434

BALL JOINT, 1/2-20, MALE
(Superseded to 5022434SM)

$42.99

$

In Stock, only 2 left!

0

18

Ferris 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 19

0

19

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

20

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

21a

Ferris 5401664A

WELD, REAR LIFT, LH - BLK
(Superseded to 5105172)

$84.99

$

Usually ships in 2-12 days

0

21b

Ferris 5401665A

WELD, REAR LIFT, RH - BLK
(Superseded to 5105173)

Note: (Not Shown)

$77.99

$

Usually ships in 2-12 days

0

22

Ferris 5025040

NUT, 5/8-11 HEX
(Superseded to 5025040SM)

$3.49

$

In Stock, Qty 6

0

23

Ferris 5045447

PIVOT, SPRING ROD
(Superseded to 5045447SM)

$25.99

$

Usually ships in 2-12 days

0

24

Ferris 5100149

ROD, DECK LIFT BENT

$

$

Currently unavailable

25

Ferris 5100148

ROD, DECK LIFT, OUTER

$

$

Currently unavailable

26

Ferris 5100247

ROD, 5/8-11 X 9.00
(Superseded to 5100247SM)

$14.99

$

Usually ships in 2-12 days

0

27

Ferris 5020441

COLLAR, 5/8" SPLIT
(Superseded to 5020441SM)

$14.99

$

In Stock, Qty 20+

0

28

Ferris 5023355

* SPRING, DECK LIFT ASSIST
(Superseded to 5023355SM)

$49.99

$

In Stock, only 1 left!

0

29

Ferris 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

30a

Ferris 5401671A

WELD, DECK LIFT LEVER, LH - BLK
(Superseded to 5401671AYP)

$61.99

$

Usually ships in 2-12 days

0

30b

Ferris 5401672A

WELD, DECK LIFT LEVER, RH - BLK
(Superseded to 5401672AYP)

Note: (Not Shown)

$67.99

$

Usually ships in 2-12 days

0

31

Ferris 5061569A

PEDAL, FOOT - BLK
(Superseded to 5061569AA)

$40.99

$

Usually ships in 2-12 days

0

32

Ferris 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

In Stock, only 1 left!

0

33

Ferris 5100380

* ADJUSTER, DECK HANGER
(Superseded to 5100380SM)

$20.99

$

In Stock, only 1 left!

0

34

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

35

Ferris 5025440

WASHER, 1/2" SAE
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

36

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 4 left!

0

37

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

Note: (61" Models Qty. 12)

$3.49

$

Usually ships in 2-12 days

0

38

Ferris 5025017X14

BOLT, 1/2-13 X 1-3/4 GD5 CZ
(Superseded to 5025017X14YP)

$3.49

$

In Stock, only 4 left!

0

39

Ferris 5047103

ADAPTER, CASTER AXLE, CZ
(Superseded to 5047103SM)

Note: (2 per tire)

$10.99

$

In Stock, Qty 20+

0

40

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

Note: (61" Models Qty. 4)

$3.49

$

In Stock, Qty 20+

0

41

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

In Stock, only 2 left!

0

42

Ferris 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

43

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

44

Ferris 5401645B

* MOUNT, SPRING DECK LIFT - RED
(Superseded to 5401645BFS)

$7.49

$

Usually ships in 2-12 days

0

45

Ferris 5020929

SHIM, 1.0 X 1.5 X 0.125
(Superseded to 84005968)

Note: (52" Models)

$2.99

$

Usually ships in 2-12 days

0

46

Ferris 5025293

WASHER, 3/8" GR9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 5

0

47

Ferris 5401661B

WELD, PIVOT DECK LIFT - LH - RED
(Superseded to 5401661BFS)

$60.99

$

Usually ships in 2-12 days

0

48

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

49

Ferris 5404307B

WELD, DECK LIFT SHAFT - RED

$

$

Not available

50

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

$2.99

$

Usually ships in 2-12 days

0

51

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

52

Ferris 5010114

COLLAR, 3/4" SPLIT
(Superseded to 5010114SM)

$19.99

$

Usually ships in 2-12 days

0

53

Ferris 5100155

SHAFT, DECK STABILIZER
(Superseded to 5100155SM)

$40.99

$

Usually ships in 2-12 days

0

54

Ferris 5400647A

WELD, DECK STABILIZER - BLK

$

$

Currently unavailable

55

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

56a

Ferris 5045856

PIVOT, SPRING ROD

Note: (52" Models)

$

$

Currently unavailable

56b

Ferris 5045447

PIVOT, SPRING ROD
(Superseded to 5045447SM)

Note: (61" Models)

$25.99

$

Usually ships in 2-12 days

0

57

Ferris 5401662B

WELD, PIVOT DECK LIFT - RH - RED
(Superseded to 5401662BFS)

$60.99

$

Usually ships in 2-12 days

0

58

Ferris 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

59

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

60

Ferris 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

Usually ships in 2-12 days

0
