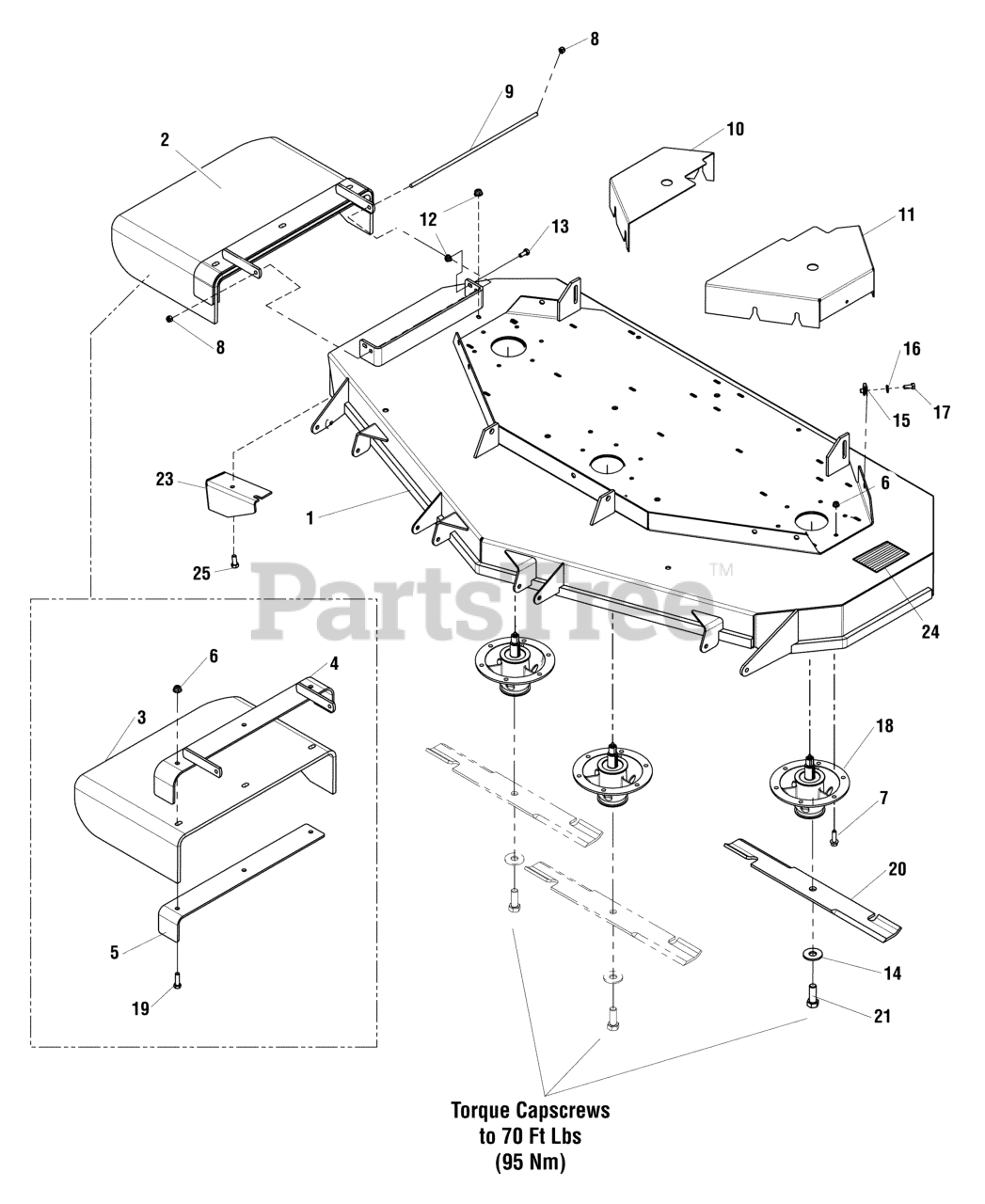

IS 2000Z (5900715) - Ferris IS2000Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton 61" Mower Deck - Housing, Covers, Spindles & Blades S/N: 2012617339 & Above Parts Diagram

IS2000Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton

61" Mower Deck - Housing, Covers, Spindles & Blades S/N: 2012617339 & Above Parts Diagram

  • Title

1

Ferris 5600133

DECK SHELL W/DECALS, 61" SIDE DISCHARGE

Note: (Includes Safety Decals)

$

$

Currently unavailable

2

PURCHASE INDIVIDUAL REPLACEMENT PARTS

Note: (Includes Ref No. 3 - 7)

$

$

Not available

3

Ferris 5402403

CHUTE, DISCHARGE, RUBBER, 61/72, BENT
(Superseded to 5402403SM)

$186.99

$

Usually ships in 2-12 days

0

4

Ferris 5061293B

WELD, FRAME, CHUTE, 61 - RED

$34.99

$

Usually ships in 2-12 days

0

5

Ferris 5402360A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5402360AYP)

$43.99

$

Usually ships in 2-12 days

0

6

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

8

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

9

Ferris 5061300

ROD MOUNT, CHUTE 61"
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

10

Ferris 5400791B

GUARD, 61", RH - RED
(Superseded to 5400791BFS)

$39.99

$

Usually ships in 2-12 days

0

11

Ferris 5405484B

GUARD, 61 - LH - RED
(Superseded to 5405484BFS)

$66.99

$

Usually ships in 2-12 days

0

12

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 7

0

14

Ferris 5025477

WASHER, 5/8" GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, only 4 left!

0

15

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

16

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

17

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 7

0

18

Ferris 5100993

ASSM, SPINDLE, CAST IRON
(Superseded to 5100993SM)

$219.99

$

In Stock, Qty 15

0

19

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5020842

BLADE, 21"
(Superseded to 5020842ASM)

$28.99

$

In Stock, only 3 left!

0

21

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Ferris 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

24

Ferris 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

25

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0
