IS 2000Z (5900713) - Ferris IS2000Z Series 52" Zero-Turn Mower, 25hp Kawasaki Engine & PTO Group - Kawasaki Parts Diagram

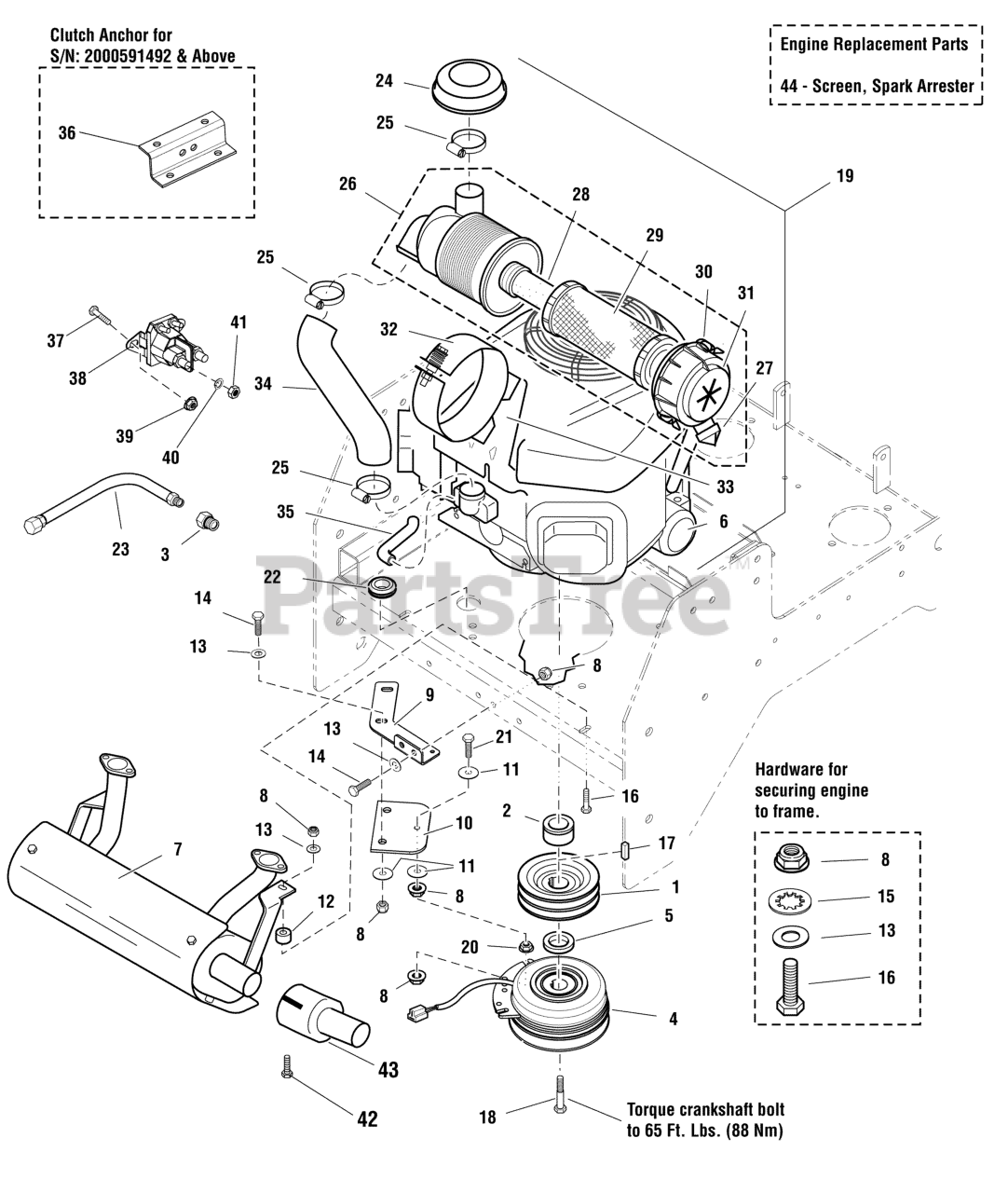

IS2000Z Series 52" Zero-Turn Mower, 25hp Kawasaki

Engine & PTO Group - Kawasaki Parts Diagram

  • Title

1

Ferris 5047075

PULLEY CRANKSHAFT (DOUBLE A)

$128.99

$

Usually ships in 2-12 days

0

2

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

3

Ferris 5022234

ADAPTER, OIL DRAIN
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

4

Ferris 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 3 left!

0

5

Ferris 5100456

SPACER, 1.13 X 1.75 X .375

$

$

Currently unavailable

6

Ferris 5021334X1

OIL FILTER (49065-2078)
(Superseded to 5213341SM)

$

$

Not available

7

Ferris 5100975

MUFFLER, 21HP-25HP KAWASAKI ENGINES

$

$

Currently unavailable

8

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5061857B

PLATE, CLUTCH ANCHOR

Note: (S/N: 2000591491 & Below)

$37.99

$

In Stock, only 1 left!

0

10

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

In Stock, only 1 left!

0

11

Ferris 5044617

WASHER, CLUTCH ANCHOR
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

12

Ferris 5046446

SPACER, .39 X 1.00 X .80
(Superseded to 5046446SM)

$7.49

$

In Stock, only 1 left!

0

13

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

15

Ferris 5025188

WASHER, 5/16" INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

16

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

17

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

18

Ferris 5047632

BOLT, CRANKSHAFT 7/16 X 2 3/4
(Superseded to 5102865)

$5.49

$

In Stock, only 2 left!

0

19

ENGINE, 25HP KAWASAKI

$

$

Not available

20

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

21

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

22

Ferris 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

23

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

24

Ferris 5023143

RAIN COVER

$

$

Not available

25

Ferris 5023146

CLAMP

$11.99

$

Usually ships in 2-12 days

0

26

Ferris 5023139

AIR FILTER ASSEMBLY
(Superseded to 5023139SM)

Note: (Includes Ref Nos. 27 - 31)

$

$

Not available

27

Ferris 5023144

RUBBER, Dust Valve

$

$

Not available

28

Ferris 5023140

AIR FILTER, SECONDARY
(Superseded to 5023140SM)

$

$

Not available

29

Ferris 5023141

AIR FILTER, PRIMARY
(Superseded to 5023141SM)

$

$

Not available

30

Ferris 5023147

CLAMP, CAP

$

$

Not available

31

Ferris 5023138

CAP END, FILTER CASE

$

$

Not available

32

Ferris 5023145

CASE, BRACKET, COMPLETE

$

$

Not available

33

Ferris 5023142

BRACKET PLATE

$

$

Not available

34

Ferris 5023149

AIR INLET TUBE

$

$

Not available

35

Ferris 5023148

BREATHER TUBE

$

$

Not available

36

Ferris 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

Note: (S/N: 2000591492 & Above)

$16.99

$

Usually ships in 2-12 days

0

37

Ferris 5025010X6

BOLT, 1/4-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

38

Ferris 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

39

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

40

Ferris 5023217

WASHER, Light Lock, 5/16
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

41

Ferris 5023216

NUT, Hex Jam, 5/16-24
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

42

Ferris 5104348

EXTENSION, TAILPIPE, 3" - BLACK
(Superseded to 5104348YP)

$14.99

$

Usually ships in 2-12 days

0

43

Ferris 5025470

SCREW, SELF-TAP, #8-32 X 3/8. WASH HEX, CZ
(Superseded to 5025470YP)

$3.49

$

In Stock, only 2 left!

0

44

Ferris 5101641

SCREEN, SPARK ARRESTER
(Superseded to 5101641YP)

Note: (Not Shown)

$84.99

$

Usually ships in 2-12 days

0

45

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

Note: (Not Shown)

$3.49

$

Usually ships in 2-12 days

0
