IS 2000Z (5900713) - Ferris IS2000Z Series 52" Zero-Turn Mower, 25hp Kawasaki Electrical Schematic - Ignition Grounding/Op Presence - Kawasaki FH721V - S/N: 2000559905 & Above Parts Diagram

IS2000Z Series 52" Zero-Turn Mower, 25hp Kawasaki

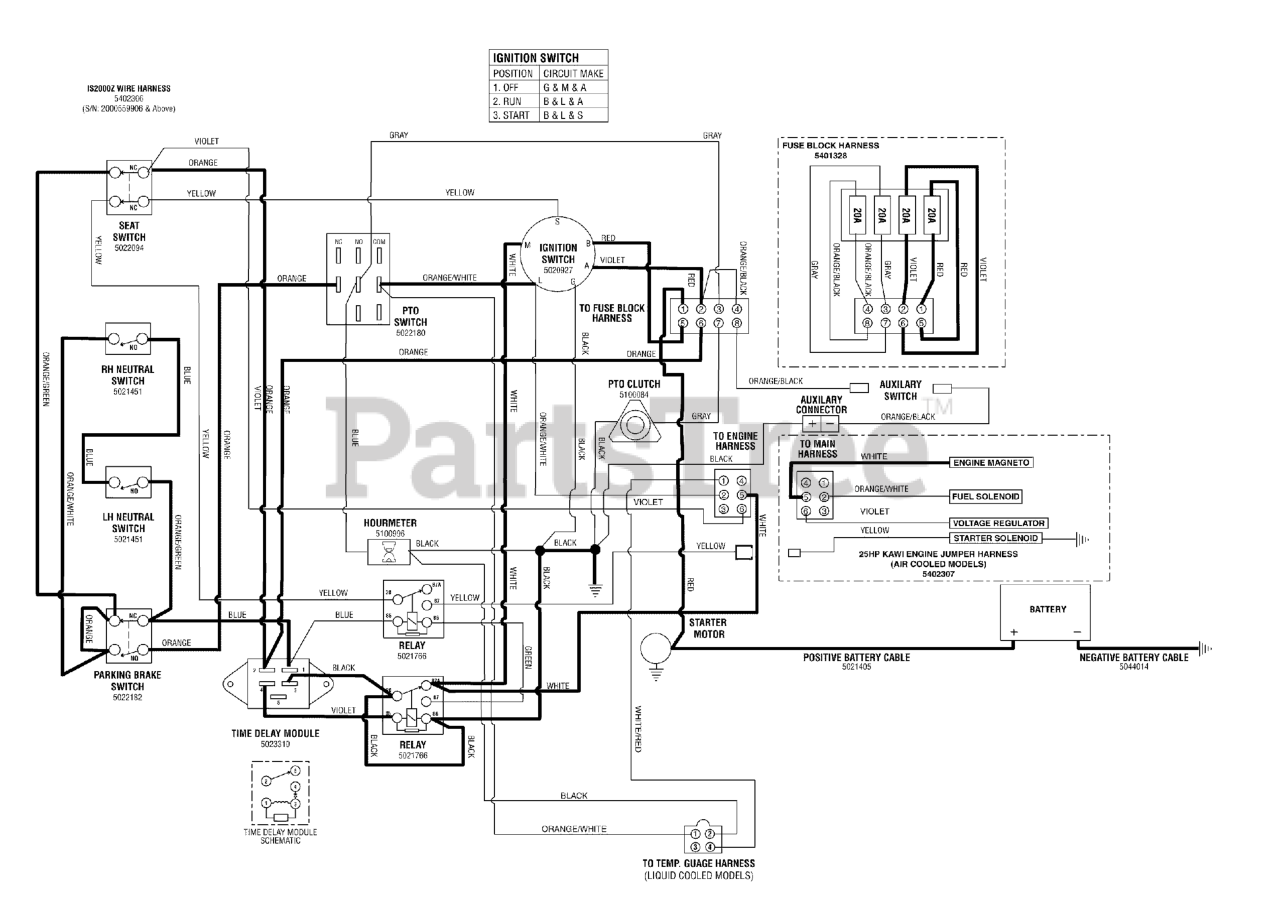

Electrical Schematic - Ignition Grounding/Op Presence - Kawasaki FH721V - S/N: 2000559905 & Above Parts Diagram
