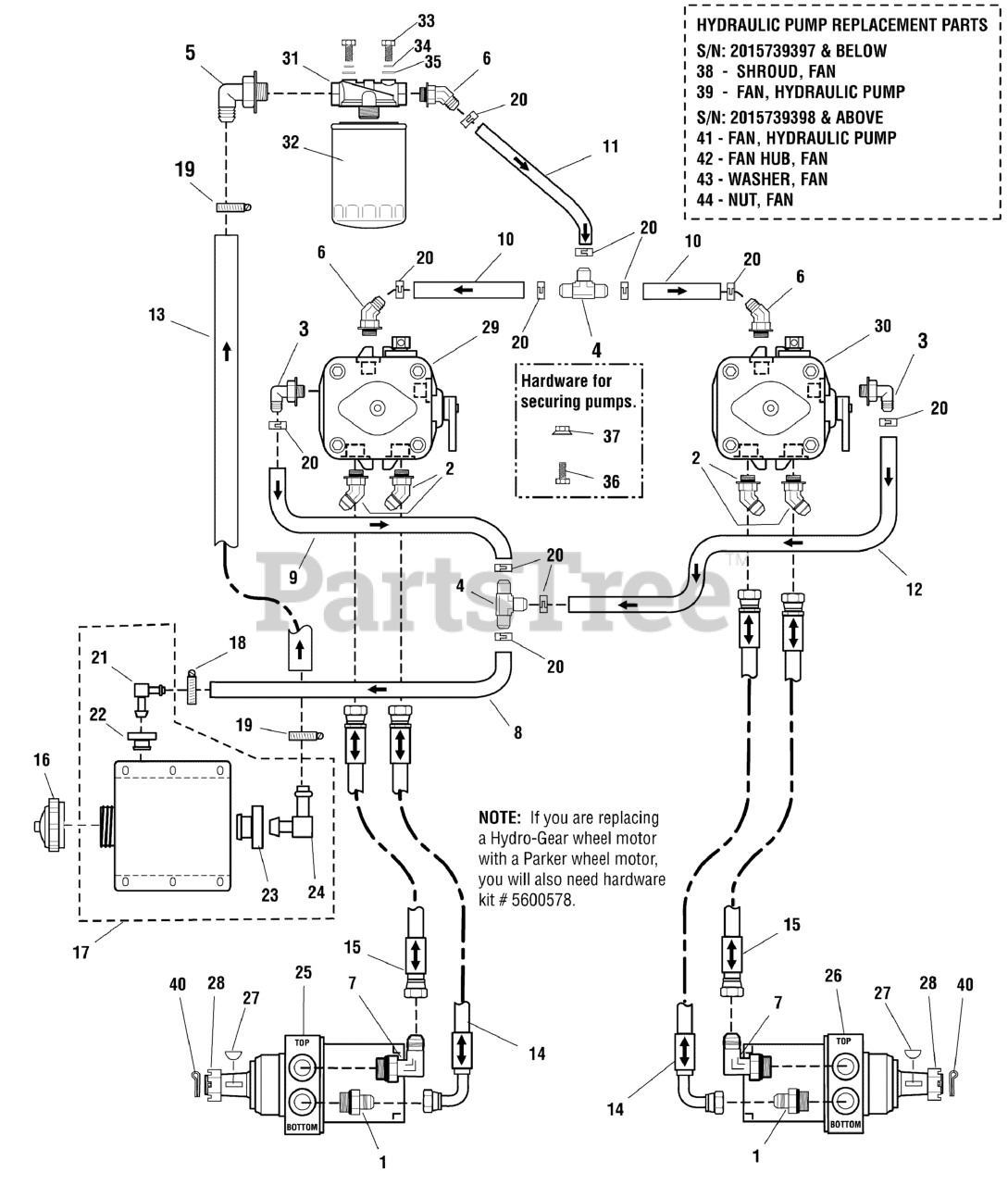

IS 2000Z (5900670) - Ferris IS2000Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton Hydraulic Group Parts Diagram

IS2000Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton

Hydraulic Group Parts Diagram

  • Title

1

Ferris 5022634

ADAPTER, HYD.
(Superseded to 5022634SM)

$15.99

$

In Stock, Qty 6

0

2a

Ferris 5103509

FITTING, ELBOW, 22.5 DEG, #8JIC-#8 ORING

Note: (S/N: 2015879469 & Above)

$22.99

$

Usually ships in 2-12 days

0

2b

Ferris 5023338

FITTING, #8 JIC - #8 O-RING, 45 DEG.
(Superseded to 5023338SM)

Note: (S/N: 2015879468 & Below)

$36.99

$

Usually ships in 2-12 days

0

3

Ferris 5023267

ADAPTER, 90 DEG, 9/16-3/8 BARB
(Superseded to 5023267SM)

$30.99

$

Usually ships in 2-12 days

0

4

Ferris 5022920

FITTING, TEE, 1/2 HOSE
(Superseded to 5022920SM)

$18.99

$

Usually ships in 2-12 days

0

5

Ferris 5023346

ADAPTER, 90 DEG, 9/16-5/8 BARB
(Superseded to 5023346SM)

$42.99

$

Usually ships in 2-12 days

0

6

Ferris 5023461

ADAPTER, 45 DEG, 9/16-3/8 BARB
(Superseded to 5023461SM)

$40.99

$

Usually ships in 2-12 days

0

7

Ferris 5023276

FITTING, #10 ORING-#8 JIC, 90D
(Superseded to 5023276SM)

$53.99

$

In Stock, only 1 left!

0

8

Ferris 5050860X22

HOSE, 3/8" PUSH-LOCK, 22.00"
(Superseded to 5050860X22FS)

$25.99

$

Usually ships in 2-12 days

0

9

Ferris 5050860X6P5

HOSE, 3/8" PUSH-LOCK, 6.50"
(Superseded to 5050860X6P5SM)

$8.99

$

Usually ships in 2-12 days

0

10

Ferris 5050860X6

HOSE, 3/8" PUSH-LOCK, 6.00"
(Superseded to 5050860X6SM)

$8.49

$

Usually ships in 2-12 days

0

11

Ferris 5050860X8

HOSE, 3/8" PUSH-LOCK, 8.00"
(Superseded to 5050860X8SM)

$9.99

$

Usually ships in 2-12 days

0

12

Ferris 5050860X23

HOSE, 3/8" PUSH-LOCK, 23.00"

$

$

Currently unavailable

13

Ferris 5050933X23P5

HOSE, 5/8" PUSH-LOCK, 23.50"
(Superseded to 5050933X23P5YP)

$40.99

$

Usually ships in 2-12 days

0

14a

Ferris 5409635

HOSE ASSEMBLY, 25.50, HP, ST X 90

Note: (S/N: 2015879469 & Above)

$142.99

$

Usually ships in 2-12 days

0

14b

Ferris 5102098

HOSE ASSEMBLY, (26.50)

Note: (S/N: 2015879468 & Below)

$160.99

$

Usually ships in 2-12 days

0

15a

Ferris 5409636

HOSE ASSEMBLY, (21.50), HP, ST X ST

Note: (S/N: 2015879469 & Above)

$104.99

$

Usually ships in 2-12 days

0

15b

Ferris 5102099

HOSE ASSEMBLY, 22.50"

Note: (S/N: 2015879468 & Below)

$110.99

$

Usually ships in 2-12 days

0

16

Ferris 5100017

CAP, HYDRAULIC
(Superseded to 5100017SM)

$23.99

$

In Stock, only 1 left!

0

17

Ferris 5061712

TANK, HYDRAULIC, ASSEMBLY
(Superseded to 5061712SM)

Note: (Includes Ref. Nos 21-24)

$154.99

$

In Stock, Qty 5

0

18

Ferris 5022922

CLAMP, #4 HOSE, STAINLESS
(Superseded to 5022922SM)

$3.49

$

In Stock, only 1 left!

0

19

Ferris 5021164

CLAMP, #10 HOSE, STAINLESS
(Superseded to 5021164SM)

$3.99

$

In Stock, only 1 left!

0

20

Ferris 5023268

CLAMP, HOSE
(Superseded to 5023268SM)

$3.49

$

Usually ships in 2-12 days

0

21

Ferris 5023118

FITTING, ELBOW, 3/8"
(Superseded to 5023118SM)

$7.99

$

Usually ships in 2-12 days

0

22

Ferris 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, only 4 left!

0

23

Ferris 5023121

GROMMET
(Superseded to 5023121SM)

$15.99

$

Usually ships in 2-12 days

0

24

Ferris 5023119

FITTING, ELBOW, 5/8"

$

$

Currently unavailable

25a

Ferris 5102682

WHEEL MOTOR, LH, 14.5 CI-TF0240LS080AAKZ
(Superseded to 5102682YP)

Note: (S/N: 2014450934 & ABOVE)

$984.99

$

Usually ships in 2-12 days

0

25b

Use next serial number range wheel motors, fittings & kit #5600578.

Note: (S/N: 2014450933 & BELOW) Was 5100407

$

$

Not available

26a

Ferris 5102681

WHEEL MOTOR, RH, 14.5 CI-TF0240LS081AAKZ
(Superseded to 5102681YP)

Note: (S/N: 2014450934 & ABOVE)

$948.99

$

Usually ships in 2-12 days

0

26b

Use next serial number range wheel motors, fittings & kit #5600578.

Note: (S/N: 2014450933 & BELOW) Was 5100410

$

$

Not available

27

Ferris 5022042X2

KEY
(Superseded to 5022042X2SM)

$10.99

$

In Stock, only 1 left!

0

28

Ferris 5022042X3

NUT, CASTLE, 1-20
(Superseded to 5022042X3SM)

$34.99

$

In Stock, only 1 left!

0

29a

Ferris 5103443

PUMP,HYD12CC,LH NO FAN,PK-3KCQ-FVIX-XXXX

Note: (S/N: 2015739398 & ABOVE)

$1303.99

$

Usually ships in 2-12 days

0

29b

Ferris 5102174

PUMP, HYD, 12CC - LH, PK-3HBQ-FV1F-XXXX
(Superseded to 5102174YP)

Note: (S/N: 2015739397 & BELOW)

$1590.99

$

Usually ships in 2-12 days

0

30a

Ferris 5103444

PUMP,HYD12CC,RH NO FAN,PK-3KCQ-FVIX-XXXX
(Superseded to 5103444YP)

Note: (S/N: 2015739398 & ABOVE)

$1537.99

$

Usually ships in 2-12 days

0

30b

Ferris 5102175

PUMP, HYD, 12CC - RH, PK-3KBQ-FV1F-XXXX
(Superseded to 5102175YP)

Note: (S/N: 2015739397 & BELOW)

$1515.99

$

Usually ships in 2-12 days

0

31

Ferris 5023096

FILTER HEAD, HYDRAULIC
(Superseded to 5023096SM)

$52.99

$

Usually ships in 2-12 days

0

32

Ferris 1719168

FILTER, OIL
(Superseded to 1719168X1)

$26.99

$

In Stock, Qty 20+

0

33

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

34

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

35

Ferris 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

In Stock, only 2 left!

0

36

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

37

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

38

Ferris 5100162

SHROUD, FAN
(Superseded to 5100162SM)

$22.99

$

Usually ships in 2-12 days

0

39

Ferris 5022571X1

FAN, HYD. PUMP
(Superseded to 5100161X1SM)

$67.99

$

Usually ships in 2-12 days

0

40

Ferris 5025203X16

PIN, COTTER, 1/8' X 2"
(Superseded to 5025203X16SM)

$3.99

$

Usually ships in 2-12 days

0

41

Ferris 5103231

FAN, 8.31", 16CC HYDRO-GEAR PUMP

$39.99

$

Usually ships in 2-12 days

0

42

Ferris 5103250X2

FAN HUB, 16CC PUMP
(Superseded to 5103250X2YP)

$4.49

$

Usually ships in 2-12 days

0

43

Ferris 5103250X1

WASHER, 16CC PUMP

$3.99

$

Usually ships in 2-12 days

0

44

Ferris 5103444X1

LOCK NUT,NLYON INSERT 5/16-24,GRD8, 5010

$2.99

$

Usually ships in 2-12 days

0
