IS 2000Z (5900670) - Ferris IS2000Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton 61" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

IS2000Z Series 61" Zero-Turn Mower, 30hp Briggs & Stratton

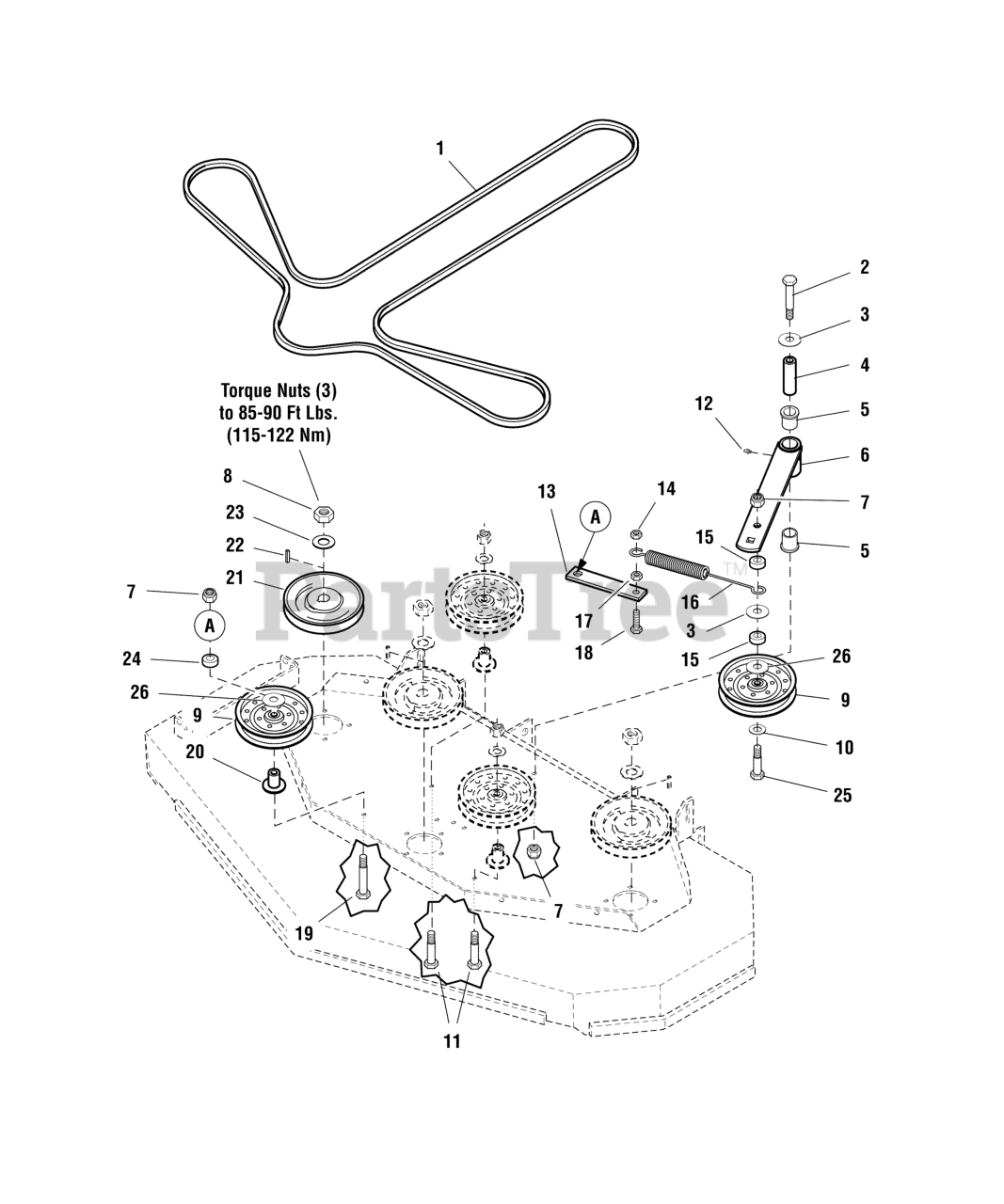

61" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

  • Title

1

Ferris 5103871

BELT, 5V, 175.90EL, LG ARAMID, WRPD, RC
(Superseded to 5103671)

$148.99

$

Usually ships in 2-12 days

0

2

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2" GD5
(Superseded to 5025017X36SM)

$6.49

$

Usually ships in 2-12 days

0

3

Ferris 5025150

WASHER, 1/2" USS
(Superseded to 5025150SM)

$3.99

$

Usually ships in 2-12 days

0

4

Ferris 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 2 left!

0

5

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 18

0

6

Ferris 5407343

ASSM, IDLER ARM
(Superseded to 5407343FS)

Note: (Includes Bushings & grease fittings.)

$113.99

$

Usually ships in 2-12 days

0

7

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

8

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

9

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

10

Ferris 5025440

WASHER, 1/2" GD9 YZ
(Superseded to 5025440SM)

$4.49

$

In Stock, only 1 left!

0

11

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

12

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

13

Ferris 5400846B

MOUNT, IDLER SPRING - RED

$6.49

$

Usually ships in 2-12 days

0

14

Ferris 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

15

Ferris 5044609

SPACER, .52 X 1.00 X .38
(Superseded to 5044609SM)

$6.49

$

In Stock, only 1 left!

0

16

Ferris 5023340

SPRING, EXTENSION, SWIVEL END
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

17

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

18

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

19

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 2 left!

0

20

Ferris 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, Qty 17

0

21

Ferris 5100700

PULLEY, 6.93 EOD X 25MM, SPLIT
(Superseded to 5100700SM)

Note: (S/N: 2000593606 & Above)

$74.99

$

Usually ships in 2-12 days

0

21

Ferris 5100444

PULLEY, SPINDLE, 6.5 OD X 25MM, SPLIT ST
(Superseded to 5100444FS)

Note: (S/N: 2000533354 - 2000593605)

$99.99

$

Usually ships in 2-12 days

0

21

Ferris 5046466

PULLEY, BC66 X 25MM, SPECIAL
(Superseded to 5046466SM)

Note: (S/N: 2000530156 - 2000533353)

$117.99

$

Usually ships in 2-12 days

0

21

Ferris 5100444

PULLEY, SPINDLE, 6.5 OD X 25MM, SPLIT ST
(Superseded to 5100444FS)

Note: (S/N: 2000375067 - 2000530155)

$99.99

$

Usually ships in 2-12 days

0

21

Ferris 5046466

PULLEY, BC66 X 25MM, SPECIAL
(Superseded to 5046466SM)

Note: (S/N: 2000375066 & Below)

$117.99

$

Usually ships in 2-12 days

0

22

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 3 left!

0

23

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

24

Ferris 5045023

SPACER, .52 x 1.00 x .44
(Superseded to 5045023SM)

$6.49

$

In Stock, only 1 left!

0

25

Ferris 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

26

Ferris 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0
