IS 2000Z (5900629) - Ferris IS2000Z Series 61" Zero-Turn Mower, 26hp Kawasaki Instrument & Control Panel Group - Kawasaki Liquid Cooled Models Parts Diagram

IS2000Z Series 61" Zero-Turn Mower, 26hp Kawasaki

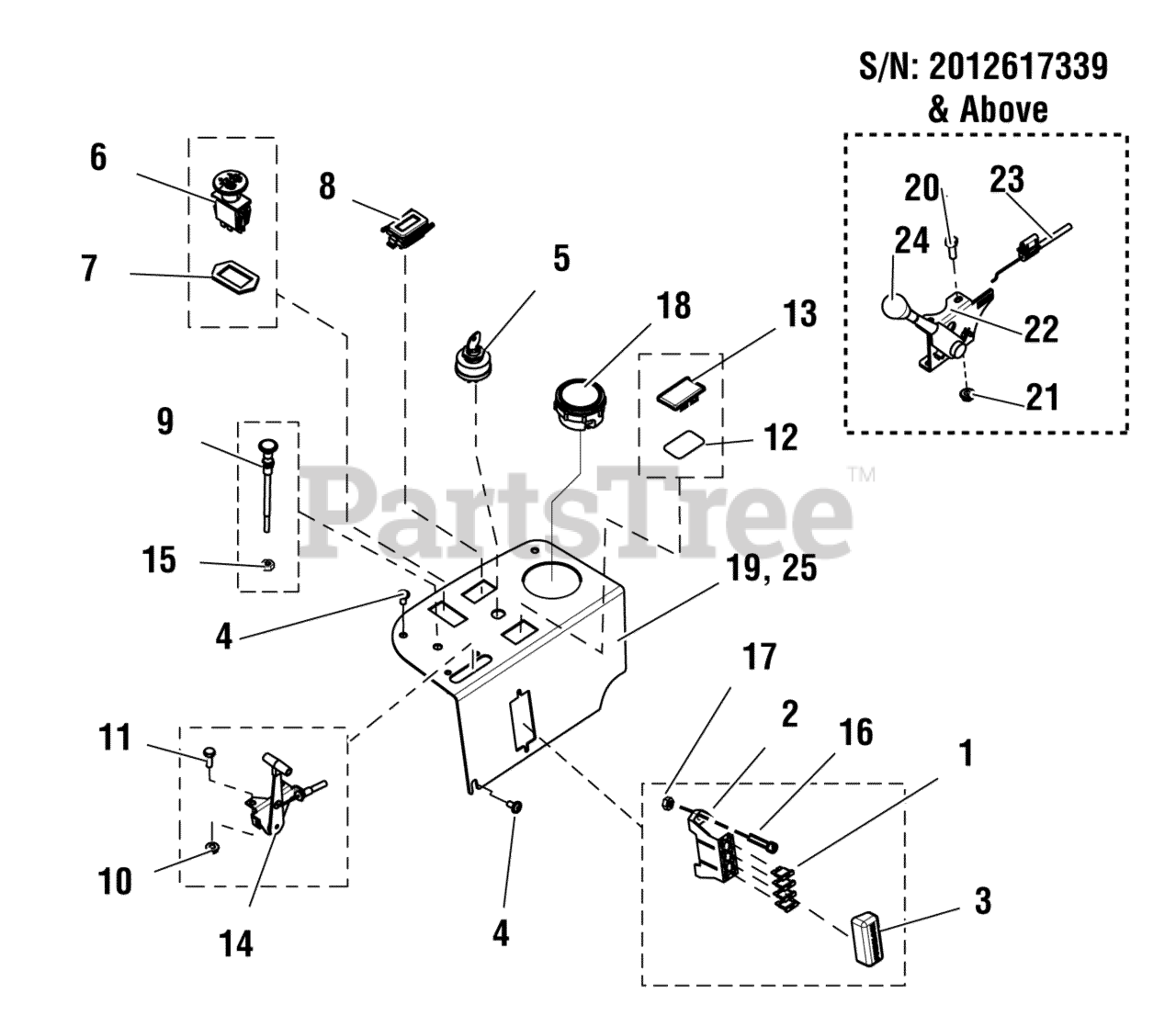

Instrument & Control Panel Group - Kawasaki Liquid Cooled Models Parts Diagram

  • Title

1

Ferris 5021603

FUSE, ATO 20 AMP
(Superseded to 5021603SM)

$4.99

$

In Stock, only 2 left!

0

2

Ferris 5021518

FUSE, BLOCK
(Superseded to 5021518SM)

$11.99

$

In Stock, only 1 left!

0

3

Ferris 5022805

COVER, VINYL FUSEBLOCK
(Superseded to 5022805SM)

$6.49

$

Usually ships in 2-12 days

0

4

Ferris 5025299X4

SCREW, 1/4-20 X 1/2" ALLEN BH
(Superseded to 5106469)

$2.49

$

In Stock, Qty 15

0

5

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, only 3 left!

0

6

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

7

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

8

Ferris 5102417

HOUR METER

$64.99

$

Usually ships in 2-12 days

0

9

Ferris 5046501

CABLE, CHOKE CONTROL, 47"
(Superseded to 5046501SM)

$55.99

$

In Stock, only 1 left!

0

10

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

11

Ferris 5025010X6

BOLT, 1/4-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5022269

O-RING, 7/8" ID X 1/16"
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

14

Ferris 5021887

CABLE, THROTTLE CONTROL, 45"
(Superseded to 5021887SM)

Note: (S/N: 2012617338 & Below)

$71.99

$

Usually ships in 2-12 days

0

15

Ferris 5025035

NUT, 3/8 - 24 HEX
(Superseded to 5025035SM)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5025270X16

SCREW, #10-24 X 2" ROUND PHILLIPS

$

$

Currently unavailable

17

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

18

Ferris 5023393

GUAGE, WATER TEMPERATURE
(Superseded to 5023393YP)

$72.99

$

Usually ships in 2-12 days

0

19

Ferris 5401956A

PANEL, CONTROL, IS2000Z 26/61 - BLK

Note: (S/N: 2012617338 & Below)

$

$

Currently unavailable

20

Ferris 5025179X6

SCREW, #10-24 X 3/4"
(Superseded to 5025179X6SM)

Note: (S/N: 2012617339 & Above)

$3.99

$

Usually ships in 2-12 days

0

21

Ferris 5025271

NUT, #10-24 HEN NYLON LOCK
(Superseded to 5025271FS)

Note: (S/N: 2012617339 & Above)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

Note: (S/N: 2012617339 & Above)

$48.99

$

In Stock, only 1 left!

0

23

Ferris 5101073

CABLE, THROTTLE, 42"
(Superseded to 5101073SM)

Note: (S/N: 2012617339 & Above)

$33.99

$

In Stock, only 2 left!

0

24

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

Note: (S/N: 2012617339 & Above)

$10.99

$

In Stock, only 1 left!

0

25

Ferris 5403401A

PANEL, CONTROL, IS2000Z LC

Note: (S/N: 2012617339 & Above)

$

$

Currently unavailable
