IS 2000Z (5900629) - Ferris IS2000Z Series 61" Zero-Turn Mower, 26hp Kawasaki Electrical Schematic - Ignition Grounding/Op Presence - Kawasaki Liquid Cooled Models Parts Diagram

IS2000Z Series 61" Zero-Turn Mower, 26hp Kawasaki

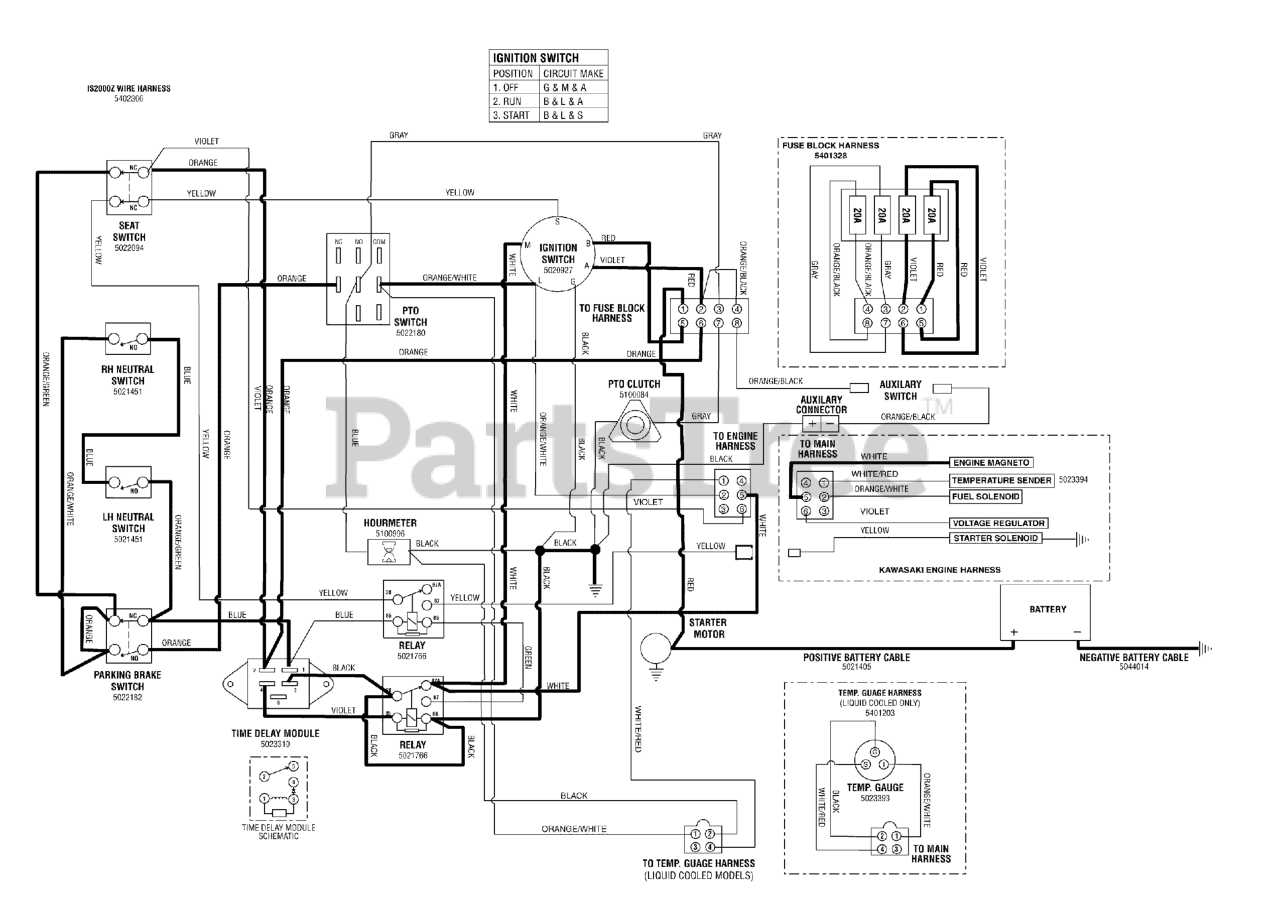

Electrical Schematic - Ignition Grounding/Op Presence - Kawasaki Liquid Cooled Models Parts Diagram
