IS 2000Z (5900627) - Ferris IS2000Z Series 48" Zero-Turn Mower, 20hp Yanmar, Side-Discharge Motion Control Group Parts Diagram

IS2000Z Series 48" Zero-Turn Mower, 20hp Yanmar, Side-Discharge

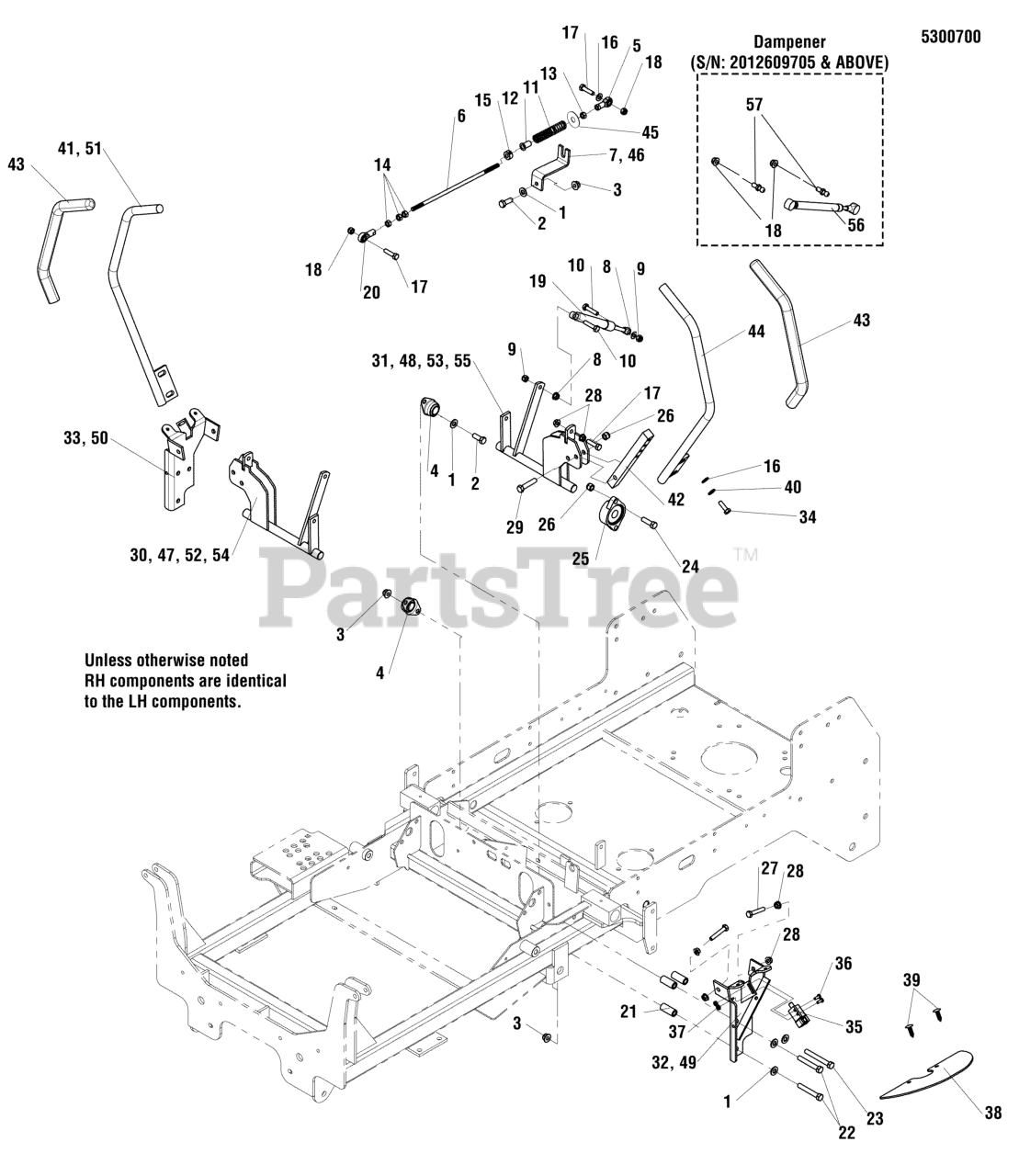

Motion Control Group Parts Diagram

  • Title

1

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

2

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

3

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

4

Ferris 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

5

Ferris 5104494

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE
(Superseded to 5104494YP)

$18.99

$

Usually ships in 2-12 days

0

6

Ferris 5046420

ROD, HYDRO LINKAGE
(Superseded to 5046420SM)

$11.99

$

Usually ships in 2-12 days

0

7

Ferris 5400653A

MOUNT, REVERSE RETURN - BLK

$

$

Currently unavailable

8

Ferris 5025355

NUT, M8-1.25 SERR. FLANGE, CZ
(Superseded to 5025355SM)

Note: (S/N: 2012609704 & BELOW)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5025354

NUT, M8-1.25 NYLON LOCK, CZ
(Superseded to 5025354SM)

Note: (S/N: 2012609704 & BELOW)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025335

BOLT, M8-1.25 X 35MM, GD8.8
(Superseded to 5025335SM)

Note: (S/N: 2012609704 & BELOW)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5022645

SPRING, REVERSE RETURN
(Superseded to 5022645SM)

$9.49

$

In Stock, only 1 left!

0

12

Ferris 5023260

BUSHING, NYLON
(Superseded to 5023260SM)

$6.49

$

In Stock, only 2 left!

0

13

Ferris 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

15

Ferris 5020047

COLLAR, 5/16" SET
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

16

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

17

Ferris 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

Usually ships in 2-12 days

0

18

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5100728

DAMPENER, CONTROL
(Superseded to 5103511YP)

Note: (S/N: 2012609704 & BELOW)

$62.99

$

In Stock, Qty 16

0

20

Ferris 5104493

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE
(Superseded to 5104493YP)

$18.99

$

In Stock, only 1 left!

0

21

Ferris 5048264

SPACER, .39 X .63 X 1.50
(Superseded to 5048264SM)

$5.99

$

Usually ships in 2-12 days

0

22

Ferris 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

23

Ferris 5025013X24

BOLT, 3/8-16 X 3" GD5 CZ
(Superseded to 5025013X24SM)

$3.99

$

In Stock, only 1 left!

0

24

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

25

Ferris 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

26

Ferris 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

27

Ferris 5025055X14

BOLT, 5/16-18 X 1-3/4" GD5 TFL
(Superseded to 5025055X14SM)

$3.99

$

Usually ships in 2-12 days

0

28

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

29

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

30

Ferris 5400570B

WELD, CONTROL SHAFT - RH - RED MODEL

Note: (S/N: 2012609704 & BELOW)

$64.99

$

Usually ships in 2-12 days

0

31

Ferris 5400573B

WELD, CONTROL SHAFT - LH - RED MODEL

Note: (S/N: 2012609704 & BELOW)

$64.99

$

Usually ships in 2-12 days

0

32

Ferris 5409640A

WELD, NEUTRAL LOCK, LH - BLK

$52.99

$

Usually ships in 2-12 days

0

33

Ferris 5409641A

WELD, NEUTRAL LOCK, RH - BLK

$60.99

$

Usually ships in 2-12 days

0

34

Ferris 5025011X8

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

35

Ferris 5021451

SWITCH, PLUNGER, N.O.
(Superseded to 5021451SM)

$11.99

$

In Stock, Qty 13

0

36

Ferris 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

37

Ferris 5025029

NUT, #10-24 HEX
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

38

Ferris 5401248

GUARD, RUBBER MOTION CONTROL
(Superseded to 5401248SM)

$8.49

$

Usually ships in 2-12 days

0

39

Ferris 5025431

PUSH RIVET (TREE TYPE), BLACK
(Superseded to 5025431SM)

$4.49

$

Usually ships in 2-12 days

0

40

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

41

Ferris 5400637A

WELD, HANDLE MOTION CONTROL RH - BLK

$

$

Currently unavailable

42

Ferris 5047004A

MOUNT, CONTROL ARM - BLK

Note: (9.0" Total Length, 4 Adjustment Holes)

$

$

Currently unavailable

43

Ferris 5022068

GRIP, FOAM, 3/4" ID, 16" LONG
(Superseded to 5022068SM)

$11.99

$

Usually ships in 2-12 days

0

44

Ferris 5400636A

WELD, HANDLE MOTION CONTROL LH - BLK
(Superseded to 5400636AYP)

$50.99

$

Usually ships in 2-12 days

0

45

Ferris 5025424

WASHER, 3/8 X 1" X 1/16, NYLON F/W
(Superseded to 5025424FS)

$2.49

$

In Stock, only 1 left!

0

46

Ferris 5400653A

MOUNT, REVERSE RETURN - BLK

$

$

Currently unavailable

47

Ferris 5400570C

WELD, CONTROL SHAFT - RH - ORANGE MODEL
(Superseded to 5400570CSM)

Note: (S/N: 2012609704 & BELOW)

$84.99

$

Usually ships in 2-12 days

0

48

Ferris 5400573C

WELD, CONTROL SHAFT - LH - ORANGE MODEL
(Superseded to 5400573CSM)

Note: (S/N: 2012609704 & BELOW)

$84.99

$

Usually ships in 2-12 days

0

49

Ferris 5409640A

WELD, NEUTRAL LOCK, LH - BLK

$52.99

$

Usually ships in 2-12 days

0

50

Ferris 5409641A

WELD, NEUTRAL LOCK, RH - BLK

$60.99

$

Usually ships in 2-12 days

0

51

Ferris 5400637A

WELD, HANDLE MOTION CONTROL RH - BLK

$

$

Currently unavailable

52

Ferris 84008453

SHAFT, Control

Note: (S/N: 2012609705 & ABOVE)

$182.99

$

Usually ships in 2-12 days

0

53

Ferris 5403619A

WELD, CONTROL SHAFT, LH - BLK

Note: (S/N: 2012609705 & ABOVE)

$

$

Currently unavailable

54

Ferris 84008453

SHAFT, Control

Note: (S/N: 2012609705 & ABOVE)

$182.99

$

Usually ships in 2-12 days

0

55

Ferris 5403619A

WELD, CONTROL SHAFT, LH - BLK

Note: (S/N: 2012609705 & ABOVE)

$

$

Currently unavailable

56

Ferris 5100940

DAMPENER, CONTROL
(Superseded to 5100940SM)

Note: (S/N: 2012609705 & ABOVE)

$55.99

$

In Stock, only 2 left!

0

57

Ferris 5101307

10MM BALL STUD, 5/16-18 X 3/4"
(Superseded to 5101307SM)

Note: (S/N: 2012609705 & ABOVE)

$5.49

$

Usually ships in 2-12 days

0
