IS 2000Z (5900624) - Ferris IS2000Z Series 52" Zero-Turn Mower, 25hp Kawasaki 52" Mower Deck - Pulleys, Belt, & Idler Arm Parts Diagram

IS2000Z Series 52" Zero-Turn Mower, 25hp Kawasaki

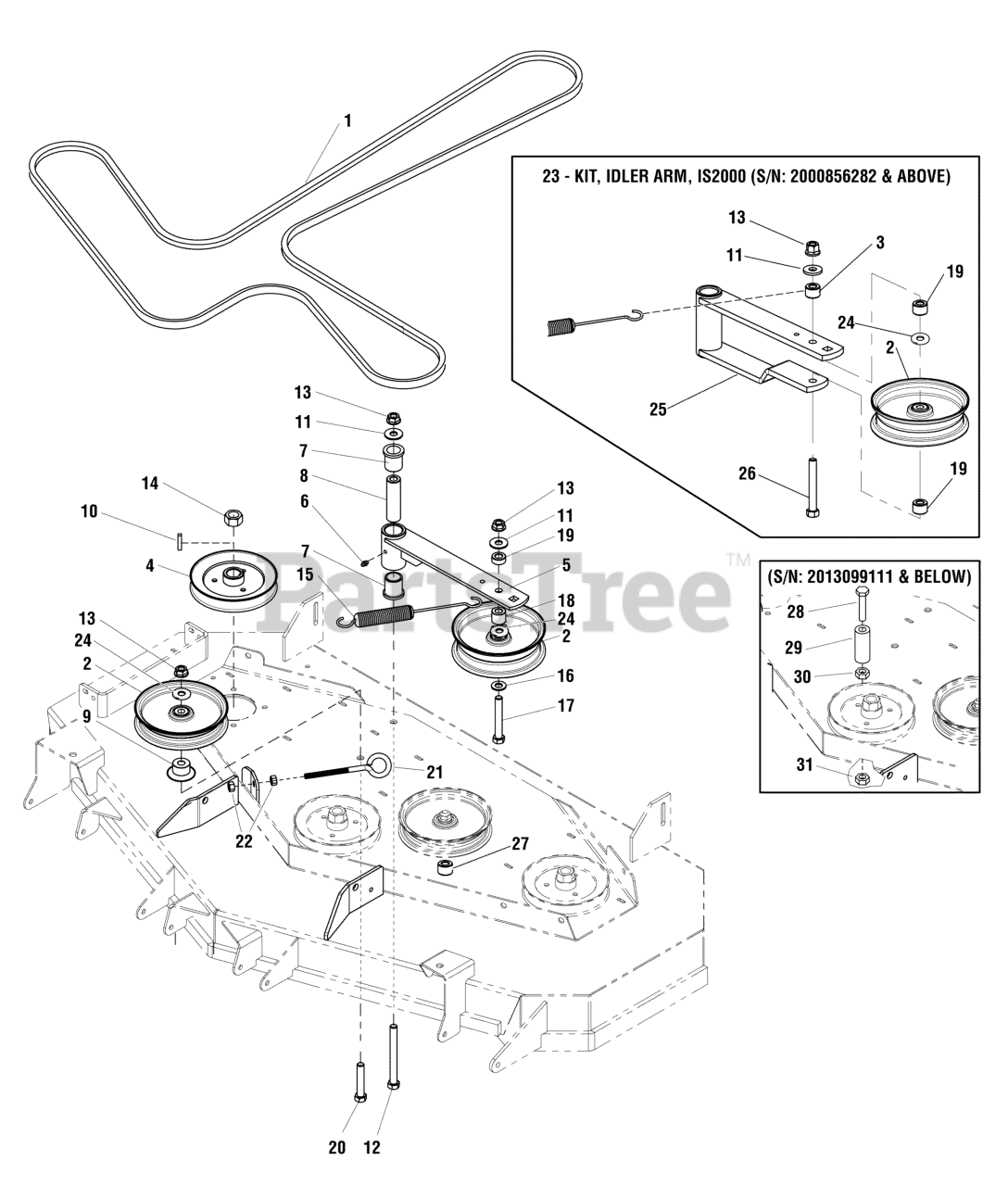

52" Mower Deck - Pulleys, Belt, & Idler Arm Parts Diagram

  • Title

1

Ferris 5104065

BELT, 5V, 160.60"EL, LRG ARAMID, WRP, RC
(Superseded to 5104065YP)

$148.99

$

In Stock, only 1 left!

0

2

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

3

Ferris 5100520

SPACER, .52 X 1.00 X .22, PM, CZ
(Superseded to 5100520SM)

$6.49

$

In Stock, only 2 left!

0

4

Ferris 5023178

PULLEY, 6.122 OD X .98 BORE
(Superseded to 5023178SM)

$71.99

$

In Stock, only 1 left!

0

5

Ferris 5401741A

WELD, IDLER ARM - BLK
(Superseded to 5401741AYP)

$117.99

$

Usually ships in 2-12 days

0

6

Ferris 5020095

GREASE FITTING, 1/4-28 STR
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

7

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 10

0

8

Ferris 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 3 left!

0

9

Ferris 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, Qty 17

0

10

Ferris 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 4 left!

0

11

Ferris 5025150

WASHER, 1/2" USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 2 left!

0

12

Ferris 5025017X40

BOLT, 1/2-13 X 5" GD5
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 2 left!

0

13

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

14

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

15

Ferris 5023340

SPRING-EXT, 1.04OD X 10.54LG X .148WR
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

16

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

17

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 2 left!

0

18

Ferris 5044673

SPACER, .52 X 1.00 X .88
(Superseded to 5044673SM)

$8.99

$

In Stock, only 1 left!

0

19

Ferris 5045023

SPACER, .52 X 1.00 X .44
(Superseded to 5045023SM)

$6.49

$

Usually ships in 2-12 days

0

20

Ferris 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, Qty 9

0

21

Ferris 5021812

EYE BOLT, 3/8-16 X 4-1/4, 1 EYE
(Superseded to 5021812SM)

Note: (S/N: 2013099112 & ABOVE)

$5.99

$

In Stock, Qty 18

0

22

Ferris 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

Note: (S/N: 2013099112 & ABOVE)

$2.99

$

Usually ships in 2-12 days

0

23

Ferris 5600145

KIT, IDLER ARM, IS2000

Note: (Includes Ref. #'s 3, 6, 7, 9, 11, 13, 19, 24, 26)

$188.99

$

Usually ships in 2-12 days

0

24

Ferris 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

25

Ferris 5403134A

WELD, IDLER ARM - BLK
(Superseded to 5600143)

Note: (S/N: 2000856282 & Above)

$88.99

$

Usually ships in 2-12 days

0

26

Ferris 5025017X26

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X26SM)

$5.49

$

In Stock, only 2 left!

0

27

Ferris 5047142

SPACER, .52 X 1.25 X .70
(Superseded to 5047142SM)

$8.99

$

In Stock, Qty 11

0

28

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

Note: (S/N: 2013099111 & BELOW)

$6.49

$

In Stock, only 4 left!

0

29

Ferris 5050857X2P5

HOSE, 1/2" PUSH-ON 2.50"
(Superseded to 5050857X2P5YP)

Note: (S/N: 2013099111 & BELOW)

$6.99

$

In Stock, only 2 left!

0

30

Ferris 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

Note: (S/N: 2013099111 & BELOW)

$7.99

$

In Stock, only 1 left!

0

31

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

Note: (S/N: 2013099111 & BELOW)

$3.49

$

In Stock, Qty 20+

0
