IS 2000Z (5900624) - Ferris IS2000Z Series 52" Zero-Turn Mower, 25hp Kawasaki 52" Mower Deck - Housing, Covers, Spindles, & Blades Parts Diagram

IS2000Z Series 52" Zero-Turn Mower, 25hp Kawasaki

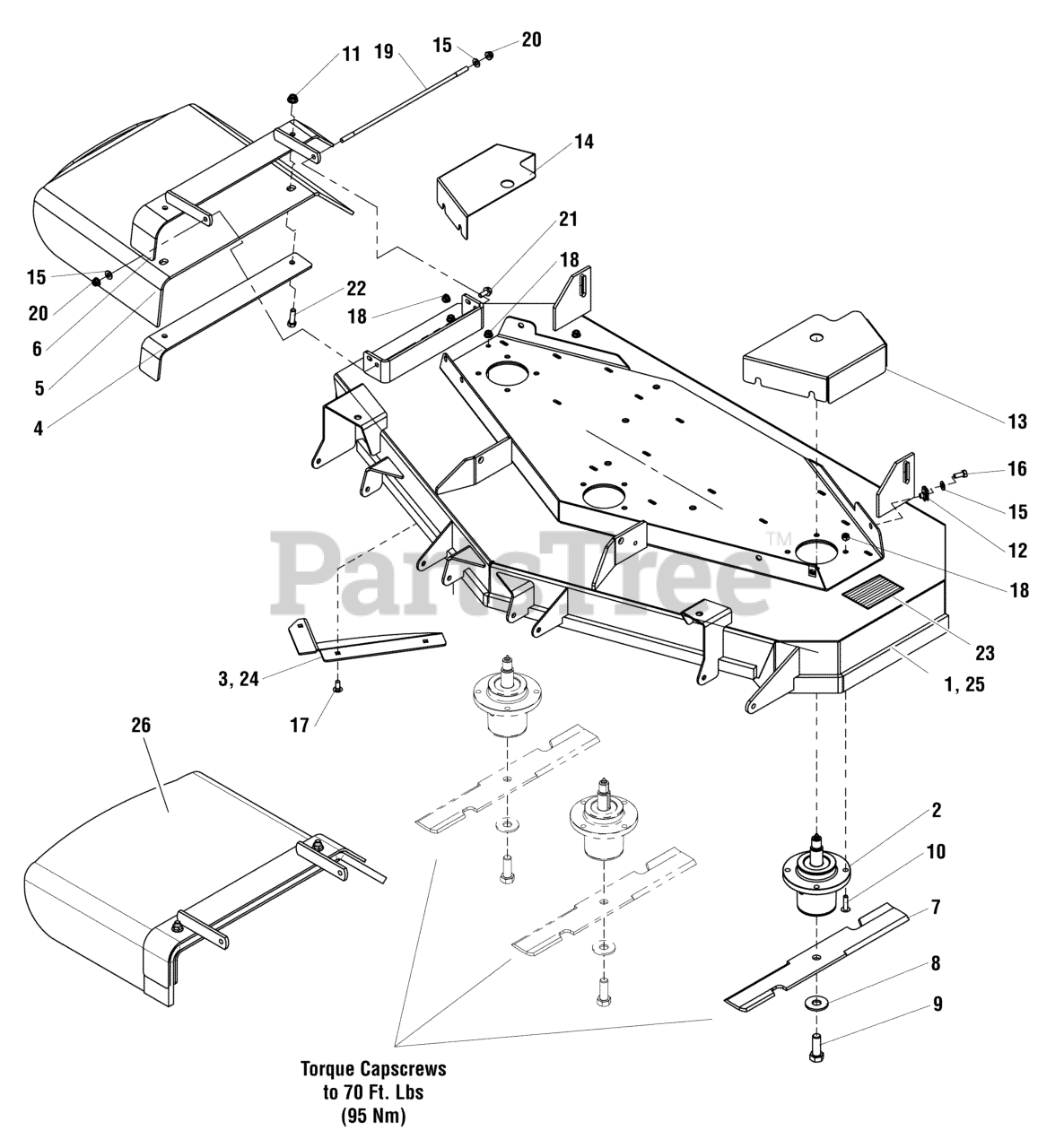

52" Mower Deck - Housing, Covers, Spindles, & Blades Parts Diagram

  • Title

1

Ferris 5600076

DECK SHELL W/DECALS, 52", SIDE DISCHARGE

Note: (S/N: 2012612044 & Below)

$1909.99

$

Usually ships in 2-12 days

0

2

Ferris 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer Sold Seperately)

$231.99

$

Usually ships in 2-12 days

0

3

Ferris 5401254B

WELD, DISCHARGE BAFFLE, 52" - RED
(Superseded to 5401254BFS)

Note: (S/N: 2012612044 & Below)

$48.99

$

In Stock, only 2 left!

0

4

Ferris 5402362A

SUPPORT, DISCHARGE CHUTE, 44/48/52 - BLK
(Superseded to 5402362AFS)

$35.99

$

Usually ships in 2-12 days

0

5

Ferris 5402404

CHUTE, DISCHARGE, RUBBER, 44/48/52"
(Superseded to 5402404FS)

$148.99

$

Usually ships in 2-12 days

0

6

Ferris 5413404A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413404AAFS)

$50.99

$

In Stock, only 1 left!

0

7

Ferris 5021227

BLADE, 18.0
(Superseded to 5021227ASM)

Note: (Sold in sets of three. Use P/N 5021227S.)

$25.99

$

In Stock, only 1 left!

0

8

Ferris 5025477

WASHER, 5/8" GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 9

0

9

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GR8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5023156

BOLT, 5/16-18 X 1-1/4" FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

11

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

12

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

13

Ferris 5401605B

GUARD, 52" DECK, IS2000, LH - RED
(Superseded to 5401605BFS)

$27.99

$

In Stock, only 1 left!

0

14

Ferris 5401606B

GUARD, 52" DECK, IS2000, RH - RED

$22.99

$

Usually ships in 2-12 days

0

15

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

16

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

17

Ferris 5025145X6

CARRIAGE BOLT, 5/16-18 X 3/4
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

18

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5042555

ROD, BRAKE LINKAGE
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

20

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

21

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

22

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

23

Ferris 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

In Stock, only 1 left!

0

24

Ferris 5403548A

PLATE, DEFLECTOR, 52" - BLK

Note: (S/N: 2012612045 & Above)

$19.99

$

Usually ships in 2-12 days

0

25

Ferris 5600157

DECK SHELL W/DECALS, 52" SIDE DISCHARGE

Note: (S/N: 2012612045 & Above)

$2137.99

$

Usually ships in 2-12 days

0

26

Ferris 5600132

KIT, DISCHARGE CHUTE, 44/48/52

Note: (Includes Ref. # 4 - 6, 11 & 22)

$

$

Not available
