IS 2000Z (5900586) - Ferris IS2000Z Series 61" Zero-Turn Mower, 32hp Briggs & Stratton Deck Lift Group - Puller Bar (61" Models S/N: 2016364870 & Above) Parts Diagram

IS2000Z Series 61" Zero-Turn Mower, 32hp Briggs & Stratton

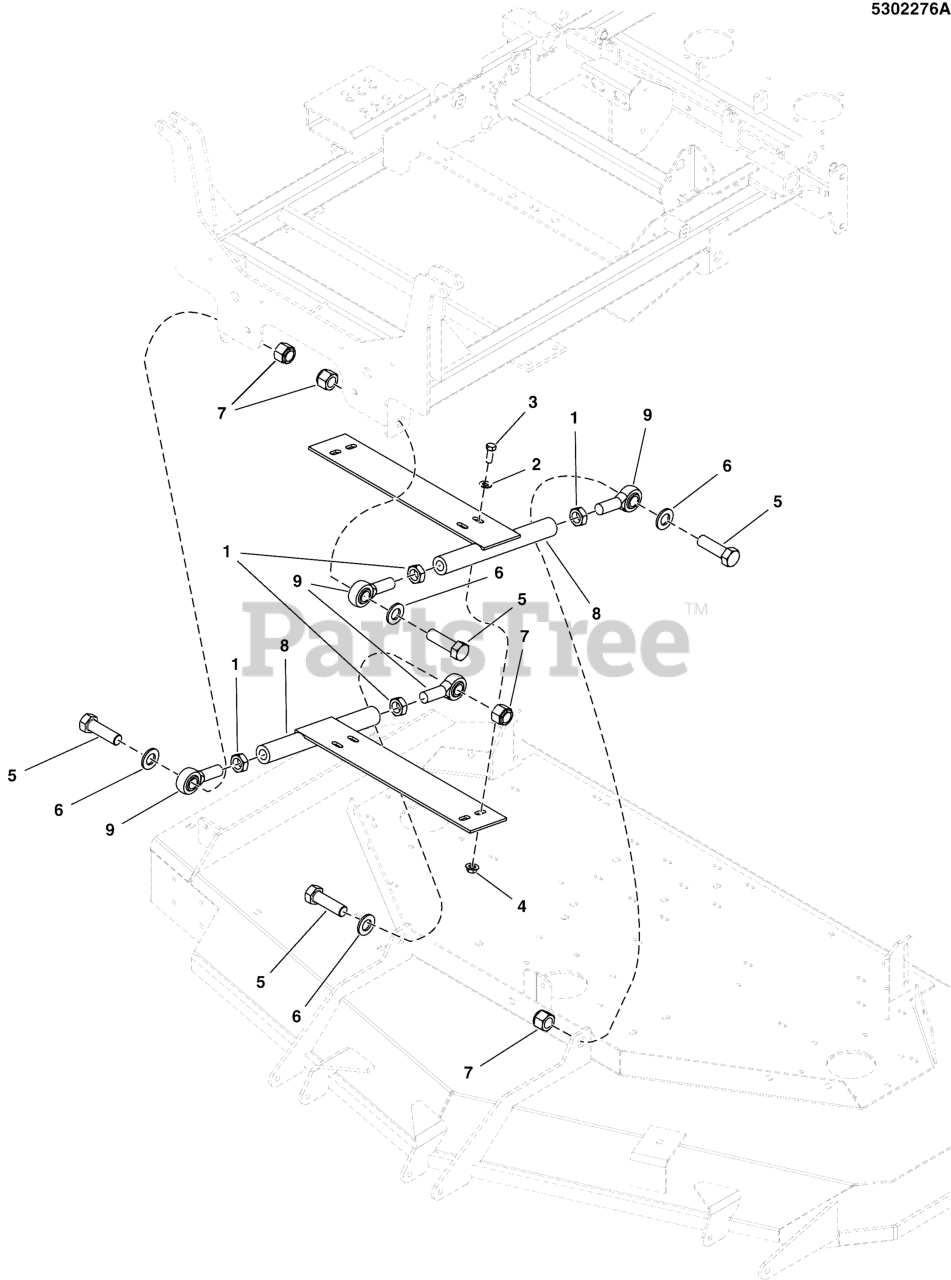

Deck Lift Group - Puller Bar (61" Models S/N: 2016364870 & Above) Parts Diagram

  • Title
1

Ferris 5025093

NUT, 3/4-16 HEX JAM
(Superseded to 5025093SM)

$4.49

$

In Stock, only 1 left!

0

2

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

3

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

4

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

5

Ferris 5025265X20

BOLT, 3/4-16 X 2-1/2 YZ GD8
(Superseded to 5025265X20YP)

$10.99

$

Usually ships in 2-12 days

0

6

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

In Stock, Qty 7

0

7

Ferris 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

$3.49

$

In Stock, only 3 left!

0

8

Ferris 5406832A

WELD, DECK STABILIZER, IS2500Z-246 - BLK
(Superseded to 5406832AA)

$160.99

$

In Stock, only 1 left!

0

9

Ferris 5022039

BALL JOINT, 3/4-16, MALE
(Superseded to 5022039SM)

$37.99

$

In Stock, Qty 13

0
