IS 2000Z (5900562) - Ferris IS2000Z Series 52" Zero-Turn Mower, 26hp Kawasaki Pump Drive Group Parts Diagram

IS2000Z Series 52" Zero-Turn Mower, 26hp Kawasaki

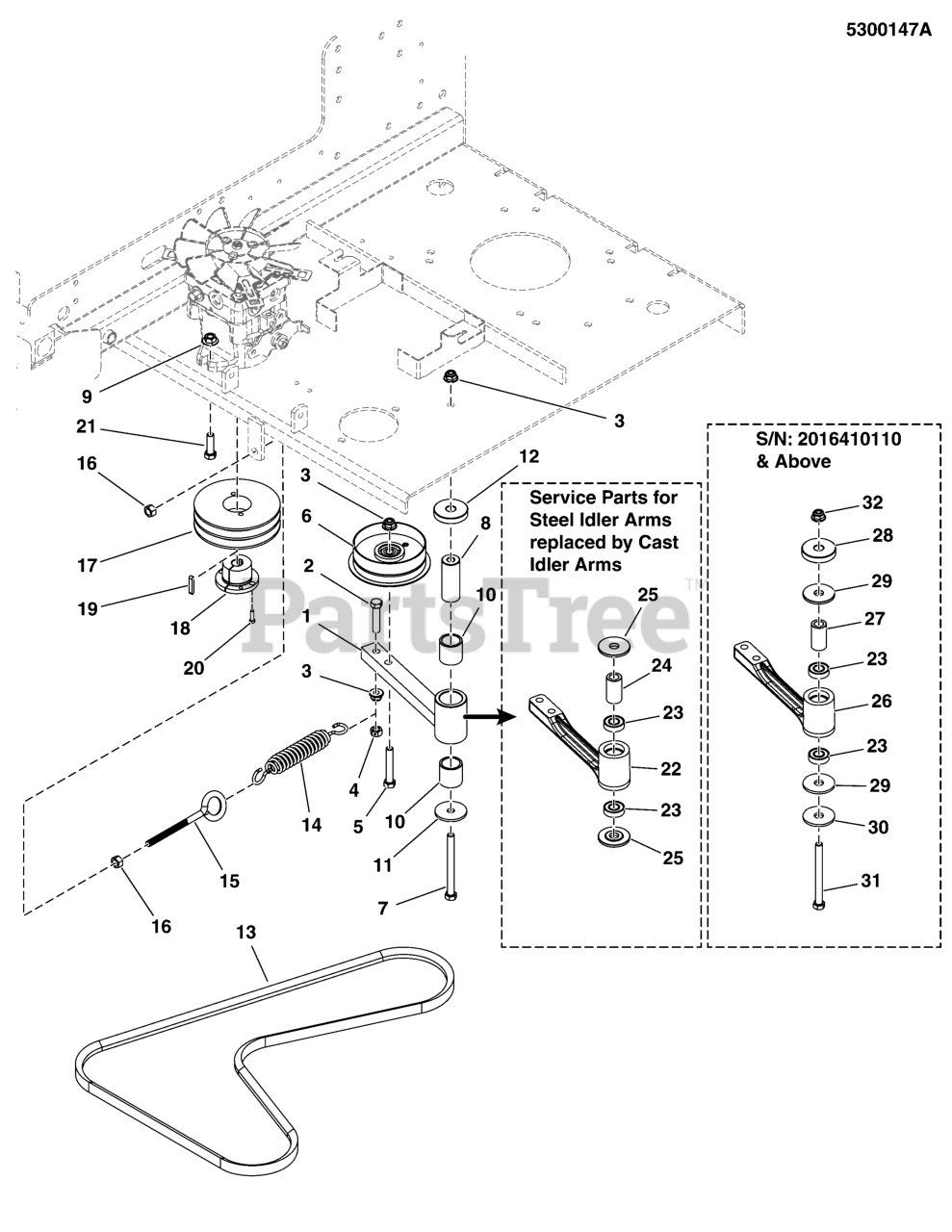

Pump Drive Group Parts Diagram

  • Title

1

NO LONGER AVAILBLE, USE ITEM # 22

Note: (S/N: 2016410109 & Below)

$

$

Not available

2

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

3

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

Note: (Qty: 2 - S/N: 2016410110 & Above)

$4.49

$

In Stock, Qty 20+

0

4

Ferris 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

5

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

Usually ships in 2-12 days

0

6

Ferris 5103808

PULLEY, SINGLE FLANGED, 4"ODX3/8"ID

$

$

Currently unavailable

7

Ferris 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

Note: (S/N: 2016410109 & Below)

$3.99

$

In Stock, Qty 11

0

8

Ferris 5102004

SPACER, .39 X 1.00 X 2.55, SS
(Superseded to 5102004YP)

Note: (S/N: 2016410109 & Below)

$27.99

$

In Stock, only 1 left!

0

9

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

10

Ferris 5022157

BUSHING, BRASS, 1.25X1X1.25
(Superseded to 5022157SM)

Note: (S/N: 2016410109 & Below)

$12.99

$

In Stock, only 2 left!

0

11

Ferris 5025305

WASHER, .41 X 1.75 X .14
(Superseded to 5025305SM)

Note: (S/N: 2016410109 & Below)

$3.99

$

In Stock, only 2 left!

0

12

Ferris 5045475

SPACER, .45 X 1.88 X .38
(Superseded to 5045475SM)

Note: (S/N: 2016410109 & Below)

$14.99

$

In Stock, only 1 left!

0

13

Ferris 5100555

BELT, BANDED A-SEC,64.76EL,POLY,RAW EDGE

$101.99

$

Usually ships in 2-12 days

0

14

Ferris 5022847

SPRING-EXT, 1.04 ODX6.935LGX.148WR, BLK
(Superseded to 5022847SM)

$34.99

$

In Stock, Qty 7

0

15

Ferris 5021812

EYE BOLT, 3/8-16 X 6, 3THRD, 1EYE, CZ
(Superseded to 5021812SM)

$5.99

$

In Stock, Qty 18

0

16

Ferris 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

17

Ferris 5022586

PULLEY, PUMP DRIVE
(Superseded to 5022586SM)

$121.99

$

In Stock, only 2 left!

0

18

Ferris 5022587

BUSHING, TAPERED HUB
(Superseded to 5022587SM)

$27.99

$

In Stock, only 1 left!

0

19

Ferris 5023254

KEY, 5MM SQ. W/ RADIUS
(Superseded to 5023254SM)

$4.49

$

In Stock, Qty 8

0

20

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

21

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

22

Ferris 5406895

ASSM, IDLER ARM, PUMP DRIVE, 3/8ID, CAST

Note: (SV)(Includes items # 23 - 25)(5101178A)

$171.99

$

Usually ships in 2-12 days

0

23

Ferris 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 18

0

24

Ferris 5102580

SPACER, .39 X .88 X 1.53, CZ
(Superseded to 5102580YP)

$11.99

$

Usually ships in 2-12 days

0

25

Ferris 5102579

SPACER, IDLER ARM, T-STYLE, CZ
(Superseded to 5102579YP)

$20.99

$

Usually ships in 2-12 days

0

26

Ferris 5411066

ASSM, IDLER ARM, PUMP DRIVE, 1/2ID, CAST

Note: (SV)(S/N: 2016410110 & Above)(5101178A)

$130.99

$

Usually ships in 2-12 days

0

27

Ferris 5103812

SPACER, .52 X .84 X 1.53, PM
(Superseded to 5103812YP)

Note: (S/N: 2016410110 & Above)

$7.99

$

In Stock, Qty 7

0

28

Ferris 5103363

SPACER, .52 X 1.88 X .38
(Superseded to 5103363FS)

Note: (S/N: 2016410110 & Above)

$12.99

$

Usually ships in 2-12 days

0

29

Ferris 5103262

SPACER, IDLER ARM, 1/2, PM
(Superseded to 5103262YP)

Note: (S/N: 2016410110 & Above)

$7.99

$

In Stock, Qty 15

0

30

Ferris 5103282

WASHER, .52 X 1.75 X .14, CZ
(Superseded to 5103282YP)

Note: (S/N: 2016410110 & Above)

$3.99

$

In Stock, only 1 left!

0

31

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

Note: (S/N: 2016410110 & Above)

$6.49

$

In Stock, only 4 left!

0

32

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

Note: (S/N: 2016410110 & Above)

$3.49

$

In Stock, Qty 20+

0
