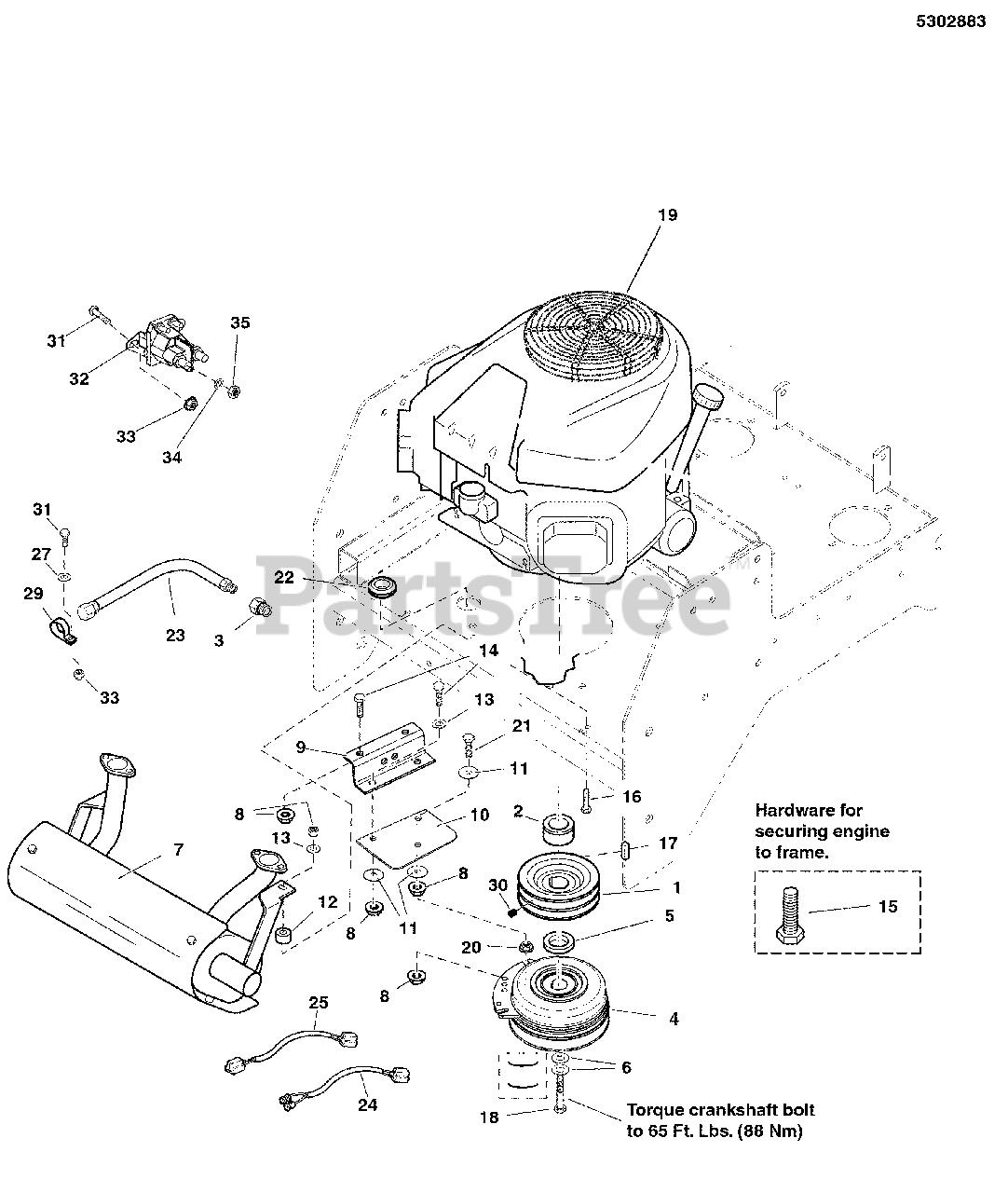

IS 2000Z (5900562) - Ferris IS2000Z Series 52" Zero-Turn Mower, 26hp Kawasaki Engine & PTO Group - Kawasaki Parts Diagram

IS2000Z Series 52" Zero-Turn Mower, 26hp Kawasaki

Engine & PTO Group - Kawasaki Parts Diagram

  • Title

1

Ferris 5047075

PULLEY, CRANKSHAFT, 1.126 ID X 4.75 OD

$128.99

$

Usually ships in 2-12 days

0

2

Ferris 5047033

SPACER, 1.13 X 1.75 X 1.03, CZ
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

3

Ferris 5022234

ADAPTER, Oil Drain
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

4

Ferris 5105090

CLUTCH WARNER 200 FT-LB 1.13 X 6.323
(Superseded to 5105090YP)

$456.99

$

In Stock, only 3 left!

0

5

Ferris 5100456

SPACER, 1.13 X 1.75 X .375

$

$

Currently unavailable

6

Ferris 5025585

BELLEVILLE WASHER, 1.1875 X .442 X .098
(Superseded to 5025585YP)

Note: (S/N: 2015745414 & Above)

$4.49

$

In Stock, only 4 left!

0

7

Ferris 5105069

MUFFLER, 27HP KAWASAKI, 5" CAN
(Superseded to 5105069YP)

Note: (Replacement Muffler does not require components to secure muffler to engine deck)

$287.99

$

Usually ships in 2-12 days

0

8

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

10

Ferris 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

11

Ferris 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

12

Ferris 5046446

SPACER, .39 X 1.00 X .80, CZ
(Superseded to 5046446SM)

$7.49

$

In Stock, only 1 left!

0

13

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

15

Ferris 5025532

BOLT, HEX FLG, SER, GD5 3/8-16 X 1-1/4" PACH CZ
(Superseded to 84003591)

$3.49

$

In Stock, only 4 left!

0

16

Ferris 5025011X14

BOLT, 5/16-18 X 1-3/4" GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

17

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

18

Ferris 5102864

BOLT, CRANKSHAFT,7/16-20X2-1/2, GD8
(Superseded to 5102864YP)

$5.49

$

In Stock, only 1 left!

0

19

ENGINE, KAWASAKI

Note: (Includes Ref Nos. 24 - 29 & 31 - 35)

$

$

Not available

20

Ferris 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

21

Ferris 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

22

Ferris 5021379

GROMMET, 7/8"
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

23

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

24

Ferris 5600575

KIT, CLUTCH WIRE REPAIR

Note: S/N: 2013971469 & Below / 2015375706 & Above

$66.99

$

Usually ships in 2-12 days

0

25

Ferris 5403576

WIRE HARNESS, JUMPER, WARNER CLUTCH (SV)
(Superseded to 5403576YP)

Note: (S/N: 2013971470 - 2015375705)

$65.99

$

Usually ships in 2-12 days

0

26

Ferris 5104348

EXTENSION, TAILPIPE, 3" - BLACK
(Superseded to 5104348YP)

Note: (Not Shown)

$14.99

$

Usually ships in 2-12 days

0

27

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

28

Ferris 5101492

TIE,SELF-LOCKING, 24"
(Superseded to 5101492YP)

Note: (Not Shown)

$3.49

$

Usually ships in 2-12 days

0

29

Ferris 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

30

Ferris 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

In Stock, Qty 12

0

31

Ferris 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

32

Ferris 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

33

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

34

Ferris 5023217

WASHER, Light Lock, 5/16
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

35

Ferris 5023216

NUT, Hex Jam, 5/16-24
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0
