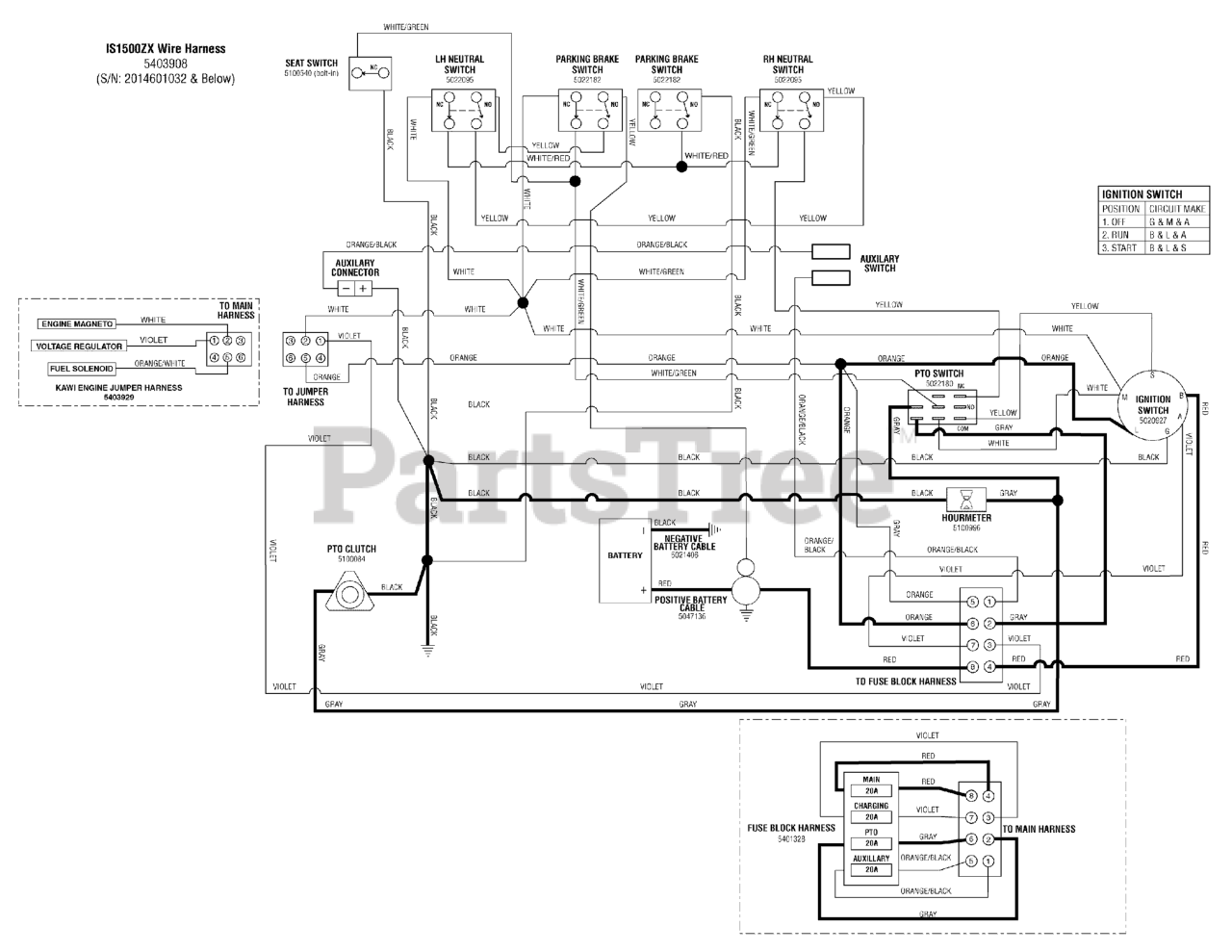

IS 1500ZX (5900902) - Ferris IS1500ZX Series 61" Zero-Turn Mower, 26hp Kawasaki Electrical Schematic - PTO Clutch Circuit 26HP FX Kawasaki (S/N: 2014601032 & Below) Parts Diagram

IS1500ZX Series 61" Zero-Turn Mower, 26hp Kawasaki
