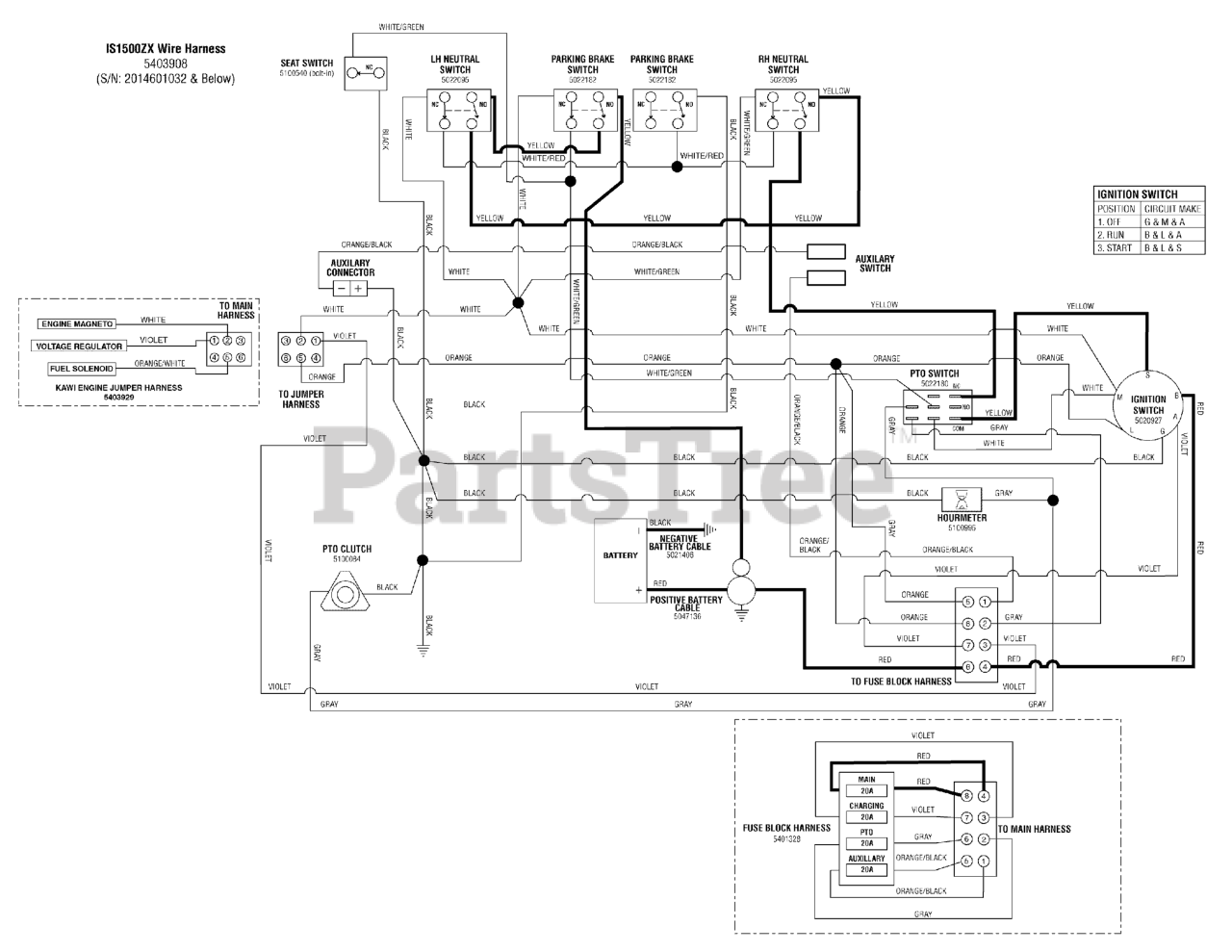

IS 1500ZX (5900902) - Ferris IS1500ZX Series 61" Zero-Turn Mower, 26hp Kawasaki Electrical Schematic - Cranking Circuit - Kawasaki FX - S/N: 2014601032 & Below Parts Diagram

IS1500ZX Series 61" Zero-Turn Mower, 26hp Kawasaki
