IS 1500ZX (5900822) - Ferris IS1500ZX Series 61" Zero-Turn Mower, 28hp Briggs & Stratton Deck Lift Group (61" Models) Parts Diagram

IS1500ZX Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

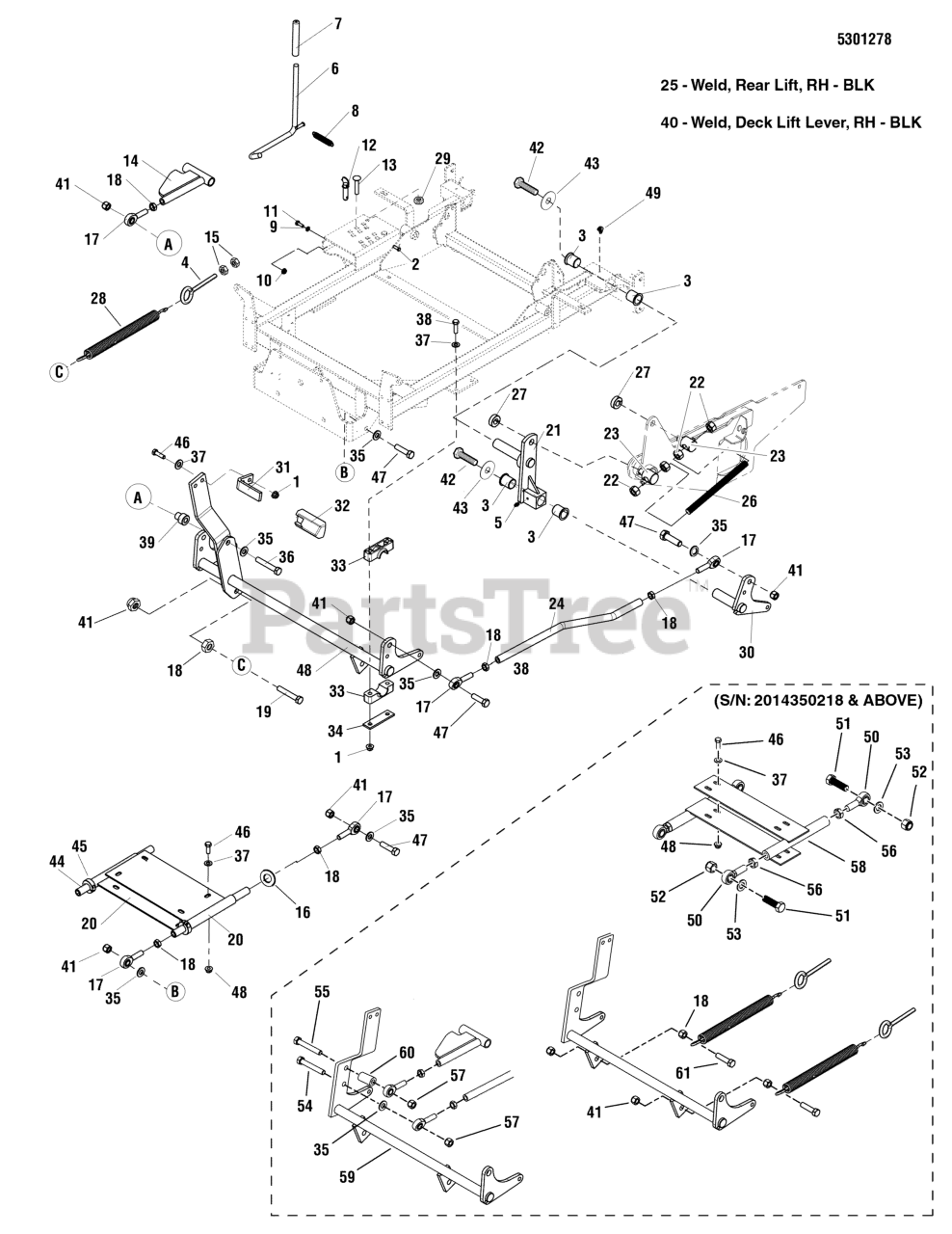

Deck Lift Group (61" Models) Parts Diagram

  • Title

1

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

2

Ferris 5025212X4

CLEVIS PIN, 1/4 X 1/2, YZ
(Superseded to 5025212X4SM)

$3.99

$

Usually ships in 2-12 days

0

3

Ferris 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

$6.49

$

Usually ships in 2-12 days

0

4

Ferris 5021812

EYE BOLT, 3/8-16 X 4-1/4, 1 EYE
(Superseded to 5021812SM)

$5.99

$

In Stock, Qty 18

0

5

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

6

Ferris 5400719A

WELD, ROD DECK LIFT - BLK

$

$

Currently unavailable

7

Ferris 5021880

GRIP, FOAM
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

8

Ferris 5020639

SPRING, EXTENSION
(Superseded to 5020639SM)

$31.99

$

Usually ships in 2-12 days

0

9

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

10

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

11

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5023498

PIN, HITCH, 1/2 X 2.00 OAL, YP
(Superseded to 5023498SM)

$8.99

$

In Stock, only 2 left!

0

13

Ferris 5025146X16

BOLT, 3/8-16 X 2, CARRIAGE
(Superseded to 5025146X16SM)

$4.49

$

In Stock, only 1 left!

0

14

Ferris 5400769B

WELD, DECK ADJUST LINK - RED

$45.99

$

Usually ships in 2-12 days

0

15

Ferris 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

16

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

Note: (S/N: 2014350217 & BELOW)

$3.99

$

In Stock, Qty 13

0

17

Ferris 5022434

BALL JOINT, 1/2-20, MALE
(Superseded to 5022434SM)

Note: (S/N: 2014350218 & ABOVE USE QTY. 5)

$42.99

$

In Stock, only 2 left!

0

18

Ferris 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

Note: (S/N: 2014350218 & ABOVE USE QTY. 9)

$3.99

$

In Stock, Qty 19

0

19

Ferris 5025017X18

BOLT, 1/2-13 X 2-1/4" GD5 CZ
(Superseded to 5025017X18SM)

$5.99

$

Usually ships in 2-12 days

0

20

Ferris 5400647A

WELD, DECK STABILIZER - BLK

Note: (S/N: 2014350217 & BELOW)

$

$

Currently unavailable

21

Ferris 5401664A

WELD, REAR LIFT, LH - BLK
(Superseded to 5105172)

$84.99

$

Usually ships in 2-12 days

0

22

Ferris 5025040

NUT, 5/8-11 HEX
(Superseded to 5025040SM)

$3.49

$

In Stock, Qty 6

0

23

Ferris 5045447

PIVOT, SPRING ROD
(Superseded to 5045447SM)

$25.99

$

Usually ships in 2-12 days

0

24

Ferris 5100149

ROD, DECK LIFT BENT

$

$

Currently unavailable

25

Ferris 5401665A

WELD, REAR LIFT, RH - BLK
(Superseded to 5105173)

Note: (NOT SHOWN)

$77.99

$

Usually ships in 2-12 days

0

26

Ferris 5100247

ROD, 5/8-11 X 9.00
(Superseded to 5100247SM)

$14.99

$

Usually ships in 2-12 days

0

27

Ferris 5020441

COLLAR, 5/8 SPLIT
(Superseded to 5020441SM)

$14.99

$

In Stock, Qty 20+

0

28

Ferris 5023355

SPRING, DECK LIFT ASSIST
(Superseded to 5023355SM)

$49.99

$

In Stock, only 1 left!

0

29

Ferris 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

30

Ferris 5401671A

WELD, DECK LIFT LEVER, LH - BLK
(Superseded to 5401671AYP)

$61.99

$

Usually ships in 2-12 days

0

31

Ferris 5061569A

PEDAL, FOOT - BLK
(Superseded to 5061569AA)

$40.99

$

Usually ships in 2-12 days

0

32

Ferris 5104262

PEDAL, Rubber
(Superseded to 5104262YP)

$10.99

$

In Stock, only 1 left!

0

33

Ferris 5100634

PIVOT BLOCK, PLASTIC
(Superseded to 5100634SM)

$7.49

$

Usually ships in 2-12 days

0

34

Ferris 5403925A

PLATE, PIVOT BLOCK SUPPORT - BLK
(Superseded to 5403925AAFS)

$3.49

$

Usually ships in 2-12 days

0

35

Ferris 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

Note: (S/N: 2014350218 & ABOVE USE QTY. 5)

$4.49

$

In Stock, only 1 left!

0

36

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 4 left!

0

37

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

38

Ferris 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

39

Ferris 5047103

ADAPTER, CASTER AXLE, CZ
(Superseded to 5047103SM)

Note: (S/N: 2014350217 & BELOW)(2 per tire)

$10.99

$

In Stock, Qty 20+

0

40

Ferris 5401672A

WELD, DECK LIFT LEVER, RH - BLK
(Superseded to 5401672AYP)

Note: (NOT SHOWN)

$67.99

$

Usually ships in 2-12 days

0

41

Ferris 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

Note: (S/N: 2014350218 & ABOVE USE QTY. 7)

$5.99

$

In Stock, only 2 left!

0

42

Ferris 5025443

BOLT, 3/8-16 X 3/4, PLT W/PATCH
(Superseded to 5025443SM)

$3.49

$

Usually ships in 2-12 days

0

43

Ferris 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

44

Ferris 5049868

SHAFT, DECK STABILIZER
(Superseded to 5049868SM)

Note: (S/N: 2014350217 & BELOW)

$37.99

$

Usually ships in 2-12 days

0

45

Ferris 5010114

COLLAR, 3/4 SPLIT
(Superseded to 5010114SM)

Note: (S/N: 2014350217 & BELOW)

$19.99

$

Usually ships in 2-12 days

0

46

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 1 left!

0

47

Ferris 5025018X14

BOLT, 1/2-20 X 1-3/4" GD8 CZ
(Superseded to 5025018X14FS)

Note: (S/N: 2014350218 & ABOVE USE QTY. 4)

$2.99

$

Usually ships in 2-12 days

0

48

Ferris 5403949B

WELD, DECK LIFT SHAFT - RED

Note: (S/N: 2014350217 & BELOW)

$

$

Currently unavailable

49

Ferris 5025447

GREASE FITTING, 1/4-28, 90 DEGREE
(Superseded to 5025447FS)

$3.99

$

Usually ships in 2-12 days

0

50

Ferris 5022039

BALL JOINT, 3/4-16, MALE
(Superseded to 5022039SM)

Note: (S/N: 2014350218 & ABOVE)

$37.99

$

In Stock, Qty 13

0

51

Ferris 5025265X20

BOLT, 3/4-16 X 2-1/2 YZ GD5
(Superseded to 5025265X20YP)

Note: (S/N: 2014350218 & ABOVE)

$10.99

$

Usually ships in 2-12 days

0

52

Ferris 5025284

NUT, 3/4-16 HEX NYLON LOCK
(Superseded to 5025284SM)

Note: (S/N: 2014350218 & ABOVE)

$3.49

$

In Stock, only 3 left!

0

53

Ferris 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

Note: (S/N: 2014350218 & ABOVE)

$3.99

$

In Stock, Qty 7

0

54

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

Note: (S/N: 2014350218 & ABOVE)

$5.99

$

In Stock, only 4 left!

0

55

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

Note: (S/N: 2014350218 & ABOVE)

$6.49

$

In Stock, only 4 left!

0

56

Ferris 5025093

NUT, 3/4-16 HEX JAM
(Superseded to 5025093SM)

Note: (S/N: 2014350218 & ABOVE)

$4.49

$

In Stock, only 1 left!

0

57

Ferris 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

Note: (S/N: 2014350218 & ABOVE)

$3.49

$

In Stock, Qty 12

0

58

Ferris 5407033A

WELD, DECK STABILIZER, IS1500ZX - BLK

Note: (S/N: 2014350218 & ABOVE)

$216.99

$

Usually ships in 2-12 days

0

59

Ferris 5406927B

WELD, DECK LIFT SHAFT - RED

Note: (S/N: 2014350218 & ABOVE)

$159.99

$

Usually ships in 2-12 days

0

60

Ferris 5045176

SPACER, .52 X 1.00 X 1.75

Note: (S/N: 2014350218 & ABOVE)

$

$

Currently unavailable

61

Ferris 5025017X16

BOLT, 1/2-13 X 2" GD5 CZ
(Superseded to 5025017X16YP)

Note: (S/N: 2014350218 & ABOVE)

$4.49

$

In Stock, only 1 left!

0
