IS 1500ZX (5900822) - Ferris IS1500ZX Series 61" Zero-Turn Mower, 28hp Briggs & Stratton 61" Mower Deck - Housing, Covers & Spindles Parts Diagram

IS1500ZX Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

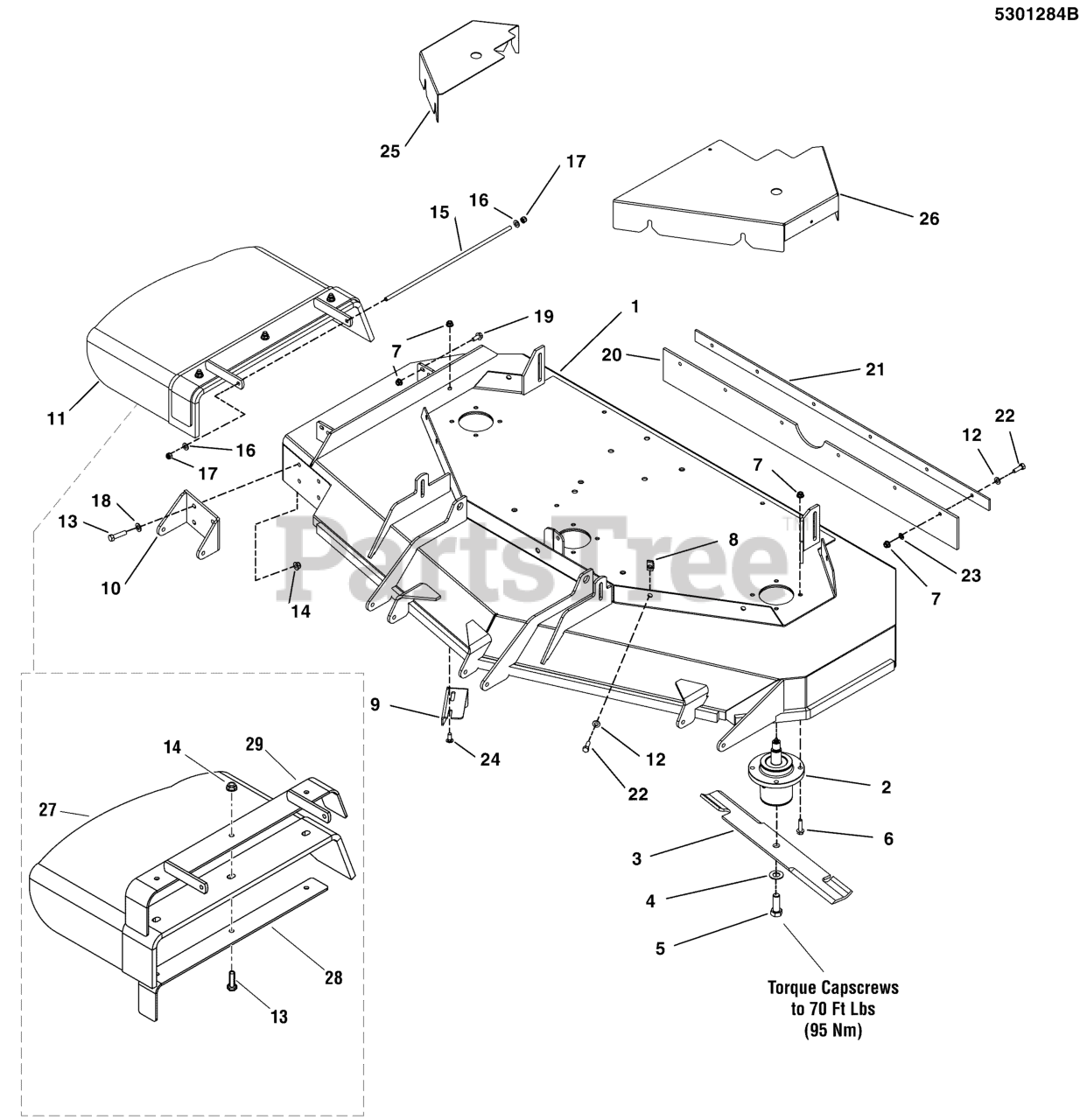

61" Mower Deck - Housing, Covers & Spindles Parts Diagram

  • Title

1

Ferris 5600437

DECK SHELL W/ DECALS, IS1500ZX 61

Note: (S/N: 2014350218 & ABOVE)

$2023.99

$

Usually ships in 2-12 days

0

1

Ferris 5600295

DECK SHELL W/ DECALS, IS1500ZX 61

Note: (S/N: 2014350217 & BELOW)

$1994.99

$

Usually ships in 2-12 days

0

2

Ferris 5061095

SPINDLE, ASSM, ALUMINUM - 5.25
(Superseded to 5061095FS)

Note: (Nut and Washer Sold Seperately)

$231.99

$

Usually ships in 2-12 days

0

3

Ferris 5101755S

BLADE SET, 61 DECK (3)

Note: (SV)(Set of 3 blades)

$

$

Not available

4

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, only 4 left!

0

5

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5023156X12

BOLT, 5/16-18 X 1-1/4" FLANGE

$

$

Currently unavailable

7

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

9

Ferris 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0

10

Ferris 5408810B

PLATE, BRACKET, ANTI SCALP, RH - 61 -RED
(Superseded to 5408810BFS)

$46.99

$

Usually ships in 2-12 days

0

11

PURCHASE INDIVIDUAL REPLACEMENT PARTS

$

$

Not available

12

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

13

Ferris 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

14

Ferris 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

15

Ferris 5061300

ROD, MOUNT, CHUTE, 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

16

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

17

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

18

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 7

0

20

Ferris 5102036

FLAP, STRIPER, 61 DECK
(Superseded to 5102036YP)

$90.99

$

Usually ships in 2-12 days

0

21

Ferris 5405322A

PLATE, SUPPORT - BLK
(Superseded to 5405322AYP)

$39.99

$

Usually ships in 2-12 days

0

22

Ferris 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

23

Ferris 5025498

5/16" PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

24

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

25

Ferris 5400791B

GUARD, 61", RH - RED
(Superseded to 5400791BFS)

$39.99

$

Usually ships in 2-12 days

0

26

Ferris 5061451B

GUARD, 61, LH - RED

$67.99

$

In Stock, only 1 left!

0

27

Ferris 5404834

CHUTE, DISCHARGE, BEND RUBBER (SV)

$

$

Currently unavailable

28

Ferris 5408018A

SUPPORT, DISCHARGE CHUTE, 61/72 - BLK
(Superseded to 5408018AFS)

$22.99

$

Usually ships in 2-12 days

0

29

Ferris 5404716A

WELD, FRAME CHUTE, 61 - BLK
(Superseded to 5404716AYP)

$100.99

$

Usually ships in 2-12 days

0
