IS 1500ZX (5900761) - Ferris IS1500ZX Series 61" Zero-Turn Mower, 28hp Briggs & Stratton Rear Bumper, Roll Bar & Seat Belt Group Parts Diagram

IS1500ZX Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

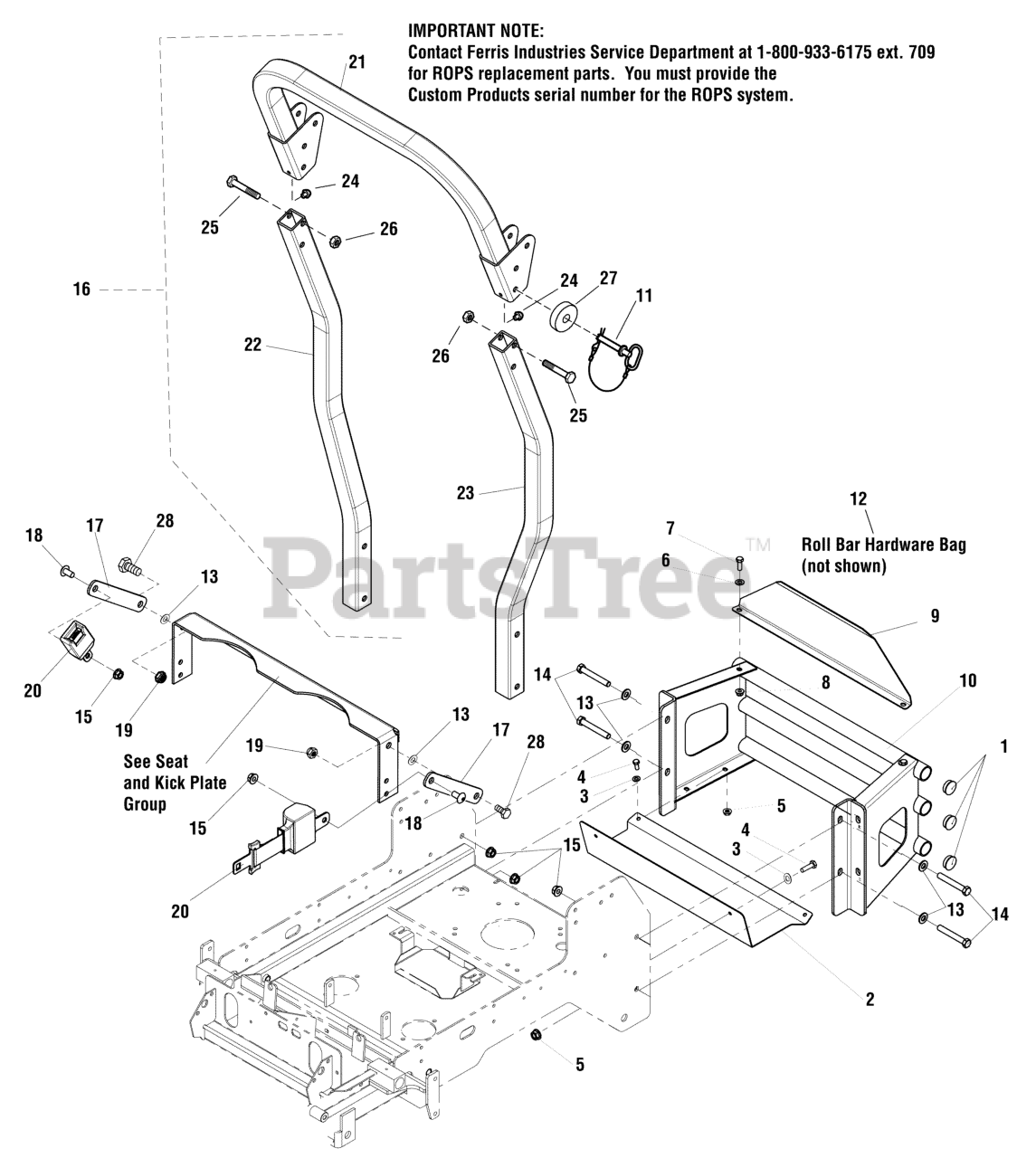

Rear Bumper, Roll Bar & Seat Belt Group Parts Diagram

  • Title

1

Ferris 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, Qty 20+

0

2

Ferris 5402183B

PLATE, HEAT SHIELD - RED

$38.99

$

Usually ships in 2-12 days

0

3

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

5

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

8

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

9

Ferris 5400681B

PLATE, CARB PROTECTOR - RED

$21.99

$

Usually ships in 2-12 days

0

10

Ferris 5403269B

WELD, BUMPER, IS2000Z - RED

$296.99

$

Usually ships in 2-12 days

0

11

Ferris 5100079

PIN, HINGE W/ LANYARD
(Superseded to 5100079SM)

$35.99

$

Usually ships in 2-12 days

0

12

Ferris 5100377

HARDWARE BAG, IS1500Z/1S2000Z

$

$

Currently unavailable

13

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0

14

Ferris 5025017X26

BOLT, 1/2-13 X 3-1/4, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X26SM)

$5.49

$

In Stock, only 2 left!

0

15

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

16

ROPS (Call 1-800-933-6175 ext. 2193 if replacing a ROPS)

$

$

Not available

17

Ferris 5410295A

PLATE, SEAT BELT ANCHOR - BLK
(Superseded to 5410295AYP)

$7.49

$

Usually ships in 2-12 days

0

18

Ferris 5100267

SCREW, 1/2-13 X 1.00, SHCS
(Superseded to 5100267SM)

$3.49

$

Usually ships in 2-12 days

0

19

Ferris 5025056

NUT, 1/2-13 HEX NYLON LOCK
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

20

Ferris 5100139

SEAT BELT, RETRACTING - ASSM
(Superseded to 5100139SM)

$103.99

$

Usually ships in 2-12 days

0

21

ROLL BAR TOP LOOP

$

$

Not available

22

ROLL BAR POST, RH

$

$

Not available

23

ROLL BAR POST, LH

$

$

Not available

24

Ferris 5100383

BUMPER, ROPS
(Superseded to 5100383SM)

$3.99

$

In Stock, only 2 left!

0

25

* BOLT

$

$

Not available

26

* NUT

$

$

Not available

27

Ferris 5100545

WASHER, EPDM FOAM, 1/2" ID

$

$

Currently unavailable

28

Ferris 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0
