IS 1500ZX (5900751) - Ferris IS1500ZX Series 61" Zero-Turn Mower, 28hp Briggs & Stratton Pump Drive Group Parts Diagram

IS1500ZX Series 61" Zero-Turn Mower, 28hp Briggs & Stratton

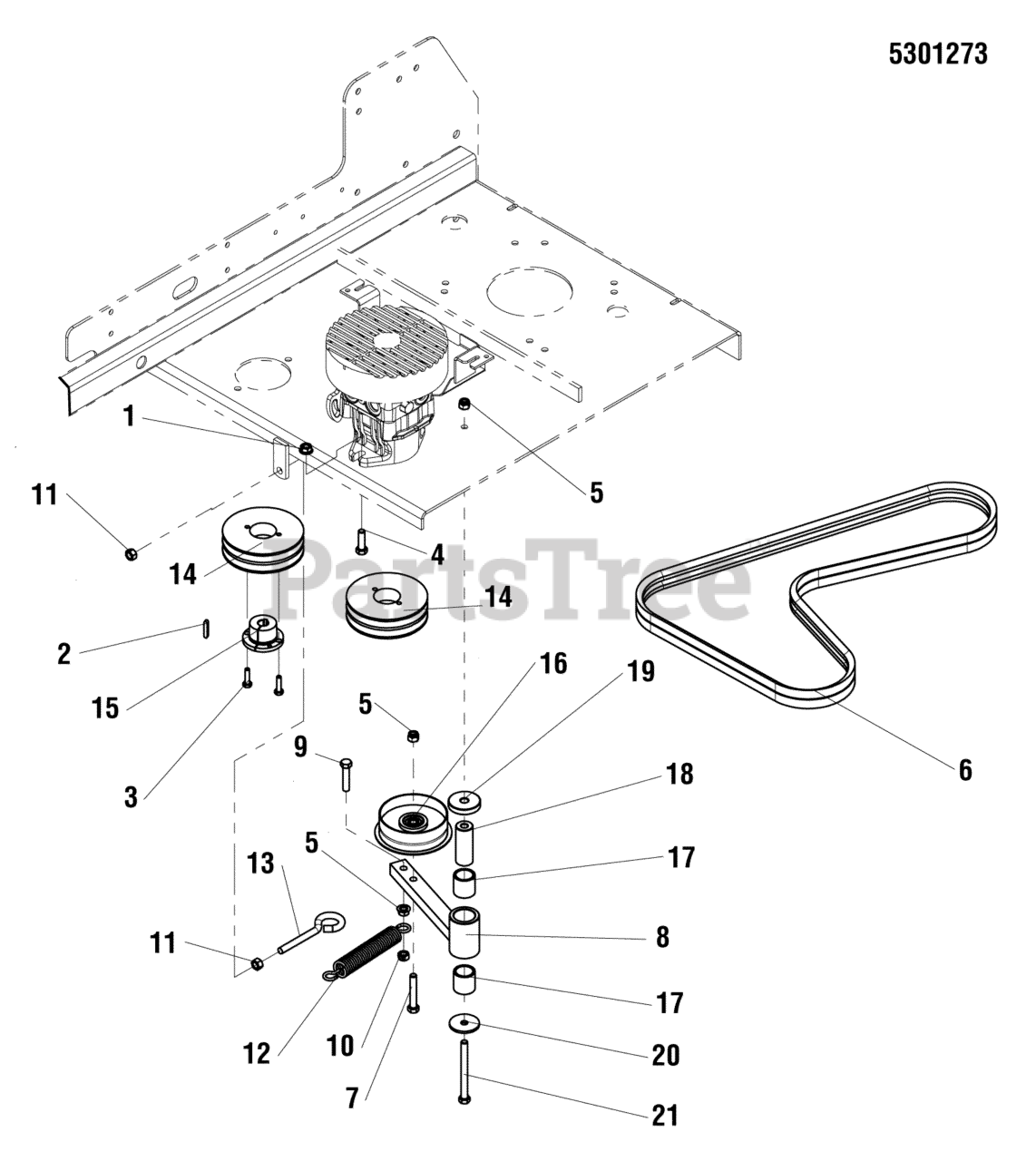

Pump Drive Group Parts Diagram

  • Title
1

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

2

Ferris 5023254

KEY, 5MM SQ. W/ RADIUS
(Superseded to 5023254SM)

$4.49

$

In Stock, Qty 8

0

3

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0

4

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

5

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

6

Ferris 5100555

BELT, BANDED A-SEC,64.76EL,POLY,RAW EDGE

$101.99

$

Usually ships in 2-12 days

0

7

Ferris 5025013X18

BOLT, 3/8-16 X 2-1/4" GD5 CZ
(Superseded to 5025013X18SM)

$3.99

$

In Stock, only 3 left!

0

8

Ferris 5046430A

WELD, ARM, PUMP DRIVE IDLER - BLK
(Superseded to 5046430AYP)

$75.99

$

Usually ships in 2-12 days

0

9

Ferris 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

10

Ferris 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

11

Ferris 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

12

Ferris 5022847

SPRING, EXTENSION, SWIVEL END
(Superseded to 5022847SM)

$34.99

$

In Stock, Qty 7

0

13

Ferris 5021812

EYE BOLT, 3/8-16 X 4-1/4, 1 EYE
(Superseded to 5021812SM)

$5.99

$

In Stock, Qty 18

0

14

Ferris 5022586

PULLEY, PUMP DRIVE
(Superseded to 5022586SM)

$121.99

$

In Stock, only 2 left!

0

15

Ferris 5022587

BUSHING, TAPERED HUB
(Superseded to 5022587SM)

$27.99

$

In Stock, only 1 left!

0

16

Ferris 5103808

PULLEY, IDLER, SINGLE FLANGE

$

$

Currently unavailable

17

Ferris 5022157

BUSHING, BRASS, 1.25X1X1.25
(Superseded to 5022157SM)

$12.99

$

In Stock, only 2 left!

0

18

Ferris 5102004

SPACER, .39 X 1.000 X 2.55, SS
(Superseded to 5102004YP)

$27.99

$

In Stock, only 1 left!

0

19

Ferris 5045475

SPACER, .45 X 1.88 X .38
(Superseded to 5045475SM)

$14.99

$

In Stock, only 1 left!

0

20

Ferris 5025305

WASHER, .41 X 1.75 X .14
(Superseded to 5025305SM)

$3.99

$

In Stock, only 3 left!

0

21

Ferris 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, Qty 11

0
