IS 1500ZX (5900590) - Ferris IS1500ZX Series 52" Zero-Turn Mower, 26hp Briggs & Stratton Instrument Control Panel Group Parts Diagram

IS1500ZX Series 52" Zero-Turn Mower, 26hp Briggs & Stratton

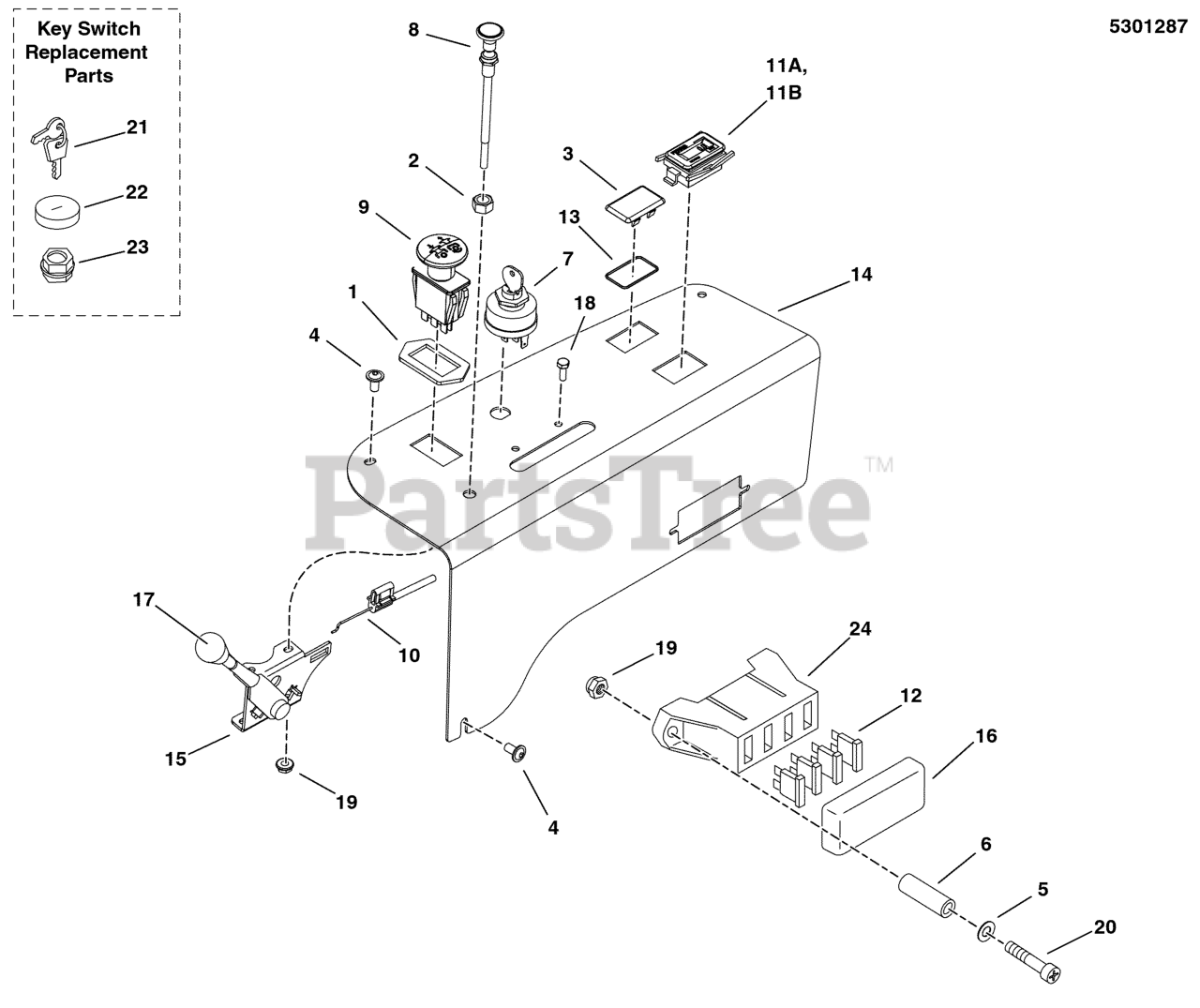

Instrument Control Panel Group Parts Diagram

  • Title

1

Ferris 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

2

Ferris 5025309

NUT, 3/8-24 Hex Jam
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

3

Ferris 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

4

Ferris 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.49

$

In Stock, Qty 15

0

5

Ferris 5023499

WASHER, #10 SAE
(Superseded to 5023499SM)

$3.49

$

Usually ships in 2-12 days

0

6

Ferris 5061763

SPACER, .20 X .38 X 1.25
(Superseded to 5061763FS)

$5.99

$

Usually ships in 2-12 days

0

7

Ferris 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, only 3 left!

0

8

Ferris 5047779

CABLE, CHOKE CONTROL, 51" (Z)
(Superseded to 5047779SM)

$52.99

$

In Stock, only 4 left!

0

9

Ferris 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

10

Ferris 5101076

CABLE, THROTTLE 47"
(Superseded to 5101076SM)

$35.99

$

In Stock, only 1 left!

0

11A

HOUR METER, ASSEMBLE

Note: (*See Footnote) (S/N: 2015551938)

$

$

Not available

11B

Ferris 5102417

HOUR METER

Note: (S/N: 2015551937 & Below)

$64.99

$

Usually ships in 2-12 days

0

12

Ferris 5021603

FUSE, ATO-20 (20 AMP)(SV)
(Superseded to 5021603SM)

$4.99

$

In Stock, only 2 left!

0

13

Ferris 5022269

O-RING, 7/8" ID X 1/16" W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

14

Ferris 5403402A

PLATE, CONTROL PANEL - BLK

$

$

Currently unavailable

15

Ferris 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

$48.99

$

In Stock, only 1 left!

0

16

Ferris 5022805

COVER, VINYL, FUSE BLOCK
(Superseded to 5022805SM)

$6.49

$

Usually ships in 2-12 days

0

17

Ferris 5046360X1

THROTTLE CONTROL HANDLE/KNOB
(Superseded to 5046360X1SM)

Note: (SV)

$10.99

$

In Stock, only 1 left!

0

18

Ferris 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

19

Ferris 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

20

Ferris 5025270X16

SCREW, #10-24 X 2" ROUND PHILLIPS

$

$

Currently unavailable

21

Ferris 5022789

KEY, IGNITION MOLDED SET

Note: (SV)

$

$

Currently unavailable

22

Ferris 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

Note: (SV)

$4.49

$

In Stock, only 1 left!

0

23

Ferris 5022791

PLASTIC NUT
(Superseded to 5022791SM)

Note: (SV)

$3.49

$

In Stock, only 1 left!

0

24

Ferris 5021518

FUSE, BLOCK (SV)
(Superseded to 5021518SM)

Note: (SV)

$11.99

$

In Stock, only 1 left!

0
